ROBOTIQ HAND-E - 3.2. Required Tools and Equipment

Robotiq Hand-E Gripper - Instruction Manual
3.4. Mechanical Installation
3.4.1. Installing the fingers/fingertips/holders on the Gripper
The figures below list the material and tools needed to mount fingers or fingertips/holders onto the racks of the Hand-E Gripper.

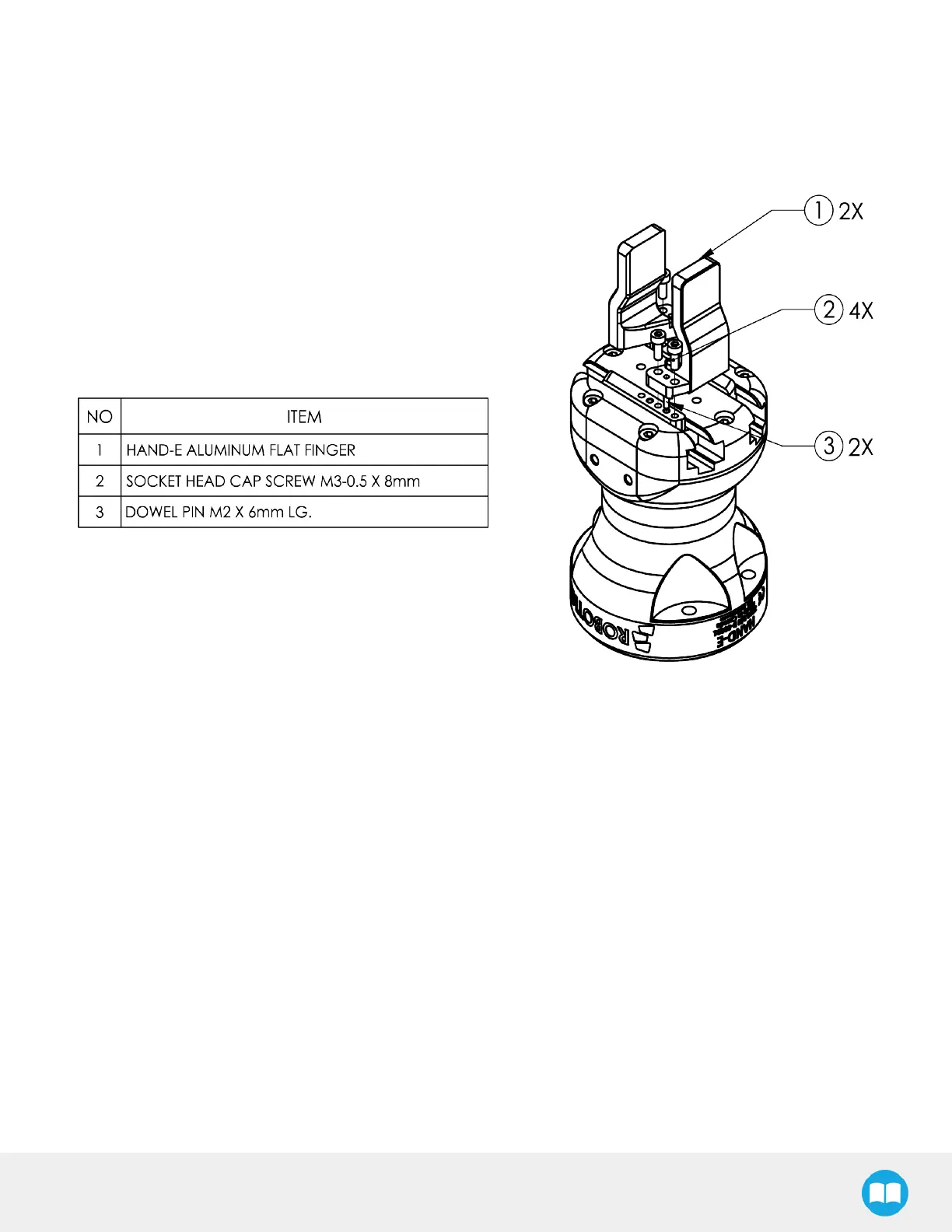

Fig. 3-1: Mounting the fingers on the racks
18
