6.1.1. Couplings
Hand-E requires a coupling provided by Robotiq to operate. The coupling is mandatory since it integrates electronics and electrical
contacts.
Blank coupling
Below are the dimensions of the blank coupling, AGC-CPL-BLANK-002 (please refer to the Spare Parts, Kits and Accessories section),
available to create a custom bolt pattern. The blue section can be fully customized (holes can be placed in any part of this section) while
the grey section can only be worked to a depth of3mm.

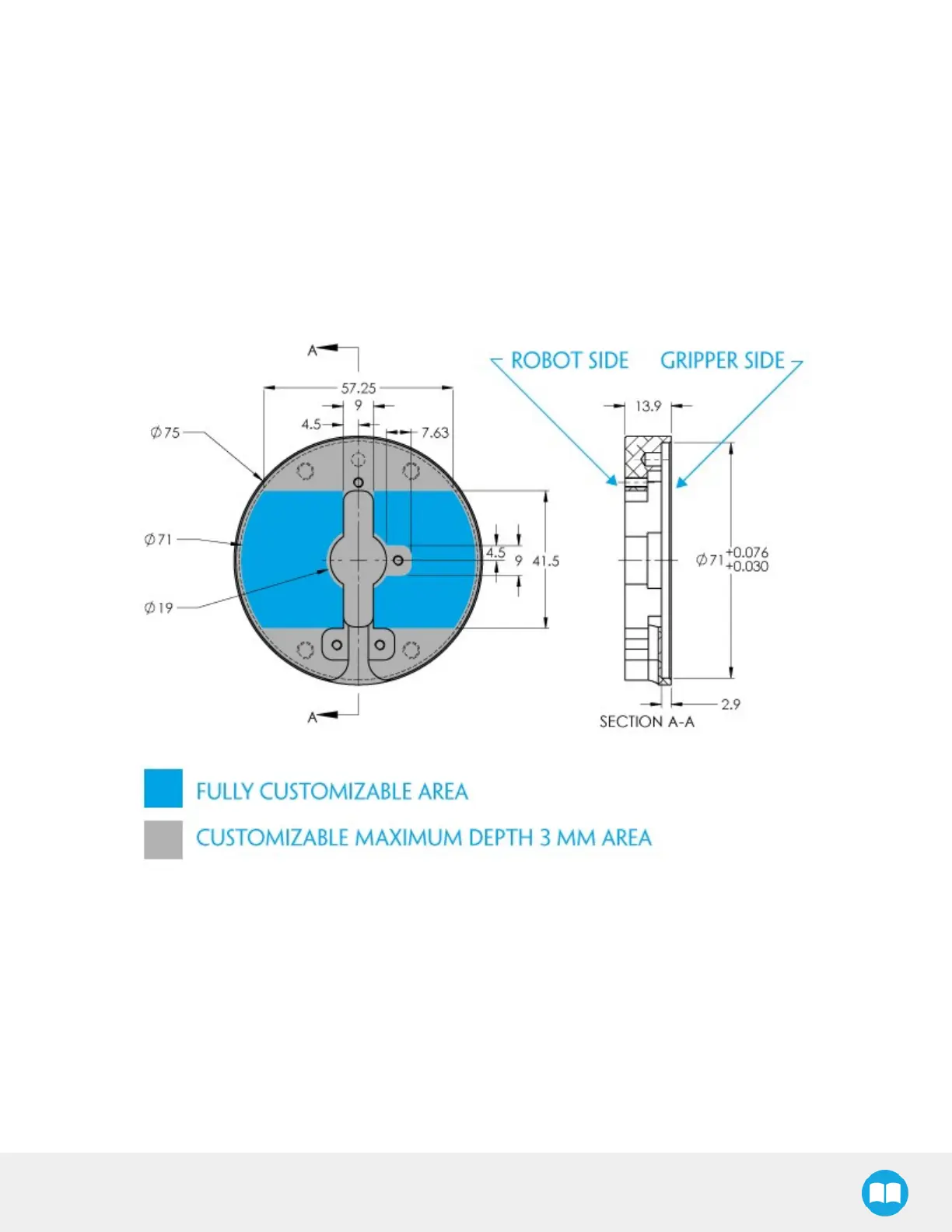

Fig. 6-2: Workable area dimensions of blank coupling AGC-CPL-BLANK-002
