Robotiq Hand-E Gripper - Instruction Manual
Grooved fingertip
The figure below the available grooved fingertip (HND-TIP-VGR-KIT); please refer to the Spare Parts, Kits and Accessories section. This
fingertip has a grooved surface with an optimal shape for picking cylindrical parts (by its horizontal and vertical grooves). This fingertip
must be mounted on the racks using the fingertip holder (HND-TIP-HLD-KIT).

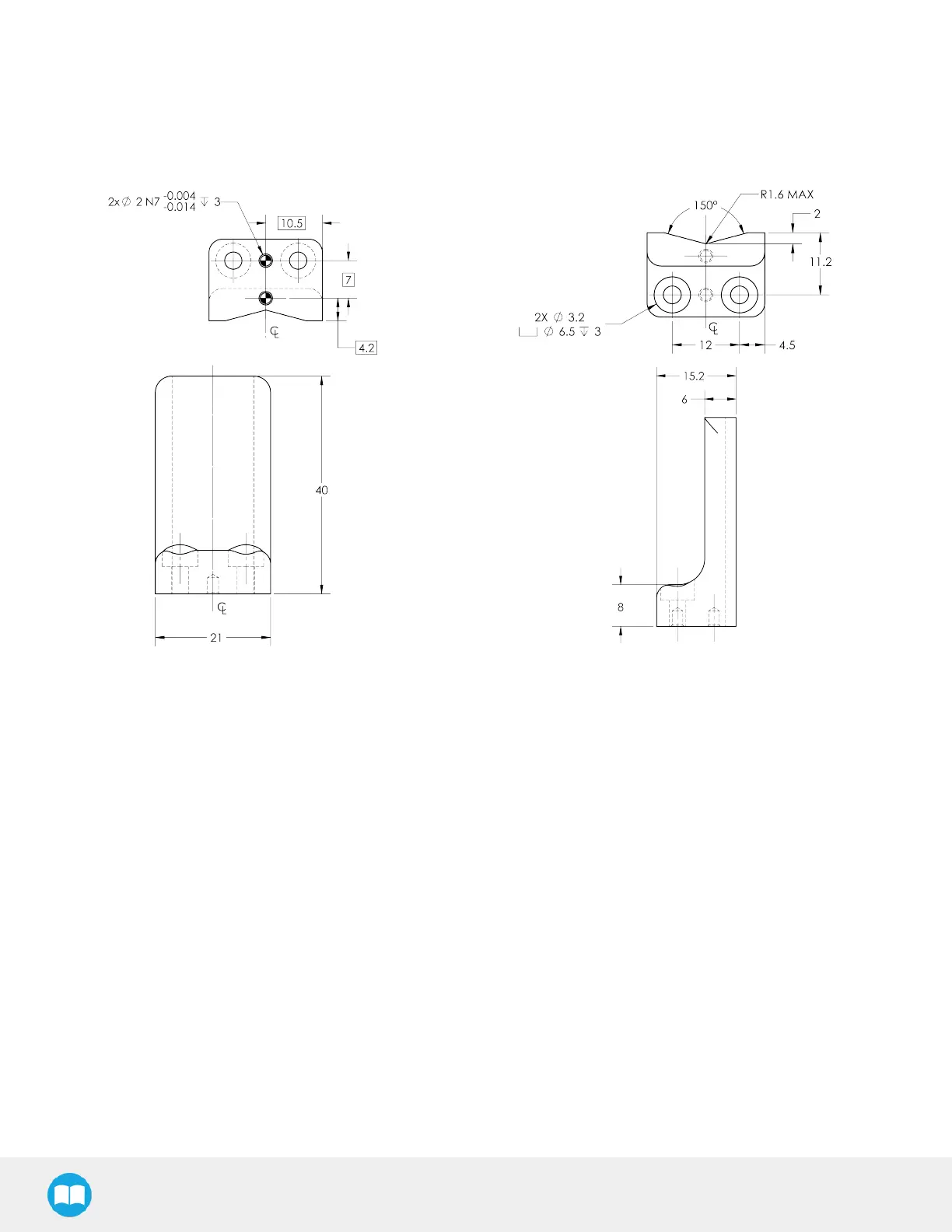

Fig. 6-8: Grooved fingertip
70
