ROBOTIQ HAND-E - Technical Dimensions

Robotiq Hand-E Gripper - Instruction Manual
6.1. Technical dimensions
The figure below represents the Gripper's dimensions with axes X, Y, Z, and origin referenced for finger motion.
Info
All technical drawings in the present section are shown with the basic aluminum fingers.

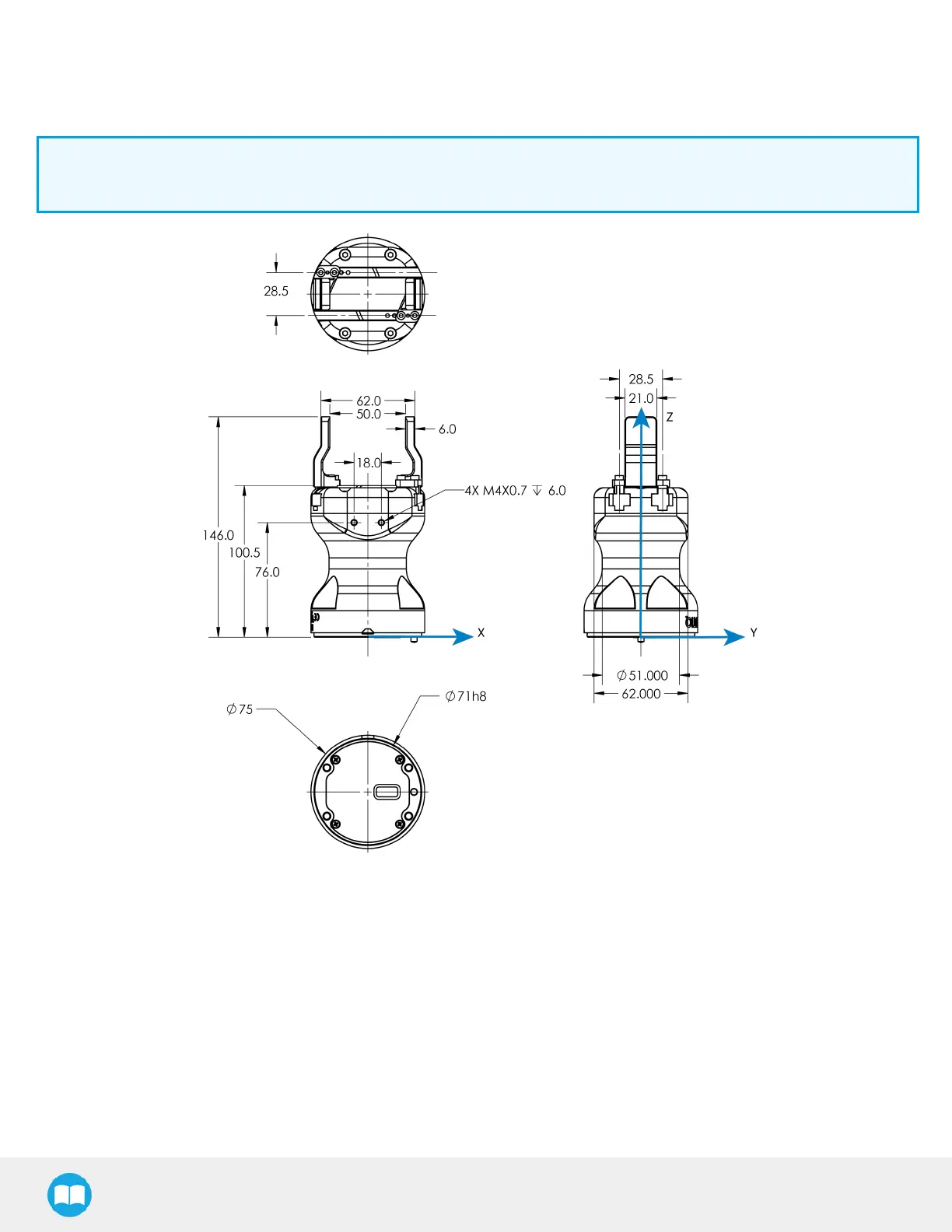

Fig. 6-1: General dimensions of Hand-E (open)
64
