Robotiq Hand-E Gripper - Instruction Manual
Coupling for ISO 9409-1-50-4-M6
Bolt pattern for coupling GRP-CPL-062 (please refer to the Spare Parts, Kits and Accessories section) is compatible with:
l 50 mm pitch circle diameter:
l (4) M6-1.0 low head socket cap screw clearance
l (1) M6 indexing pin
l ISO 9409-1 standard 50-4-M6

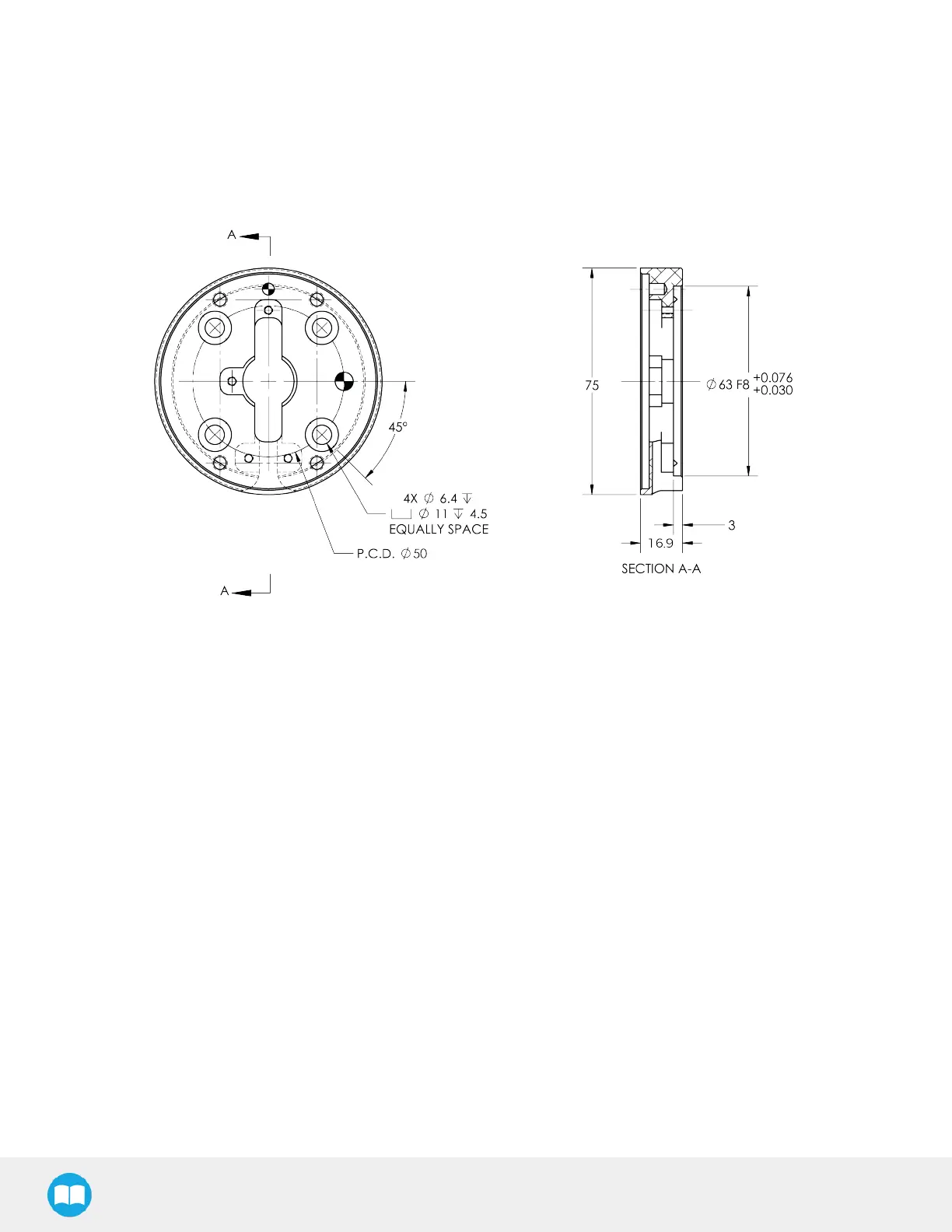

Fig. 6-3: Coupling for ISO 9409-1-50-4-M6.
