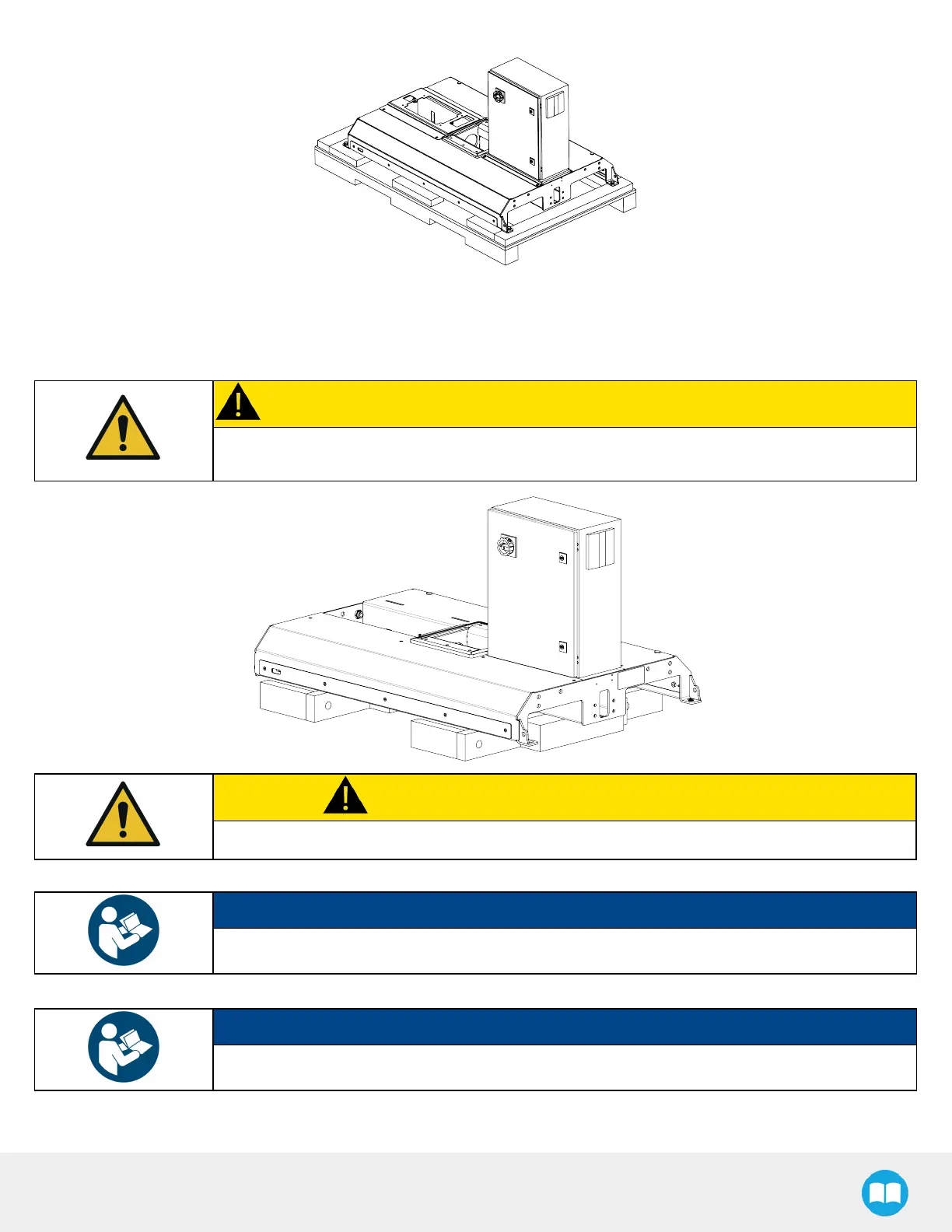

11. Use a 17 mm wrench to remove the four (4) lag bolts that hold the base of the Solution to the bottom of the crate.
12. Use a forklift to lift the base from the aisle side (i.e., the side where the Robotiq control box is located).
13. Place the solution on shims with a thickness of at least 10 mm (3/8 in).
CAUTION
Make sure that the shims are not beneath the two L-shaped aluminum bracketslocated at the
conveyor side of the base.
CAUTION
The weight of the base isapproximately 82 kg (180 lb). Proceed with caution.
NOTICE
The two (2)wooden framescan be used asshimsfor this step.
14. Remove the two (2)L-shaped aluminum brackets using a 16 mm wrench.
NOTICE
Make sure to have all components in hand before discarding the shipping crate and packaging
28
