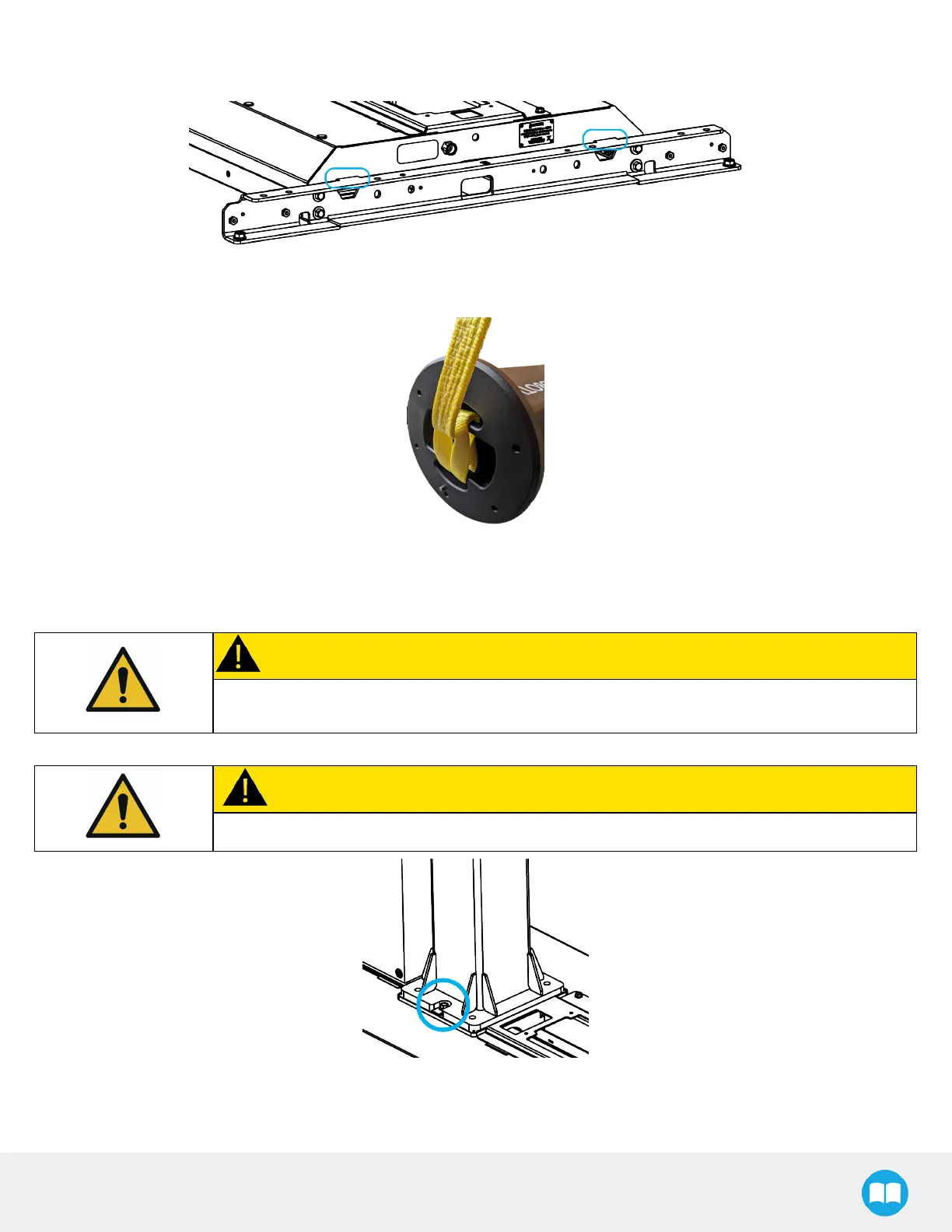

4. Fully tighten the four (4) M12 x 30 hex cap screws to a torque of 84 Nm (62 lb-ft), making sure the tabs are in contact with the
base, asshown in the figure below.
5. Run a sling through the openings on the flange of the pedestal, as shown in the figure below.
6. Using hoisting equipment, lift the pedestal vertically so that it stands above the base.
7. Carefully align the notch in the pedestal base plate with the hex cap screw already installed on the base.
CAUTION
Make sure that the cableslocated inside the base of the pedestal are not pinched during this
operation.
CAUTION
The weight of the pedestal isapproximately 54 kg (119 lb). Proceed with caution.
