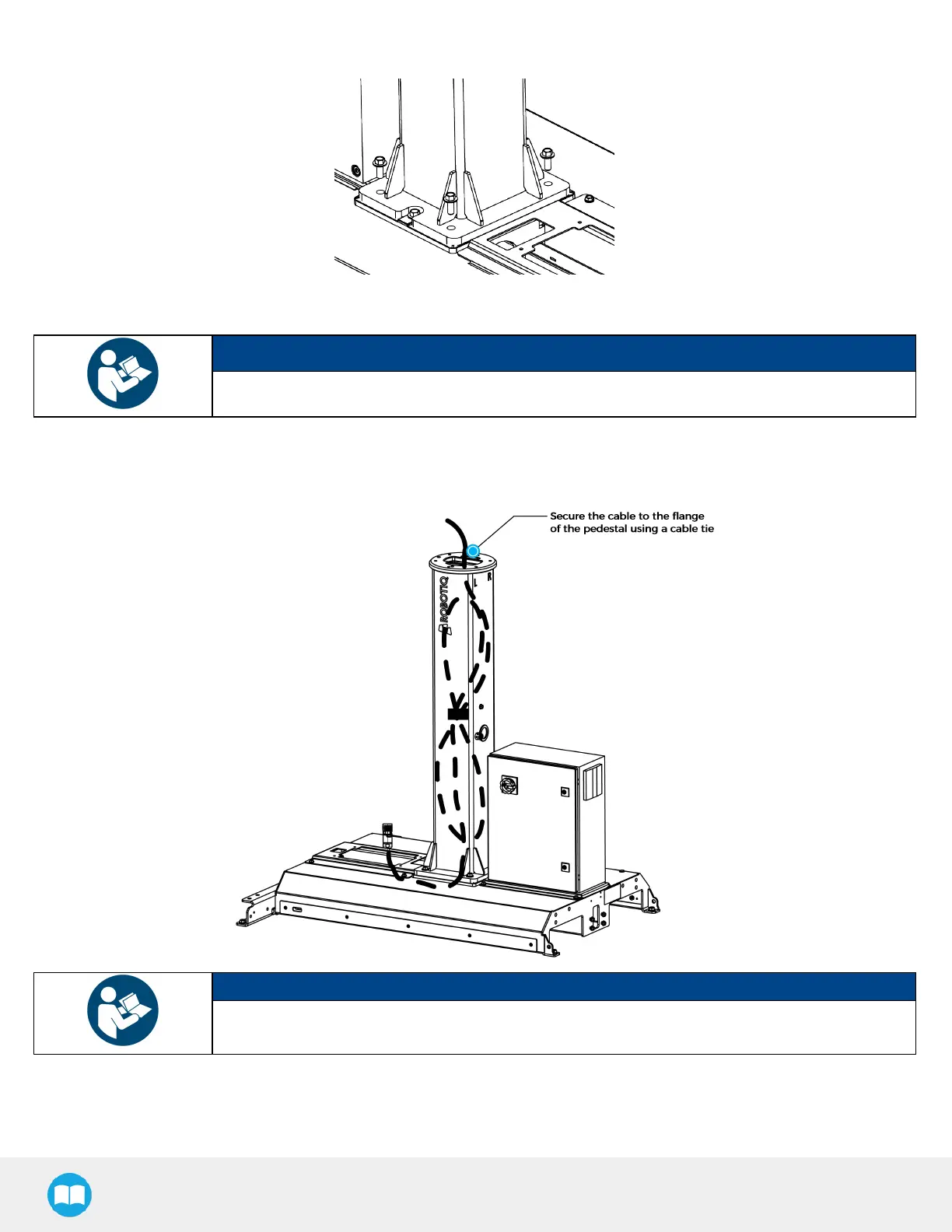

8. Secure the pedestal to the base using the four (4) M12 x 30 screwsprovided. Tighten to a torque of 84 Nm (62 lb-ft).
Robot Installation
NOTICE
A minimum of two people isrecommended to execute these steps.
1. Slide the bundled cable inside the pedestal (see Unboxing section).
2. From the outside, attach the wrapped cable to the flange of the pedestal using a long cable tie.
NOTICE
Follow URguidelinesto remove the robot from its packaging and to install the robot on the
pedestal.
3. Use the rubber plug found in the robot box to close off the hole commonly used to run the robot pigtail cable through the
robot base.
4. Connect the robot to the cable before fully seating it on the flange of the pedestal.
31
