Rockwell Automation Publication 2080-QS004C-EN-E - October 2023 101
Appendix A Set Up Serial Communication Between Computer and Micro820 Controller

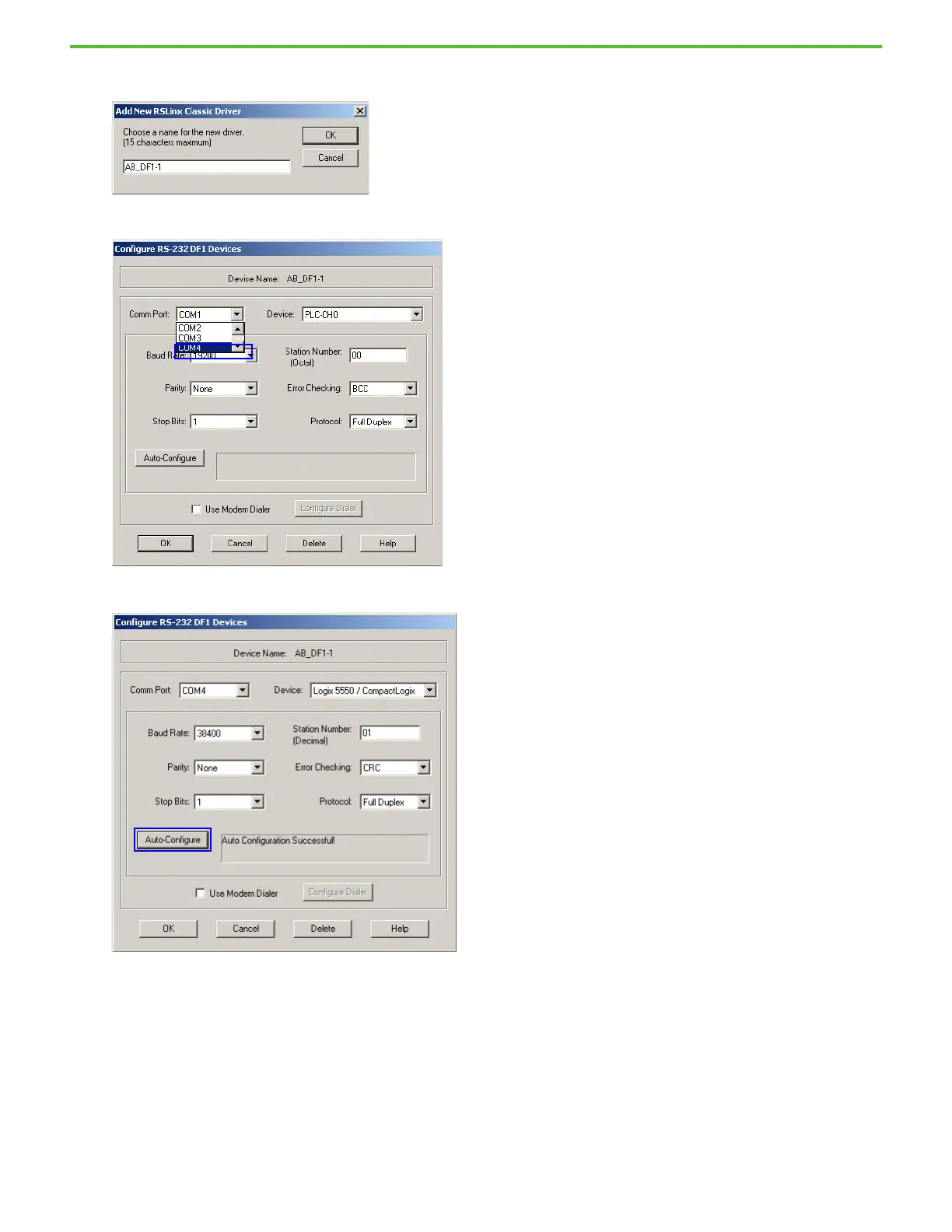

3. Name the new driver and select OK.
4. Select the Comm Port number where the Micro820 controller is connected to. For this example, select COM4.
5. Verify that your computer is connected to the Micro820 controller, then select Auto-Configure.
Alternatively, you can manually enter the configuration, which is based on the image that is shown above.
6. Select OK after you have finished configuring the driver for the Micro820 controller.
