Chapter 8 How to Implement an Instruction Block

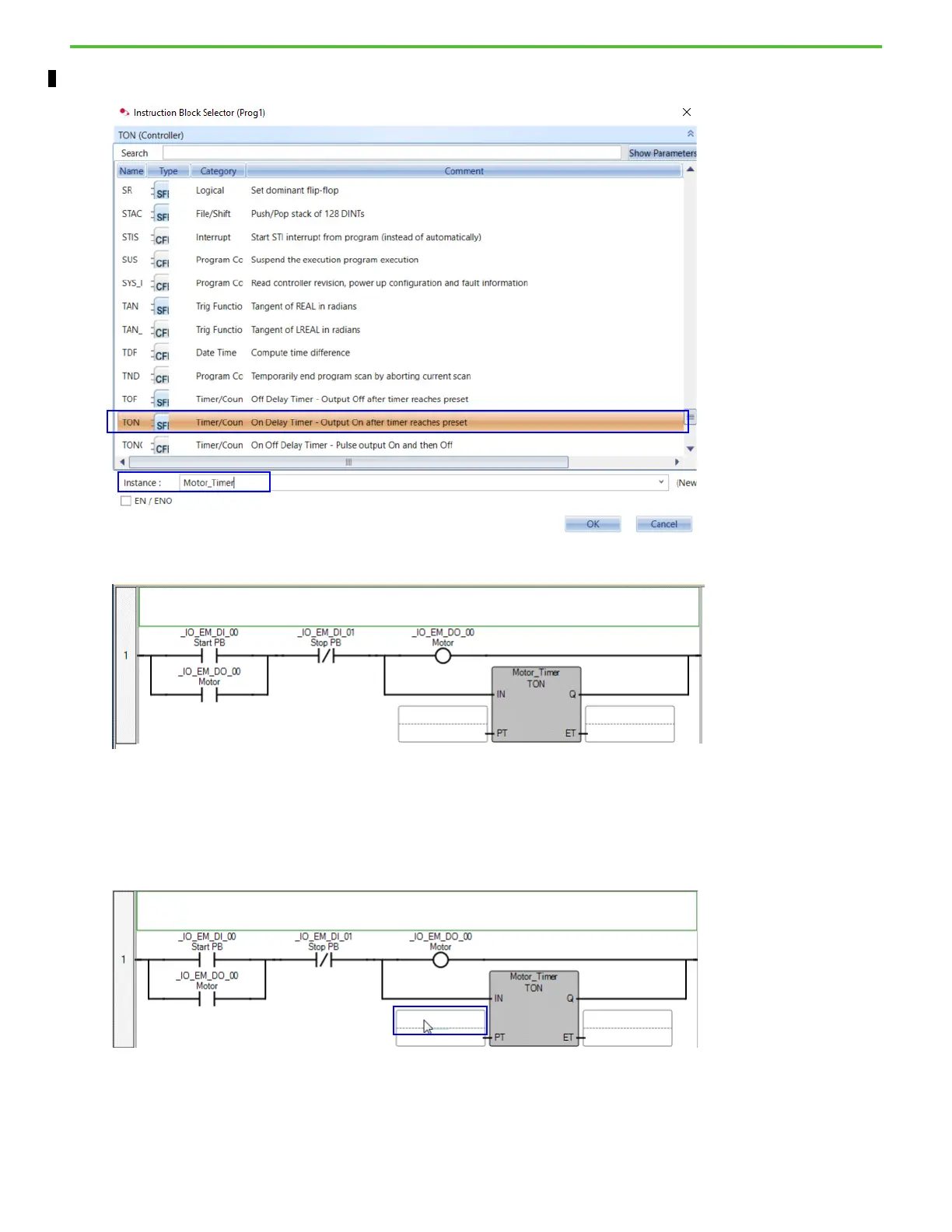

3. Double-click the TON Instruction Block, which is the Timer-on-Delay. Next, enter Motor_Timer for the Instance, then select OK.
Your Ladder Diagram program should look as follows.
Enter Parameters for TON Instruction Block
Next, let us complete the parameters for the TON Instruction Block.
1. Hover your mouse over the gray box next to the PT parameter of the Motor_Timer TON instruction. A light blue highlighted box
appears.
