Chapter 8 How to Implement an Instruction Block

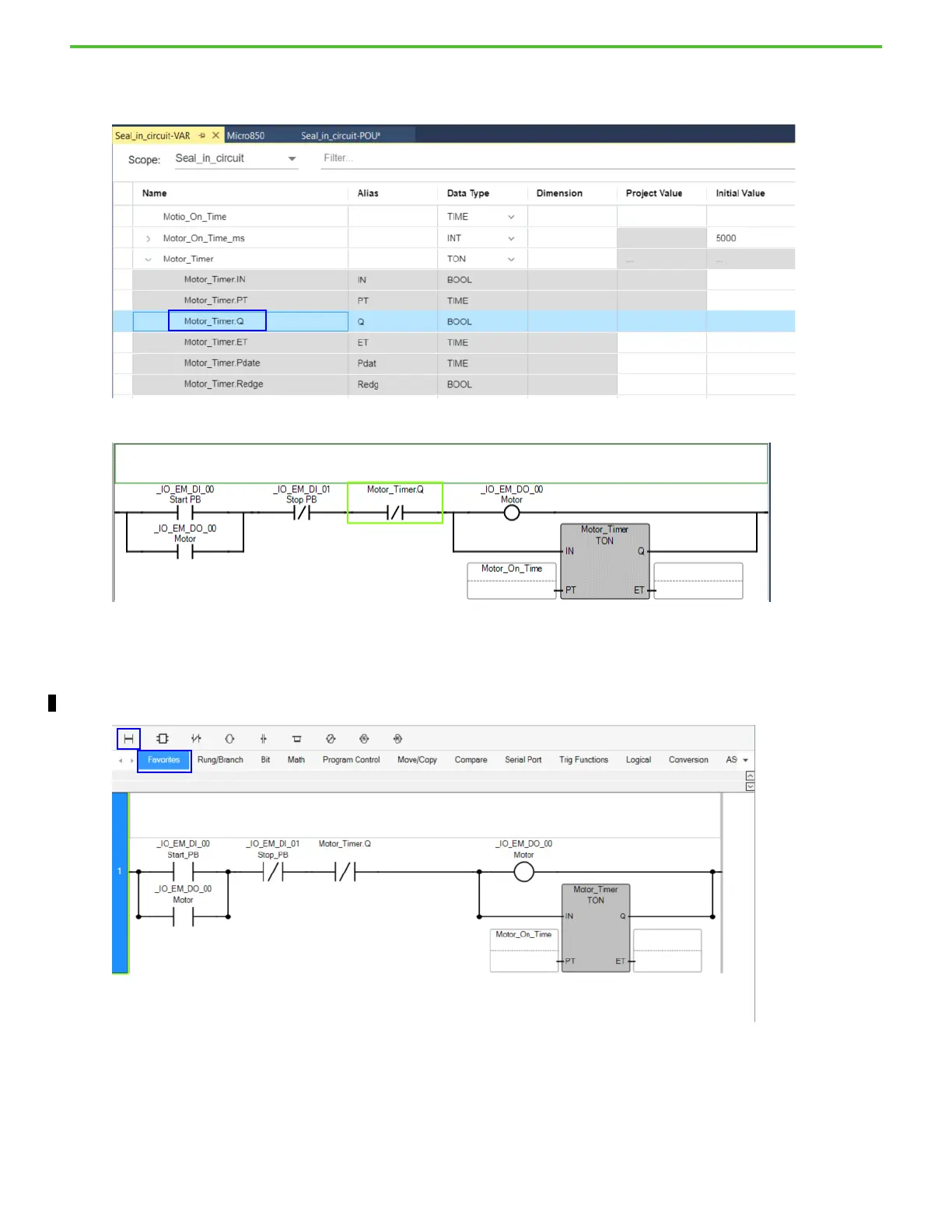

6. Expand the variable Motor_Timer and select Motor_Timer.Q, then select OK.
The Timer.Q is an output bit from the Timer instruction that turns on when the programmed time has elapsed.
7. Your Ladder Diagram program should look as follows.
Add an ANY_TO_TIME Instruction Block
Next, let us add a rung below this existing rung.
1. Locate the Rung instruction in the Favorites folder of the Instruction Toolbar. Click the instruction to add a rung below Rung 1.
