Chapter 20
Test the HMI Application
Run the HMI Application
1. From the PanelView 800 terminal main configuration screen, select File Manager to select the downloaded application.
2. Select PV800_App1 and select Set As Startup.
3. Select Run.
Connect an Ethernet cable between the PanelView 800 terminal and the Micro800 controller.
Test the HMI application
Key in the following values for the analog scaling:
•Raw_min = 0
• Raw_max = 65535
•Scale_min = 0
•Scale_max = 100
You should see the Scale value display being updated on the HMI screen as you turn the potentiometer on the simulator board.

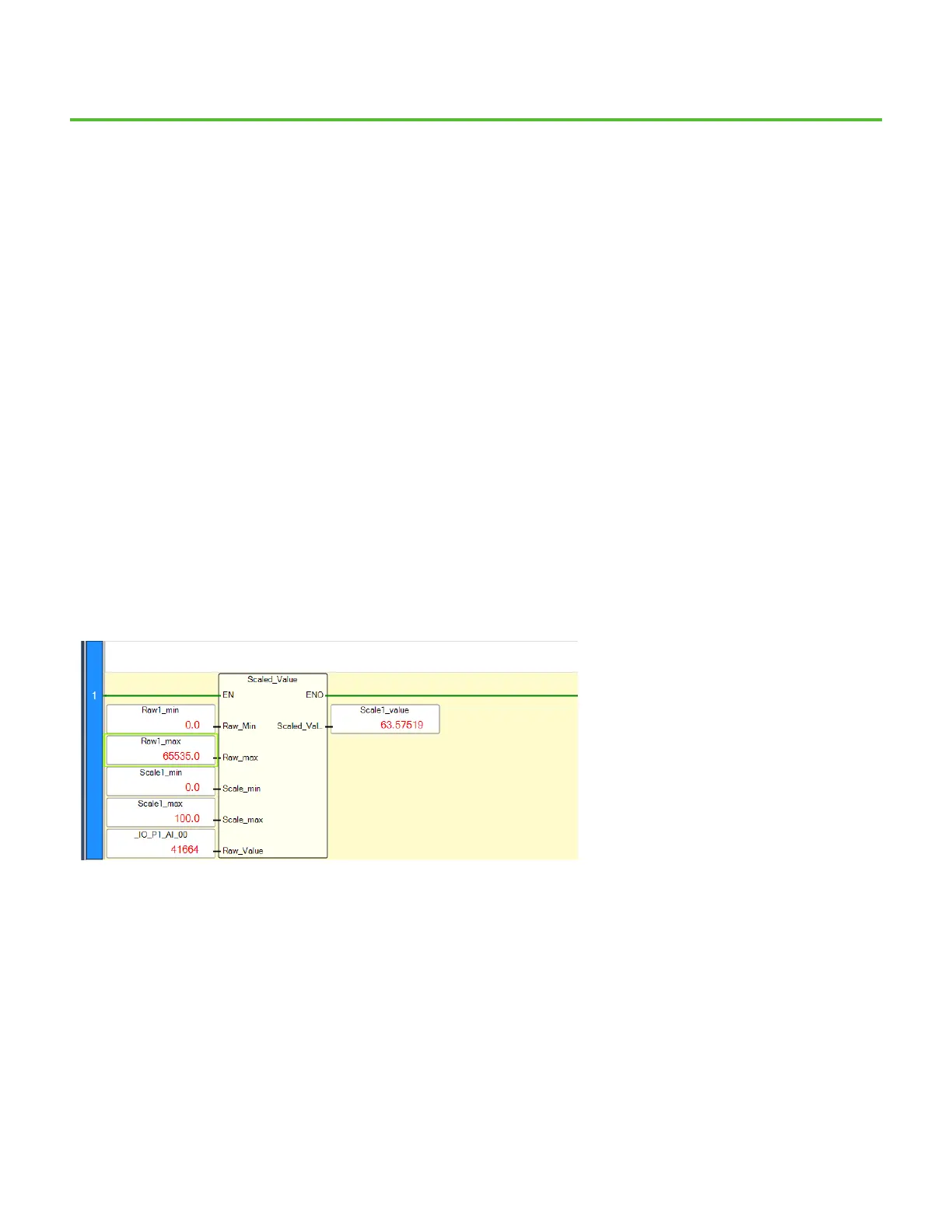

Connect to the controller and you should see the following values from your Analog_scaling program.
