98 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Chapter 20 Test the HMI Application

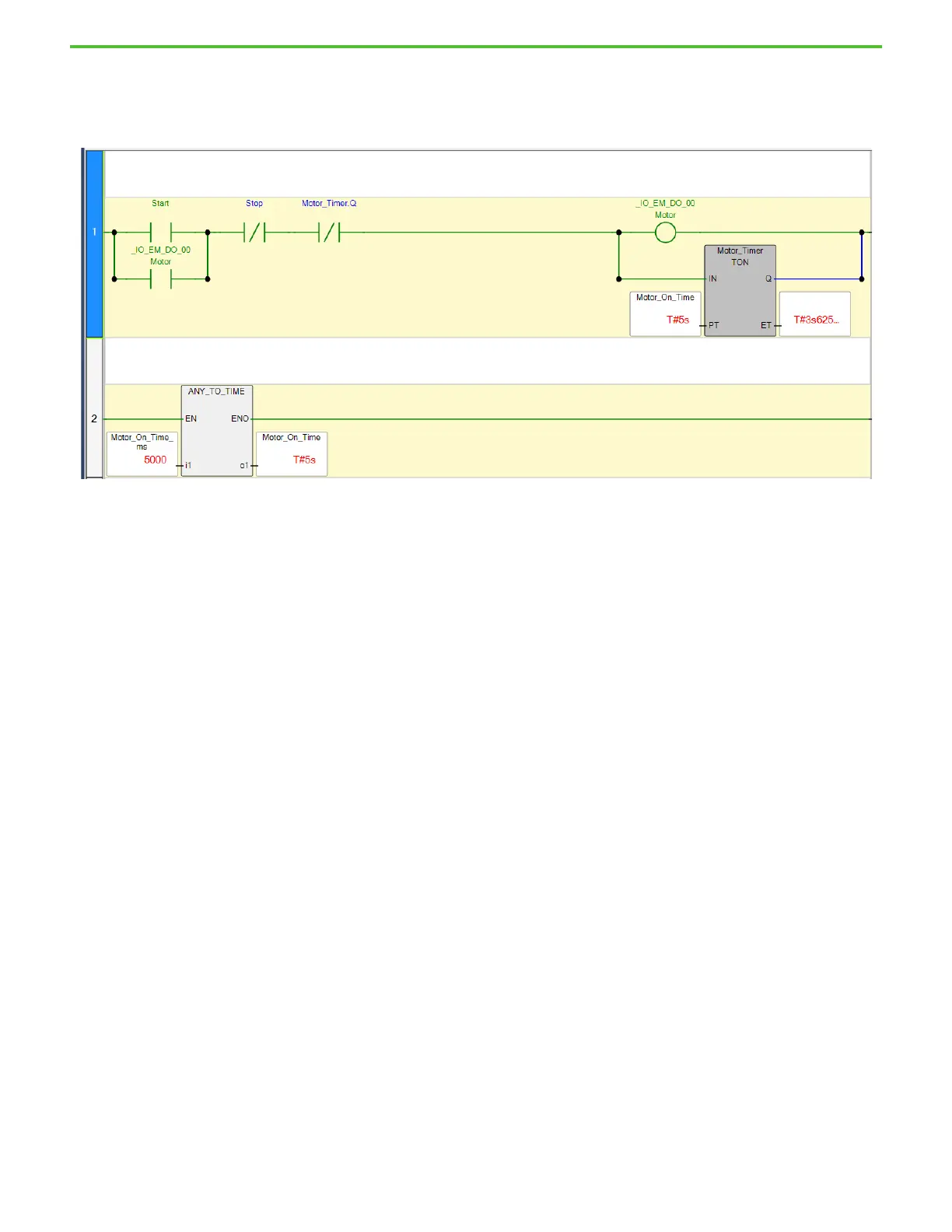

Testing the Seal_in Circuit program:
1. Press the Start push button to turn on output 0 and you should see that the motor image appears on the screen for five seconds.
2. Press the Stop push button to turn off output 0.
You have now learned how to set up and program a PanelView 800 terminal with Connected Components Workbench software.
