70 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Chapter 14 Using HMI Tags

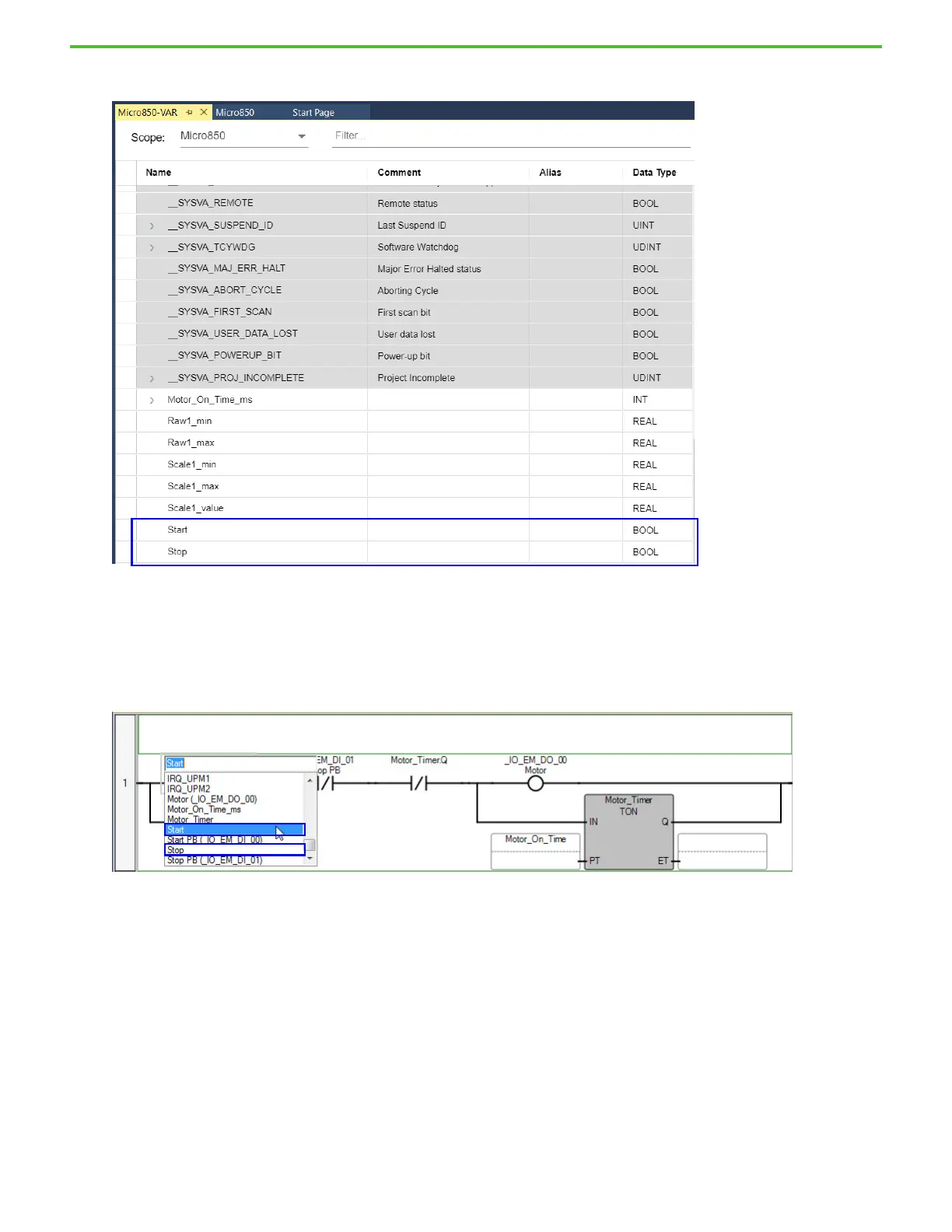

6. Add two Global Variable tags as shown.
These tags are used to start/stop the motor for the Seal_in_circuit.
Edit Ladder Diagram Program
Make the following changes to rung 1 of the Seal_in_circuit program as we execute the start/stop control from the PanelView 800 terminal.
1. Replace “Start PB (_IO_EM_DI_00)” with the Start Global Variable and replace “Stop PB (_IO_EM_DI_01)” with the Stop Global Variable.
