Rockwell Automation Publication 2080-QS004C-EN-E - October 2023 95
Chapter 19
Download HMI Application

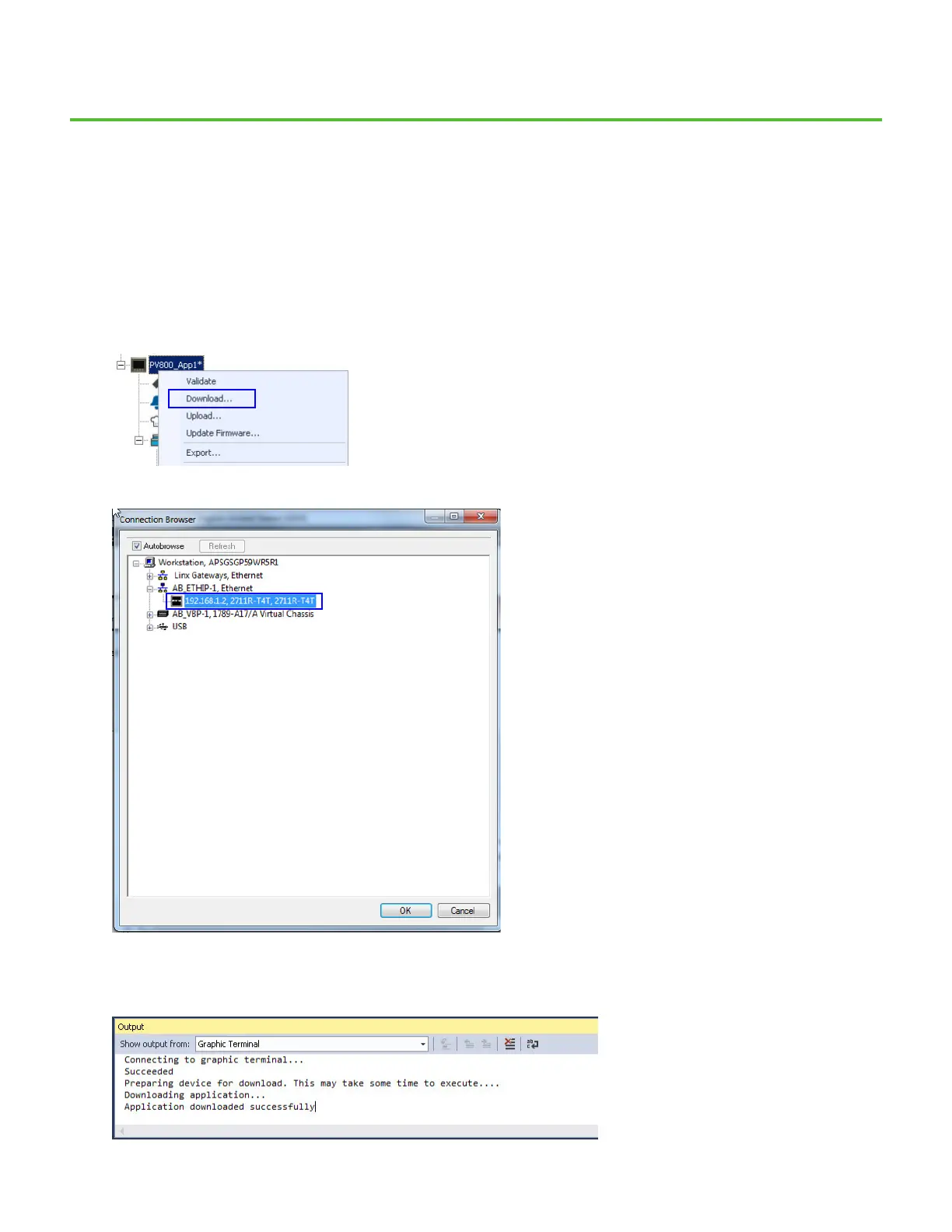

Save and Download Project
Save the project and download your application to the PanelView 800 terminal.
1. Right-click PV800_App1 and select Download...
2. Browse and select 2711R-T4T as the target to download and select OK.
By default the EtherNet/IP drive scans 256 addresses. To decrease the time to detect the terminal, it may be necessary to right-click
on the drive and use Properties to limit the range of address from zero to four.
3. The Output window shows the download status to the PanelView 800 terminal.
