Rockwell Automation Publication 2080-QS004C-EN-E - October 2023 39
Chapter 8 How to Implement an Instruction Block

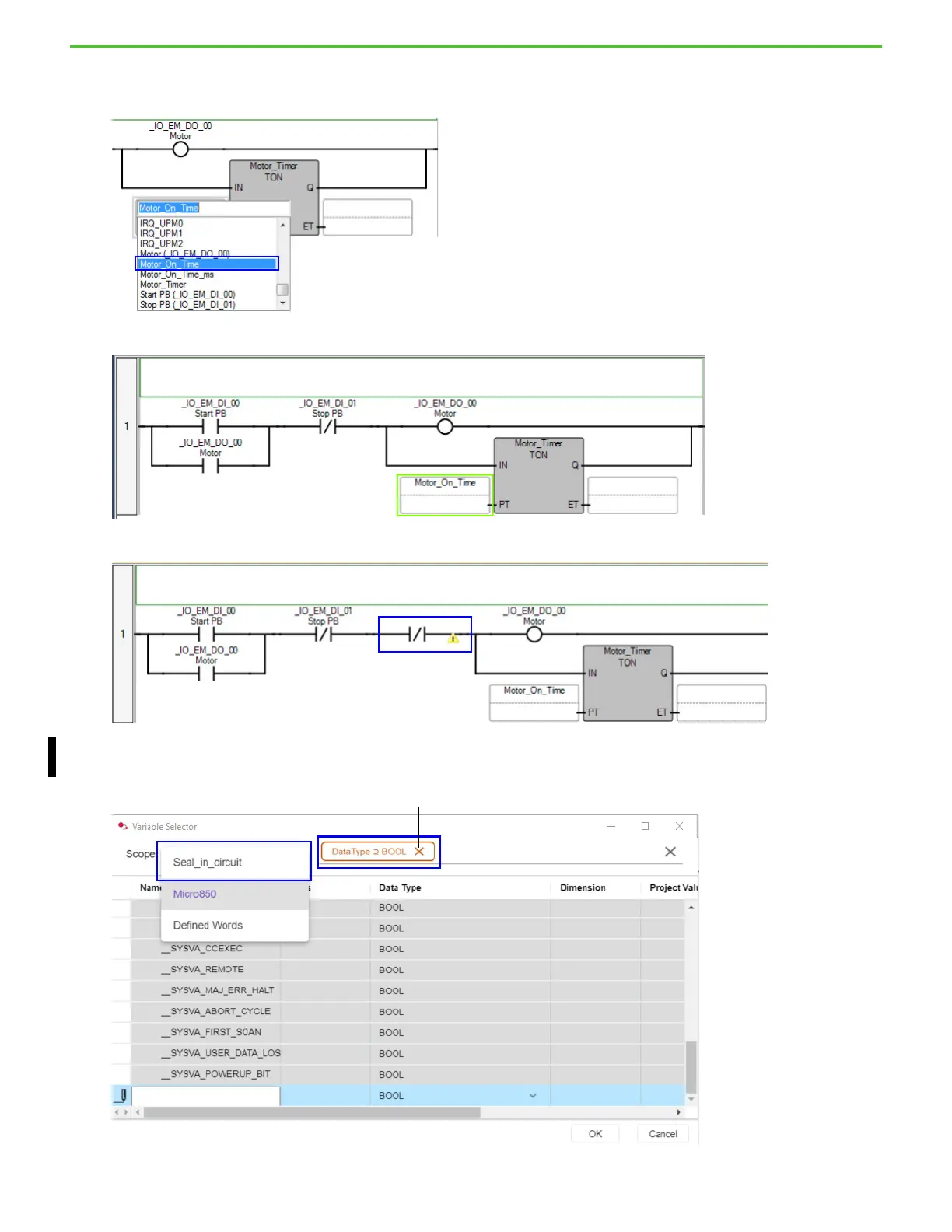

2. Click this gray box and a dropdown combo box appears. Find and select the variable Motor_On_Time, then press the Enter key.
Alternatively, you can double-click the box below the blue box to bring up the Variable Selector.
Your Ladder Diagram program should look as follows.
3. Insert a Reverse Contactor instruction after the _IO_EM_DI_01 Reverse Contactor.
4. To open the Variable Selector dialog box, right-click and select Variable Selector.
5. Change the Scope to Seal_in_circuit from the dropdown menu and clear the DataType filter.
