104 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023
Appendix A Set Up Serial Communication Between Computer and Micro820 Controller

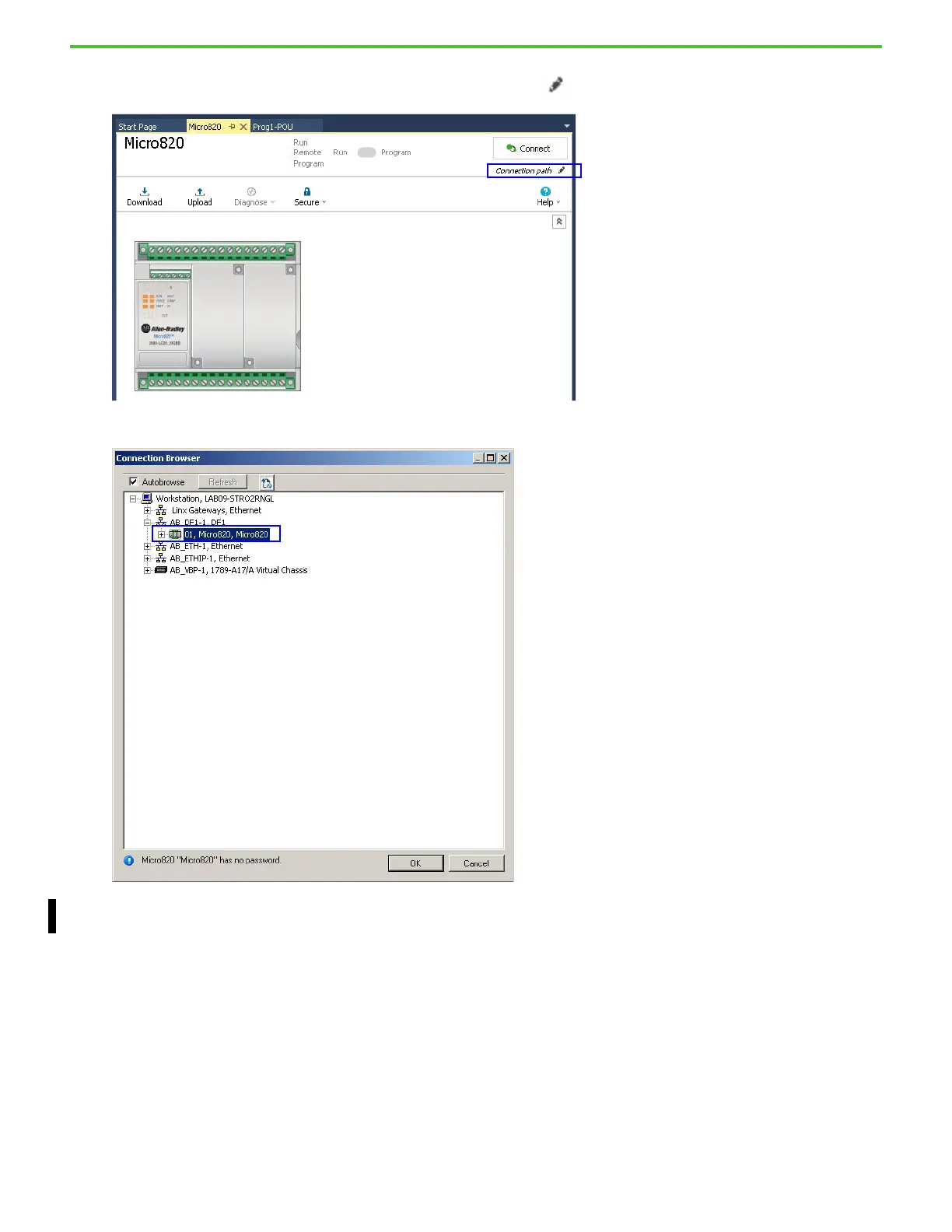

6. In Connected Components Workbench software, click the Connection Path icon to configure the communication path.
7. Browse for the Micro820 controller under the newly added DF1 driver and select OK.
If you are using the Connection Browser in RSLinx software, the 2080-REMLCD driver is identified as “2080-REMLCD, DF1” instead of
“AB_DF1”.
If Connected Components Workbench software prompts an error when you select the Micro820 controller, or the controller does not
seem available, try to restart Connected Components Workbench software, and configure the communication path again.
