68 Rockwell Automation Publication 2080-QS004C-EN-E - October 2023

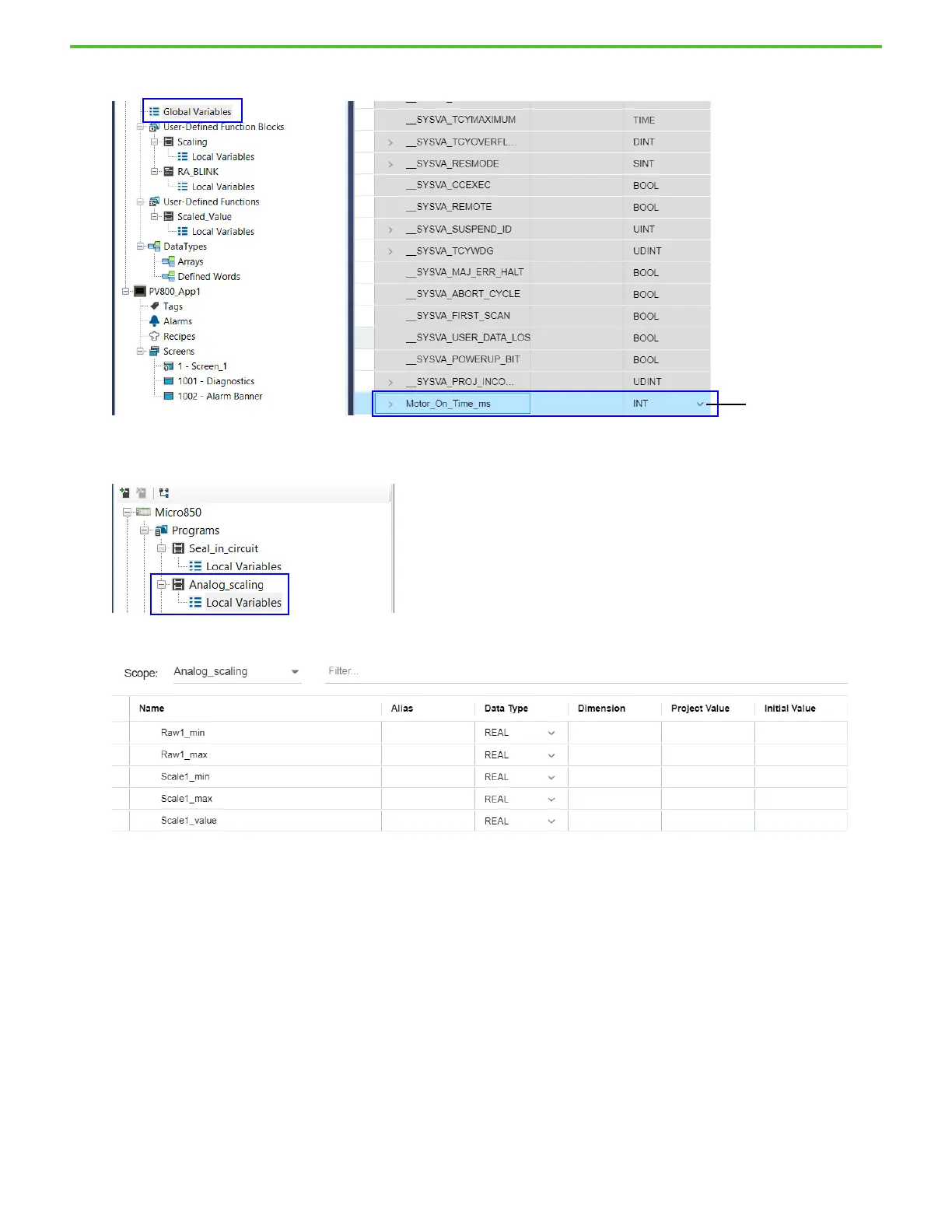

Chapter 14 Using HMI Tags
2. Double-click Global Variables, right-click, and select Paste.
This tag is used to set the motor on time.
3. Go to the Local Variables for the Analog_scaling program.
These tags are used to input the analog input Raw value range for the 2080-IF2 channel 0 and the engineering units range.
Right-click and
select “Paste”.
