4-16 Configuring the I/O
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
2. Select “ETHERNET-MODULE” from the list (Figure 4.19) to
configure the drive and its embedded EtherNet/IP adapter, and then
click OK. The drive’s New Module screen (Figure 4.20
) appears.

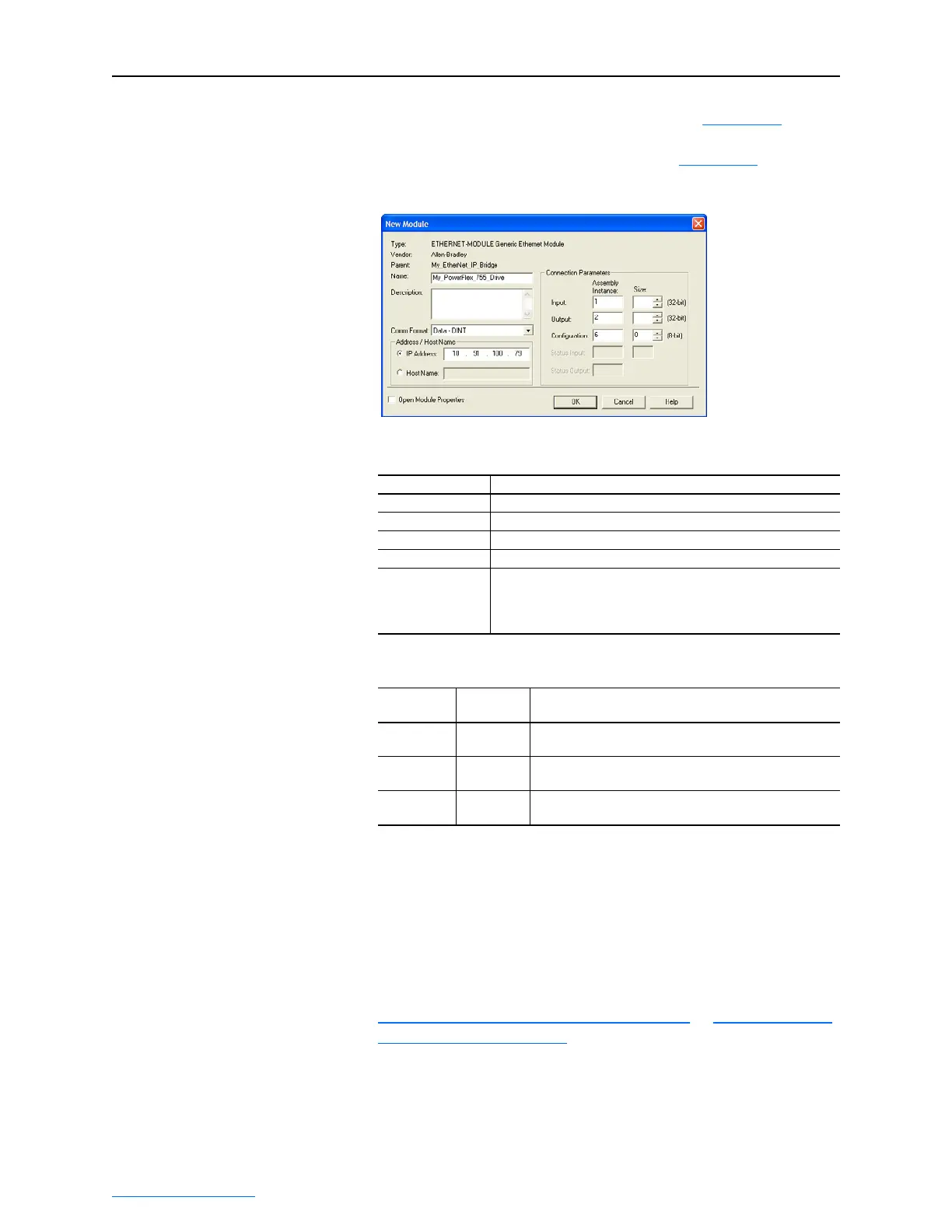

Figure 4.20 Drive New Module Screen
3. Edit the following information about the drive/adapter:
4. Under Connection Parameters, edit the following:
Enter the number of 32-bit words that are required for your I/O in
the Input Size and Output Size boxes. Since the adapter always uses
the 32-bit Logic Status, 32-bit Feedback, and a 32-bit word
dedicated for memory allocation of the Generic Ethernet module
profile, at least three 32-bit words must be set for the Input Size.
The adapter also uses the 32-bit Logic Command and 32-bit
Reference, requiring at least two 32-bit words for the Output Size.
If any or all of the drive’s sixteen 32-bit Datalinks are used (see
Setting a Master-Slave Hierarchy
on page 3-8 or Custom Peer I/O
Configuration on page 3-11), the Input and Output Size settings
must be increased accordingly.
– Input Size: Start with 3 words and add 1 word for each Datalink
used to write data. For example, if 3 Datalinks—[DL From Net
xx] parameters—will be used to write to drive or peripheral
Box Setting
Name A name to identify the drive and adapter.
Description Optional – description of the drive/adapter.
Comm Format Data - DINT (This setting formats the data in 32-bit words.)
IP Address The IP address of the adapter.
Open Module
Properties
When this box is checked, the drive’s New Module screen will close
when clicking OK. When unchecked, additional module properties
screens will appear to further configure the drive/adapter when OK
is clicked. For this example, check this box.
Box
Assembly
Instance
Size
Input 1 (This value
is required.)
The value will vary based on the number of [DL From Net
xx] parameters used for your application (see details below).
Output 2 (This value
is required.)
The value will vary based on the number of [DL To Net xx]
parameters used for your application (see details below).
Configuration 6 (This value
is required.)
0 (This value is required.)
