112 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 6 Frame 7 Components

Control Transformer Fuses

(FH4) Replacement

Replace control transformer fuses (FH4) with the appropriate kit catalog

number:

• SK-RM-IBFH4-FUSE5A-F7 (400V/480V/600V)

• SK-RM-IBFH4-FUSE5B-F7 (690V)

Remove the Control Transformer Fuses

Follow these steps to remove the control transformer fuses.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the enclosure door.

4. Remove the protective guard. See Remove the Protective Guard on page

110

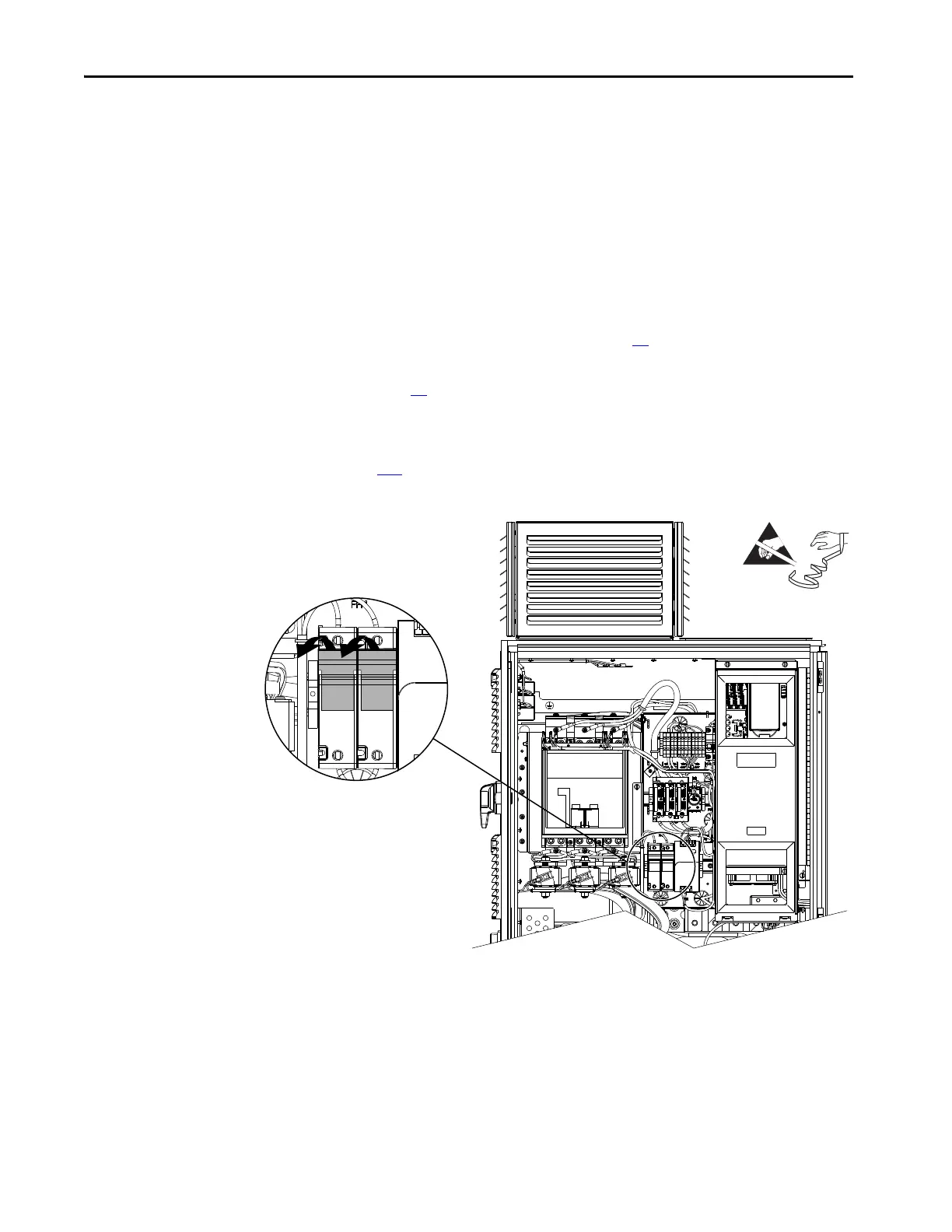

5. Pull out on the tabs at the top of the fuse holder and remove the fuse.

Install the Control Transformer Fuses

Install the control transformer fuses in the reverse order of removal.
