142 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 7 Control Bay and Control Pod Components

IP21/IP54 Roof Vent Filter

Replacement

Replace an IP21/IP54 roof vent filter on a control or input bay with kit catalog

number SK-RM-IBFAN-54FLTR1.

Remove the IP21/IP54 Roof Vent Filter

Follow these steps to remove the IP21/IP54 roof vent filter.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

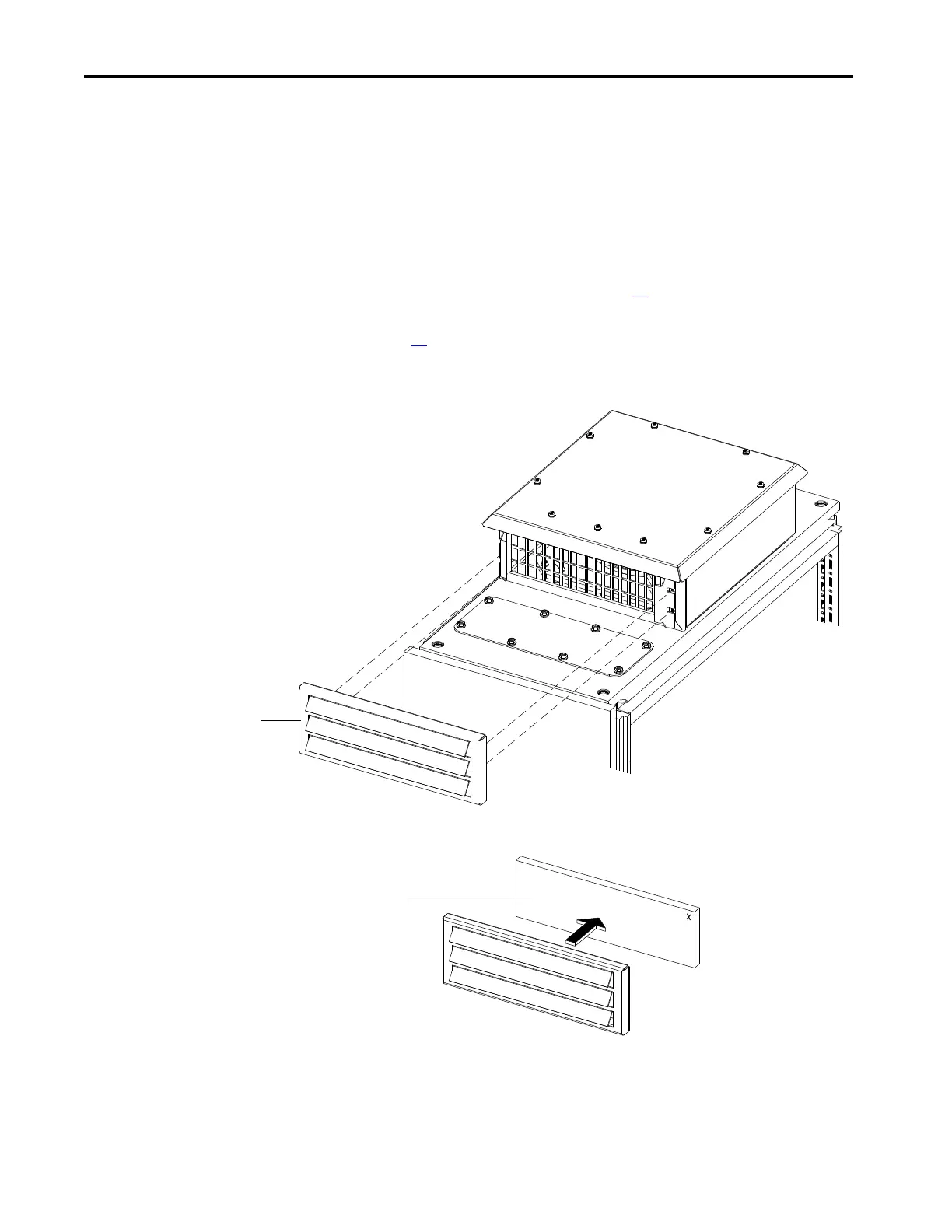

3. Slide the vent up to release the tabs from the slots in the vent assembly and

remove the vent.

4. Remove the filter from the vent cover.
