Rockwell Automation PowerFlex 755TL - Power;Lcl Filter Module Heatsink Fan Fuse Replacement; Remove the Power;Lcl Filter Module Heatsink Fan Fuse

Rockwell Automation Publication 750-TG100B-EN-P - June 2019 275
Power Bay Components Chapter 9
a. Without bending the cable to a radius less than 50 mm (2 in.), fully
insert the fiber-optic cable into the transceiver.
b. Insert the transceiver and fiber-optic cable into the port on the board,
until you hear an audible ‘click.’
Power/LCL Filter Module
Heatsink Fan Fuse
Replacement
Replace the power or LCL filter module heatsink fan fuse with kit catalog
number SK-RM-INVFAN1-FUSE (Time Delay, 250V, 3.5 A, Cartridge).
Remove the Power/LCL Filter Module Heatsink Fan Fuse
Follow these steps to remove and replace the power /LCL filter module heatsink
fan fuse.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Open the corresponding power bay enclosure door.
4. Remove the guard form the enclosure. See Guard Removal on page 235
.
IMPORTANT

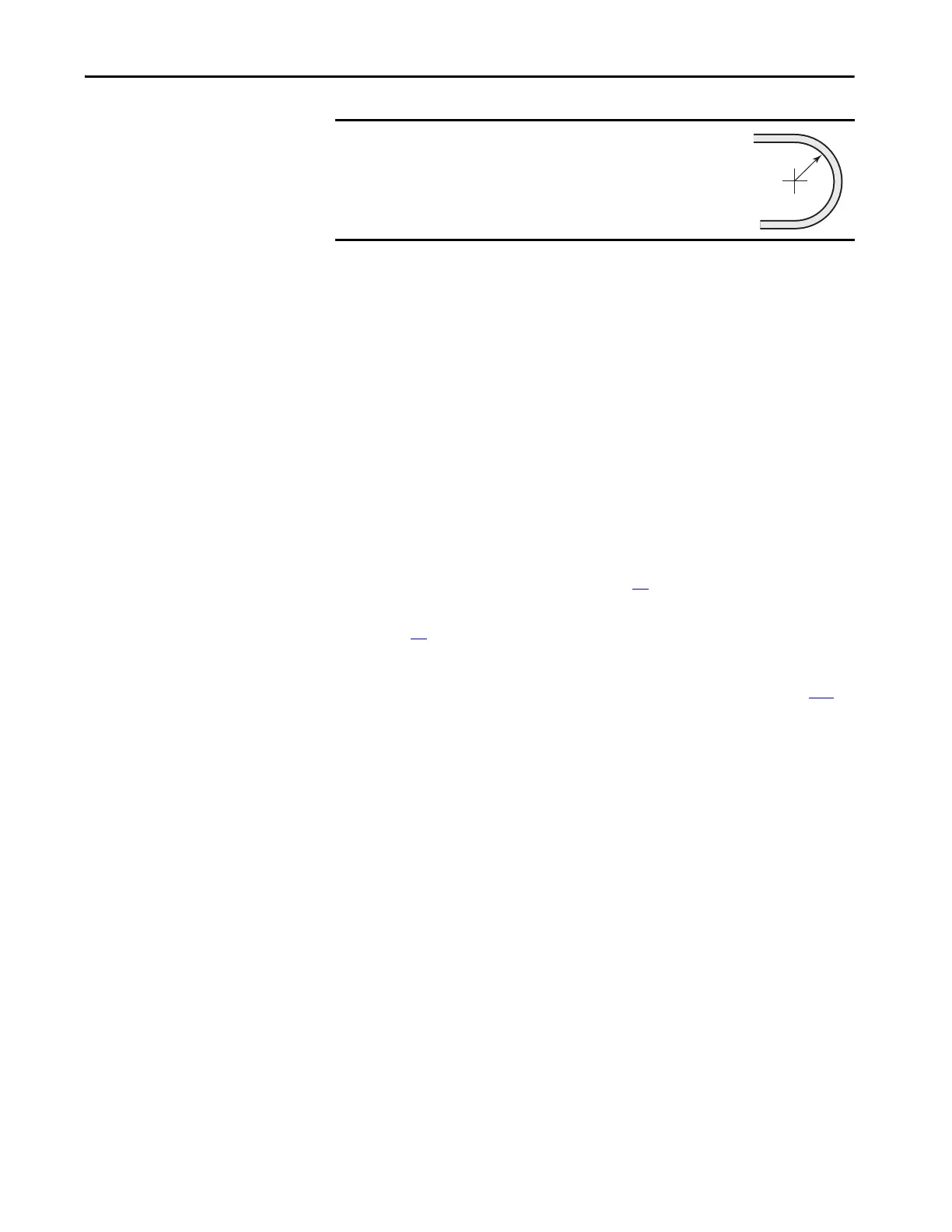

Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
50 mm
(2 in.)
