Rockwell Automation Publication 750-TG100B-EN-P - June 2019 81
Frame 6 Components Chapter 5
Stirring Fan Assembly
Replacement
Replace a stirring fan assembly with kit catalog number SK-RM-MFAN1-F6.
Remove the Stirring Fan Assembly
Follow these steps to remove the stirring fan assembly.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Remove the cover from the chassis. See Remove the Cover on page 76
.

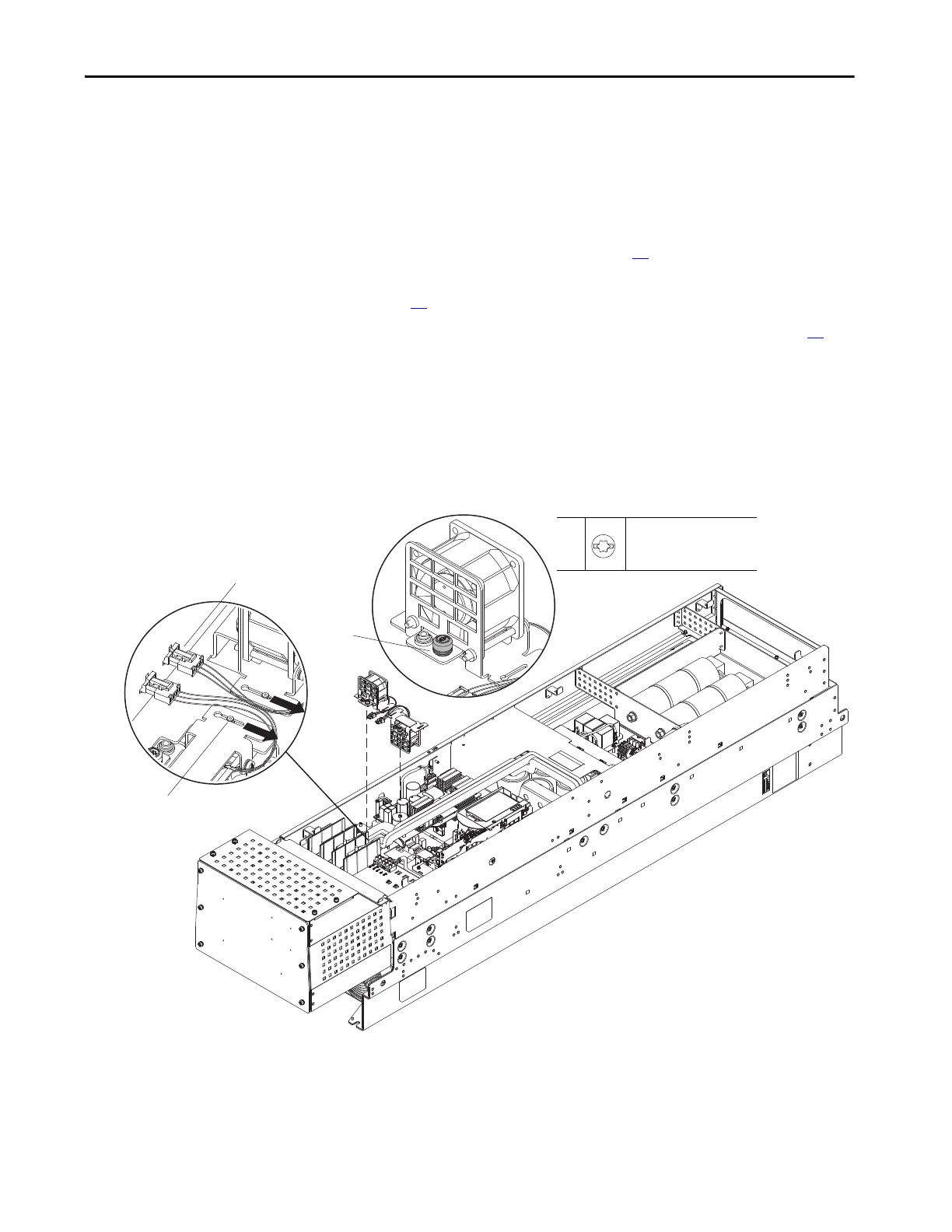

4. Disconnect the fan power wire harness connectors from the connectors on
the chassis.
5. Loosen the M4 captive screw that secures each of the fan assemblies to the
chassis.
6. Slide the fan assembly away from the chassis until the mounting tabs align
with the holes in the fan mounting plate, and remove the fan assembly.
Install the Stirring Fan Assembly
Install the stirring fan assembly in the reverse order of removal.
5
4
5
M4
T20 or F - 6.4 mm (0.25 in.)
2.6 N
•m (23 lb•in)
6
