Rockwell Automation PowerFlex 755TL User Manual

262 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components
Install the LCL Filter Module in the Enclosure
Install the LCL filter module into the enclosure in the reverse order of removal.
When installing the fiber-optic cables:
1. Remove the transceiver from the fiber-optic port on the power layer
interface circuit board on the adjoining power module.
2. Without bending the cable to a radius less than 50 mm (2 in.), fully insert
the fiber-optic cable into the transceiver.
3. Insert the transceiver and fiber-optic cable into the port on the board, until
you hear an audible ‘click.’
AC Input Link Fuses
Replacement
Replace the AC input link fuses with the appropriate kit catalog number that is
identified in Tab le 22
:
IMPORTANT

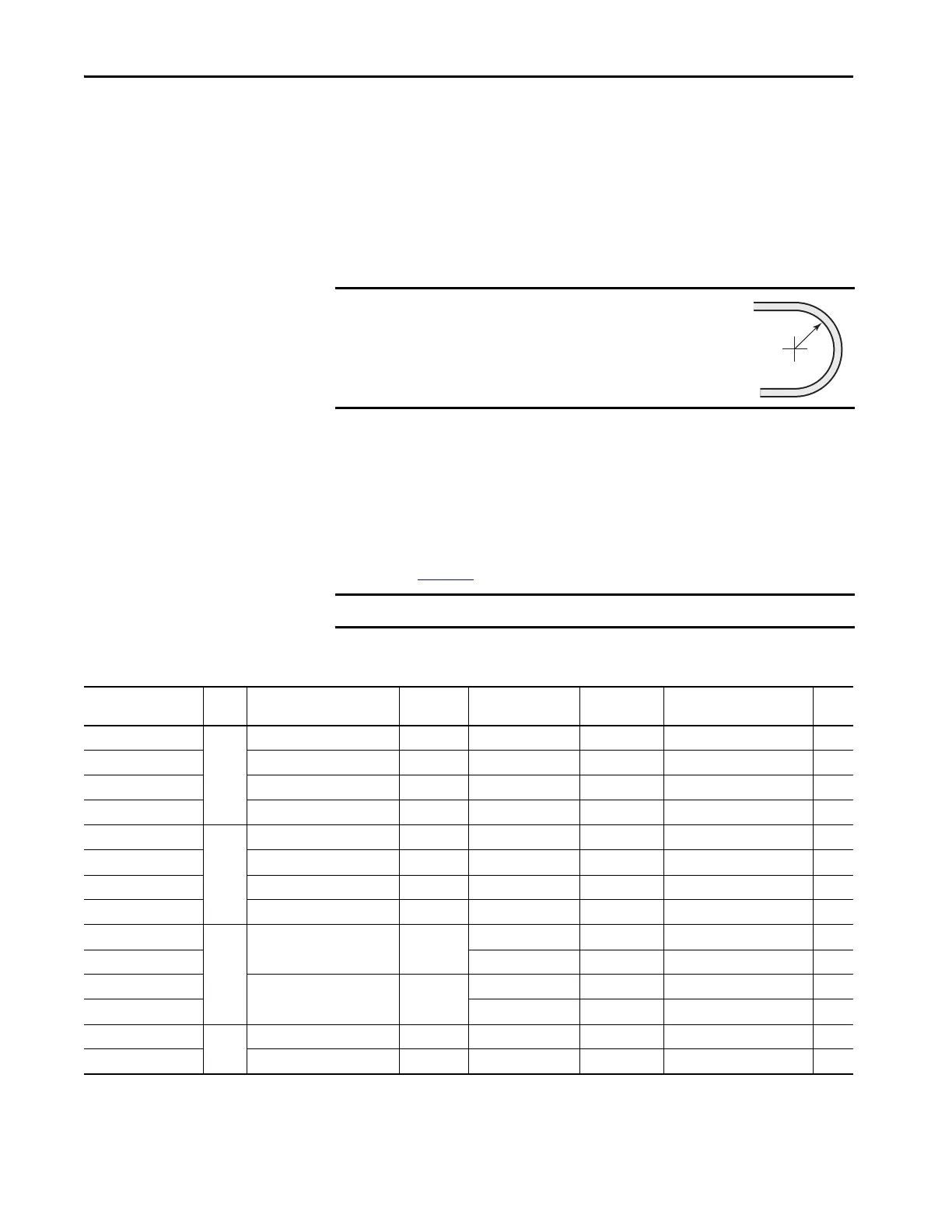

Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
50 mm
(2 in.)
IMPORTANT It is recommended that you replace all three AC line fuses.
Table 22 - AC Input Link Bus Bar and Fuse Assembly Kit Fuses
AC Input Link Bus Bar
and Fuse Kit Cat. No.
Frame LCL Filter Voltage
Rating
Fuse Kit Cat. No. Bussman Fuse
Number
Fuse Rating Fuse
Qty.
20-750-MACL1-F8M 8 One 20-750-ML1-C540D505 400/480V SK-RM-ACFUSE1-F8 170M6463 690/700V (IEC/U.L.), 900 A
(1)
3
20-750-MACL3-F8M One 20-750-ML1-E395F370 600/690V SK-RM-ACFUSE5-F8 170M6461 690/700V (IEC/U.L.), 700 A
(1)
3
20-750-MACL2-F8M One 20-750-ML1-C770D740 400/480V SK-RM-ACFUSE2-F8 170M6466 690/700V (IEC/U.L.), 1250 A
(1)
3
20-750-MACL1-F8M One 20-750-ML1-E395F370 600/690V SK-RM-ACFUSE1-F8 170M6463 690/700V (IEC/U.L.), 900 A
(1)
3
20-750-MACL1-F9M 9 One 20-750-ML1-C1K1D1K0 400/480V SK-RM-ACFUSE3-F9 170M6470 690/700V (IEC), 1800 A
(2)
3
20-750-MACL2-F8M One 20-750-ML1-E760F735 600/690V SK-RM-ACFUSE2-F8 170M6466 690/700V (IEC/U.L.), 1250 A
(1)
3
20-750-MACL2-F9M One 20-750-ML1-C1K4D1K3 400/480V SK-RM-ACFUSE4-F9 170M6471 690/700V (IEC), 2000 A
(3)
3
20-750-MACL3-F9M One 20-750-ML1-E980F920 600/690V SK-RM-ACFUSE6-F9 170M6469 690/700V (IEC/U.L.), 1600 A
(1)
3
20-750-MACL2-F8M 10 One 20-750-ML1-C770D740 and
one 20-750-ML1-C1K4D1K3
400/480V SK-RM-ACFUSE2-F8 170M6466 690/700V (IEC/U.L.), 1250 A
(1)
3
20-750-MACL2-F9M SK-RM-ACFUSE4-F9 170M6471 690/700V (IEC), 2000 A
(3)
3
20-750-MACL1-F8M One 20-750-ML1-E545F505 and
one 20-750-ML1-E980F920
600/690V SK-RM-ACFUSE1-F8 170M6463 690/700V (IEC/U.L.), 900 A
(1)
3
20-750-MACL3-F9M SK-RM-ACFUSE6-F9 170M6469 690/700V (IEC/U.L.), 1600 A
(1)
3
20-750-MACL2-F9M 11 Two 20-750-ML1-C1K4D1K3 400/480V SK-RM-ACFUSE4-F9 170M6471 690/700V (IEC/U.L.), 1600 A
(3)
3
20-750-MACL3-F9M Two 20-750-ML1-E980F920 600/690V SK-RM-ACFUSE6-F9 170M6469 690/700V (IEC/U.L.), 1600 A
(1)
3
