116 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 6 Frame 7 Components

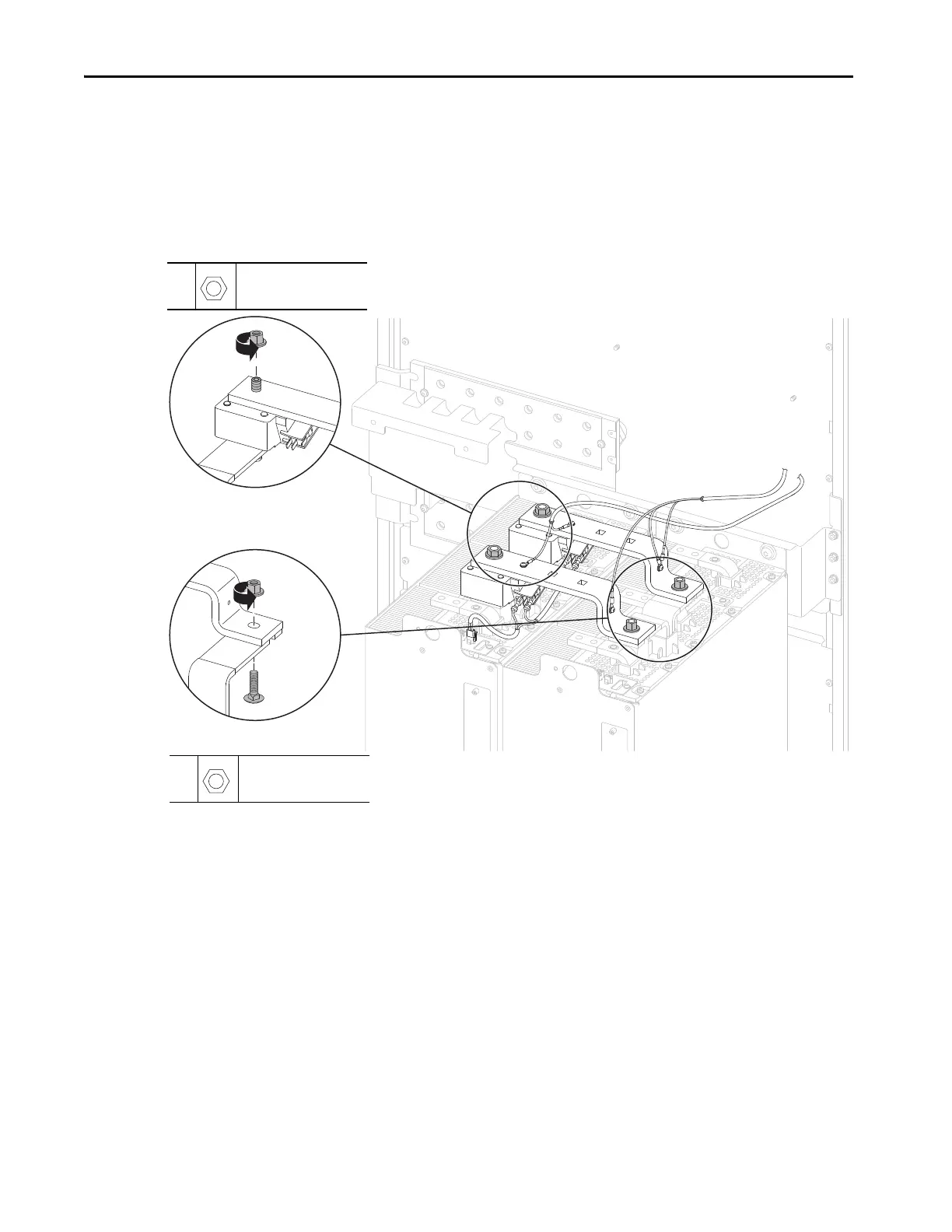

11. Remove the two M12 nuts that secure the top of the DC fuses to the DC
bus terminals on the line side converter power module. For bus supplies,
remove the DC link/fuses.
12. For drives only, remove the two M10 nuts that secure the DC link bus bars
to the DC terminals on the motor side converter power module and
remove the DC link/fuse assembly.
11
M12
19 mm
45 N•m (398 lb•in)
12
M10
17 mm
37.9 N•m (336 lb•in)
Regenerative Drive Configuration Shown.
11
12
LCL Filter Module Not Shown
for Clarity Only
To Next Page
