134 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 6 Frame 7 Components

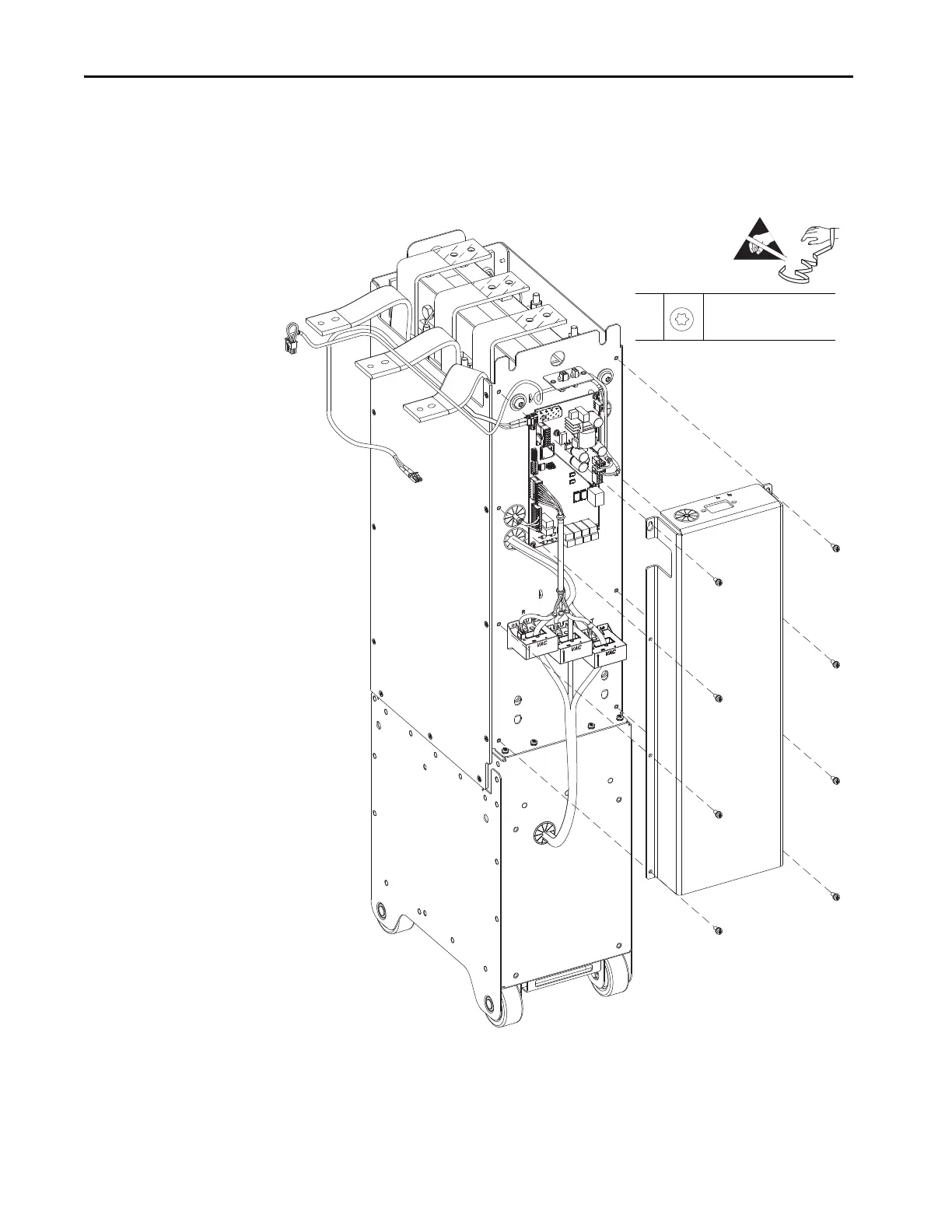

7. Remove the eight M5 x 12 mm torx screws that secure the protective cover

to the LCL filter module chassis and remove the cover.

8. Route the 24V DC control power supply wire harness and connector P3

through the grommet on the cover.

M5 x 12 mm

T25

2.6 N•m (23 lb•in)
