136 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 6 Frame 7 Components

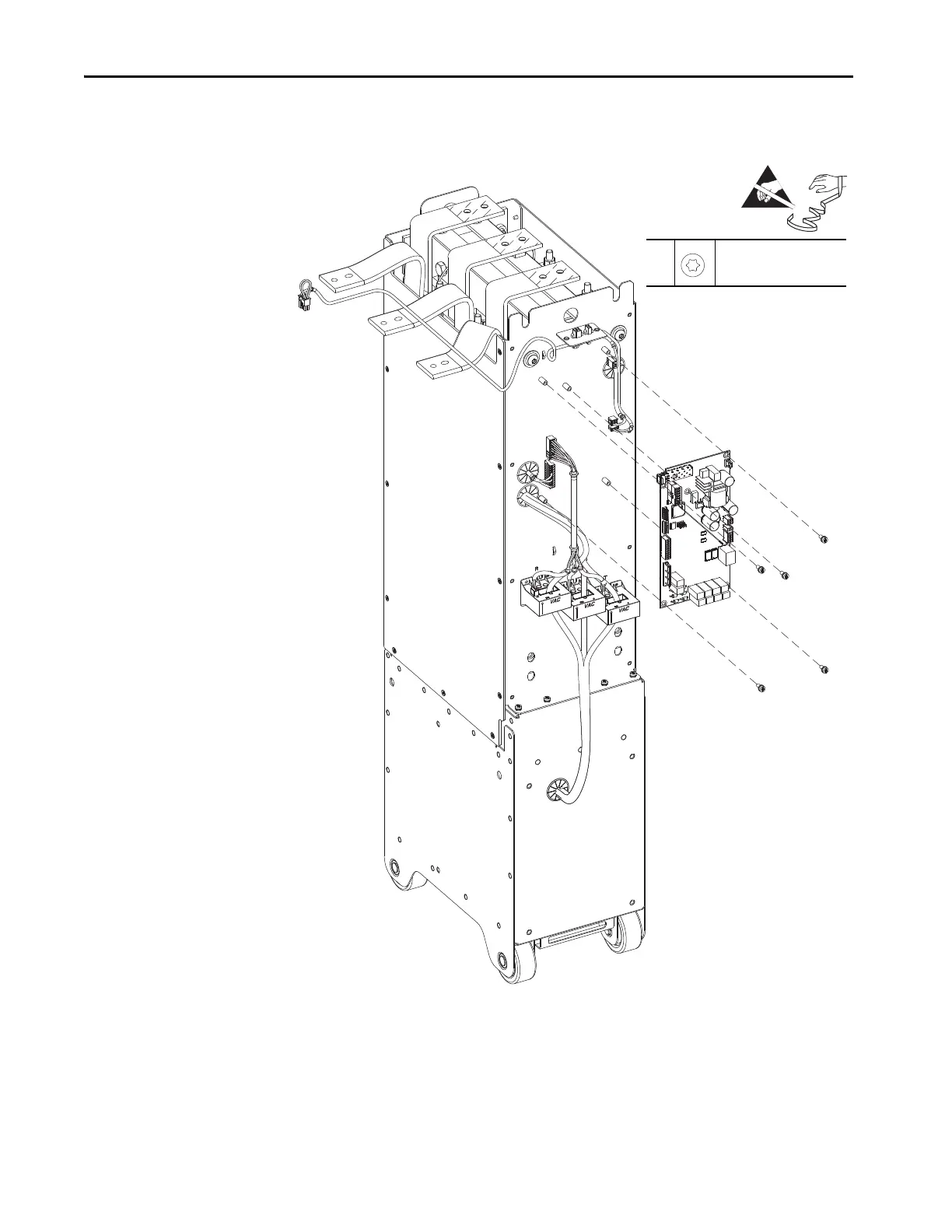

11. Remove the five M4 x 12 mm torx screws that secure the current sense

circuit board to the chassis and remove the board.

M4 x 12 mm

T20

2.6 N•m (23 lb•in)
