Rockwell Automation Publication 750-TG100B-EN-P - June 2019 153

Control Bay and Control Pod Components Chapter 7

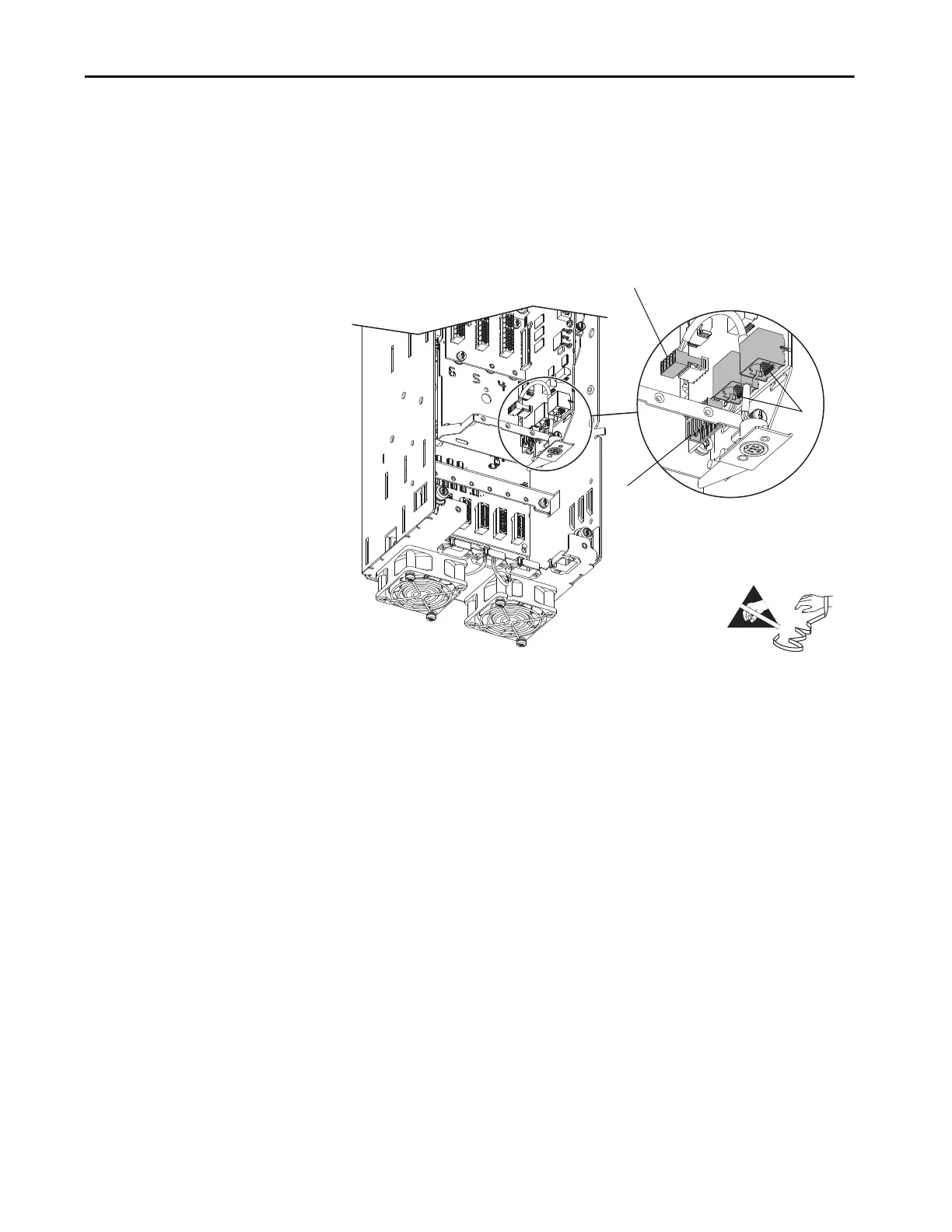

7. Disconnect the HIM plug-in terminal block for the mini-DIN connector

on the control board.

8. Disconnect any Ethernet cables from the ports on the bottom of the main

control board.

9. Disconnect the plug-in terminal block (TB1) on the bottom of the main

control board.
