16 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 1 Before You Begin Tests, Maintenance, or Repairs

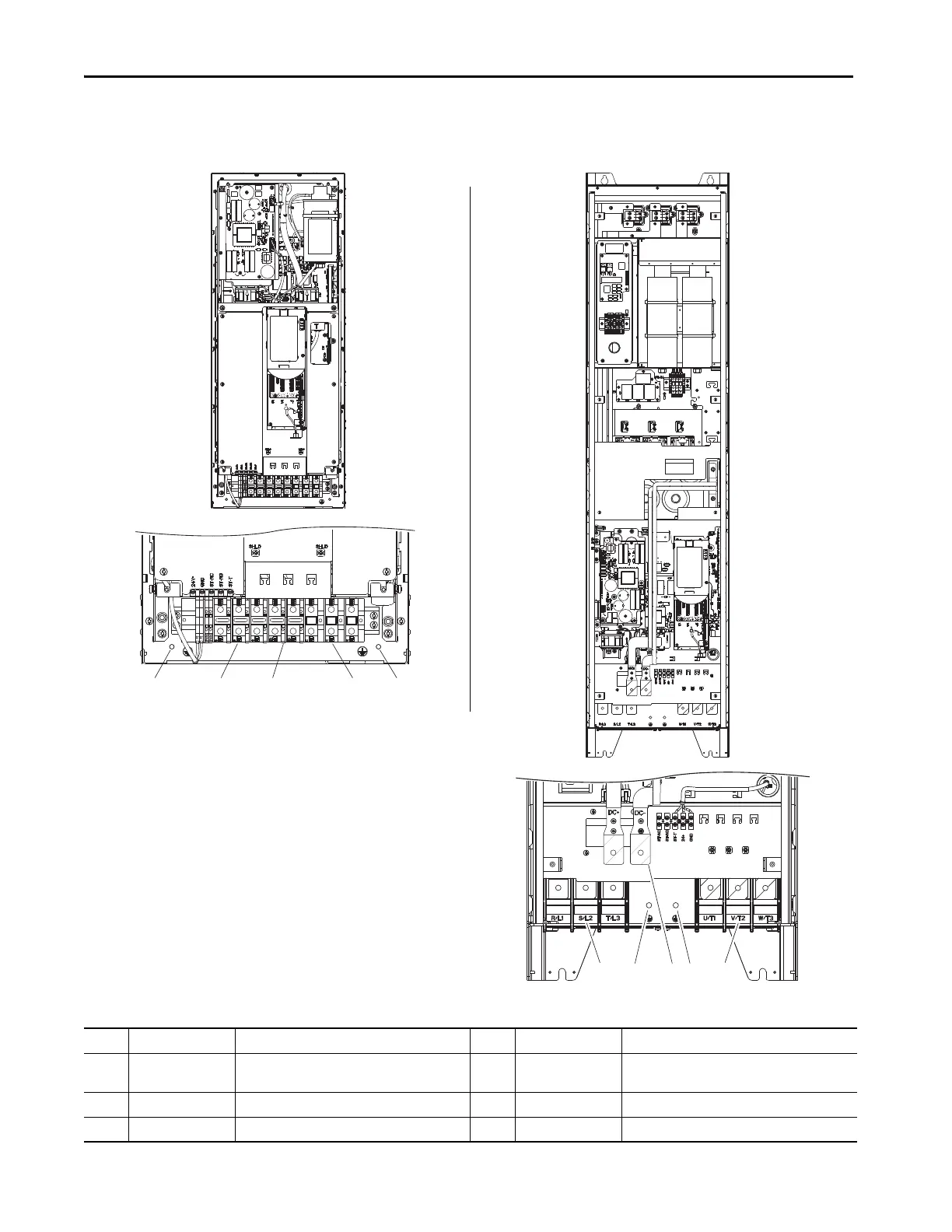

Figure 1 - Frame 5 and 6 Drives
Frame 5 (Shown with Cover Removed for Clarity Only) Frame 6
Table 1 - Frame 5 and 6 Terminal Identification
Item Name Description Item Name Description
1 PE grounding stud Termination point to chassis ground for AC line
shield
4 U/T1, V/T2, W/T3 AC output motor terminals
2 R/L1, S/L2, T/L3 AC line input power terminals 5 PE grounding stud Termination point to chassis ground for motor shield
3 DC+, DC– DC bus terminals — — —
