160 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 7 Control Bay and Control Pod Components

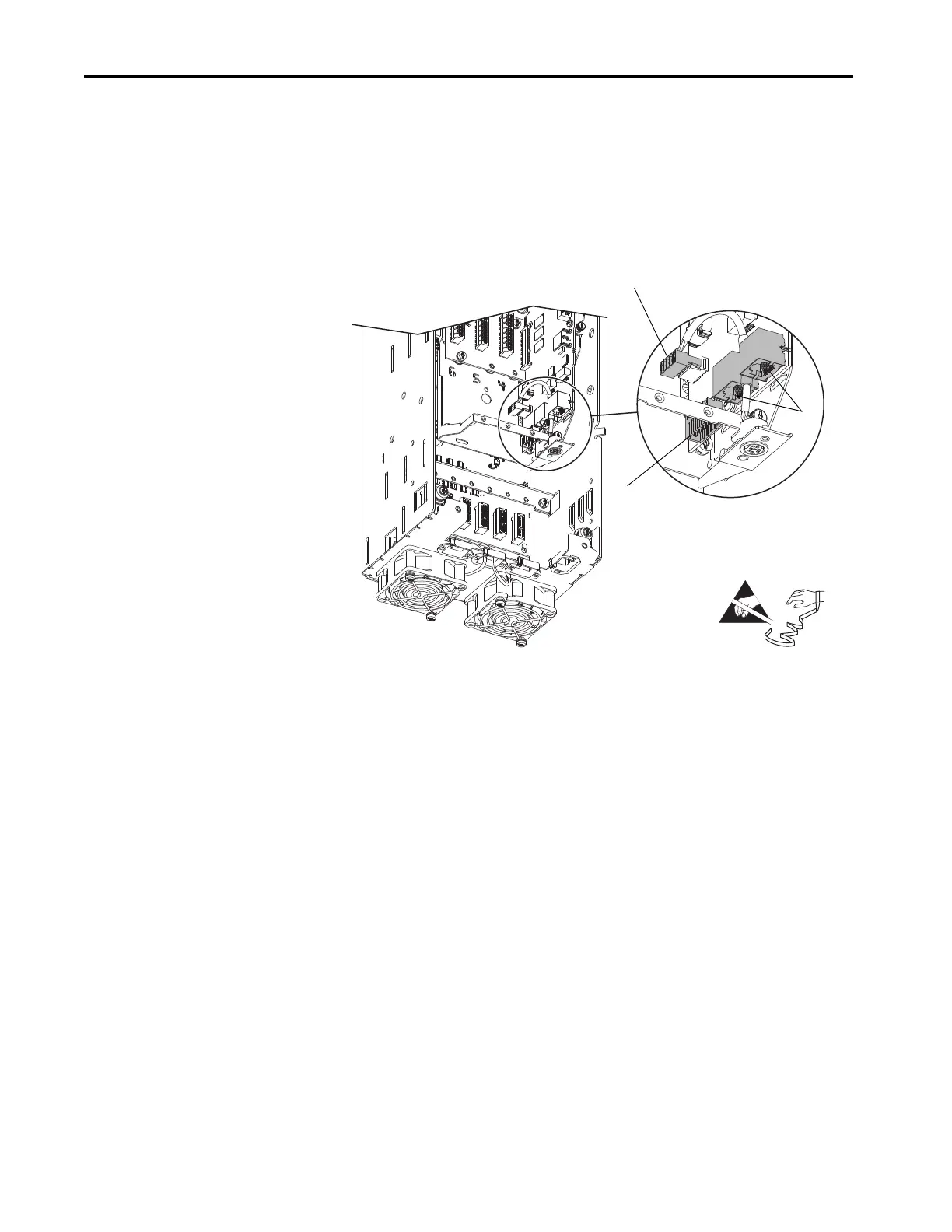

14. Disconnect the HIM plug-in terminal block for the mini-DIN connector
on the control board.
15. Disconnect any Ethernet cables from the ports on the bottom of the main
control board.
16. Disconnect the plug-in terminal block (TB1) on the bottom of the main
control board.
17. If installed, disconnect all option module plug-in terminal blocks.
18. If installed, remove the option module in slot 7, by loosening the two
captive thumb screws on the module and by pulling the board out of the
control pod. The tightening torque for installation is the same as for the
main control board.
To Next Page
