Rockwell Automation Publication 750-TG100B-EN-P - June 2019 167

Control Bay and Control Pod Components Chapter 7

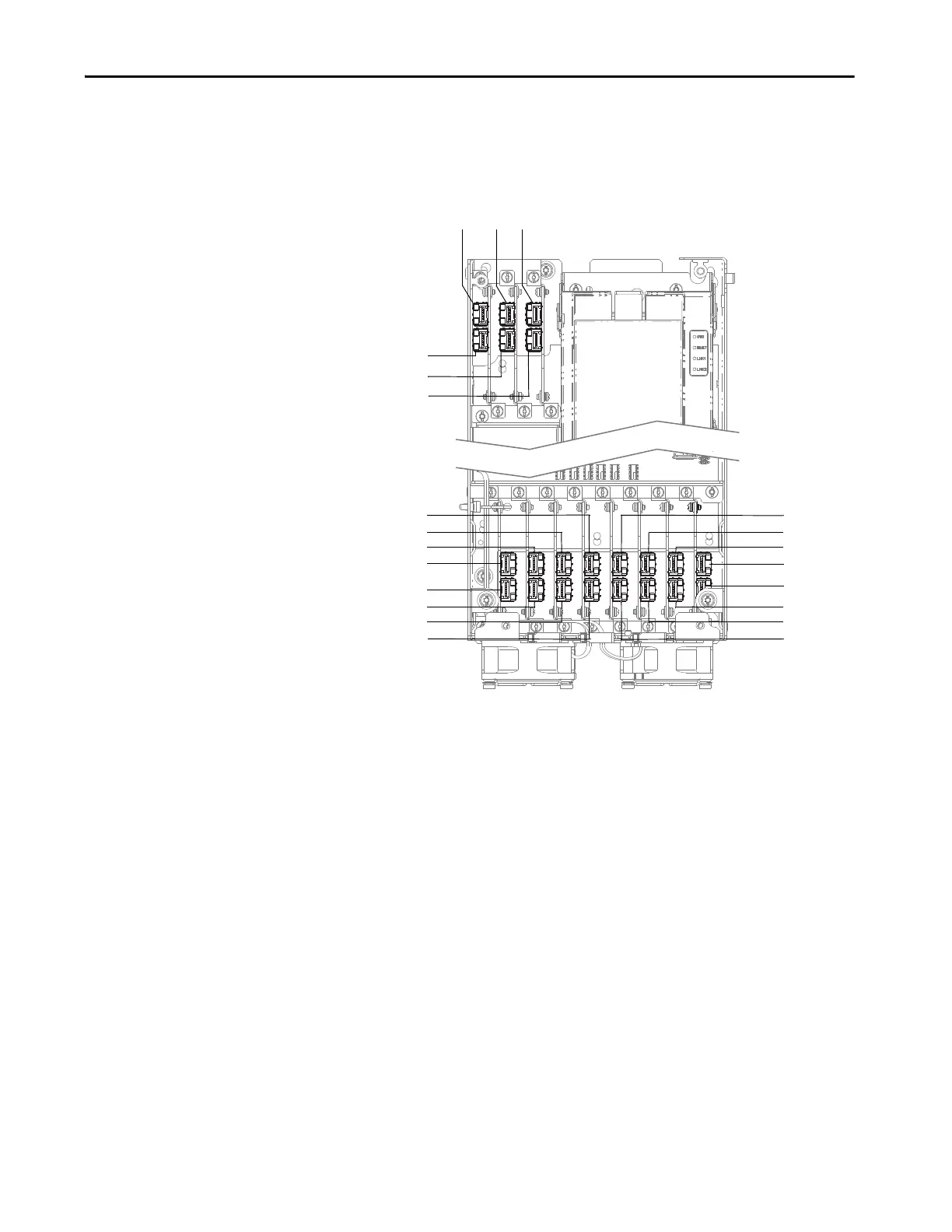

8. For each motor side converter, disconnect the fiber-optic cable from the

Mn port on the fiber transceiver board. Carefully coil the fiber-optic cable

and secure in a protected location. Follow the minimum bend radius

requirement.
