Rockwell Automation Publication 750-TG100B-EN-P - June 2019 191
Input Bay Components Chapter 8

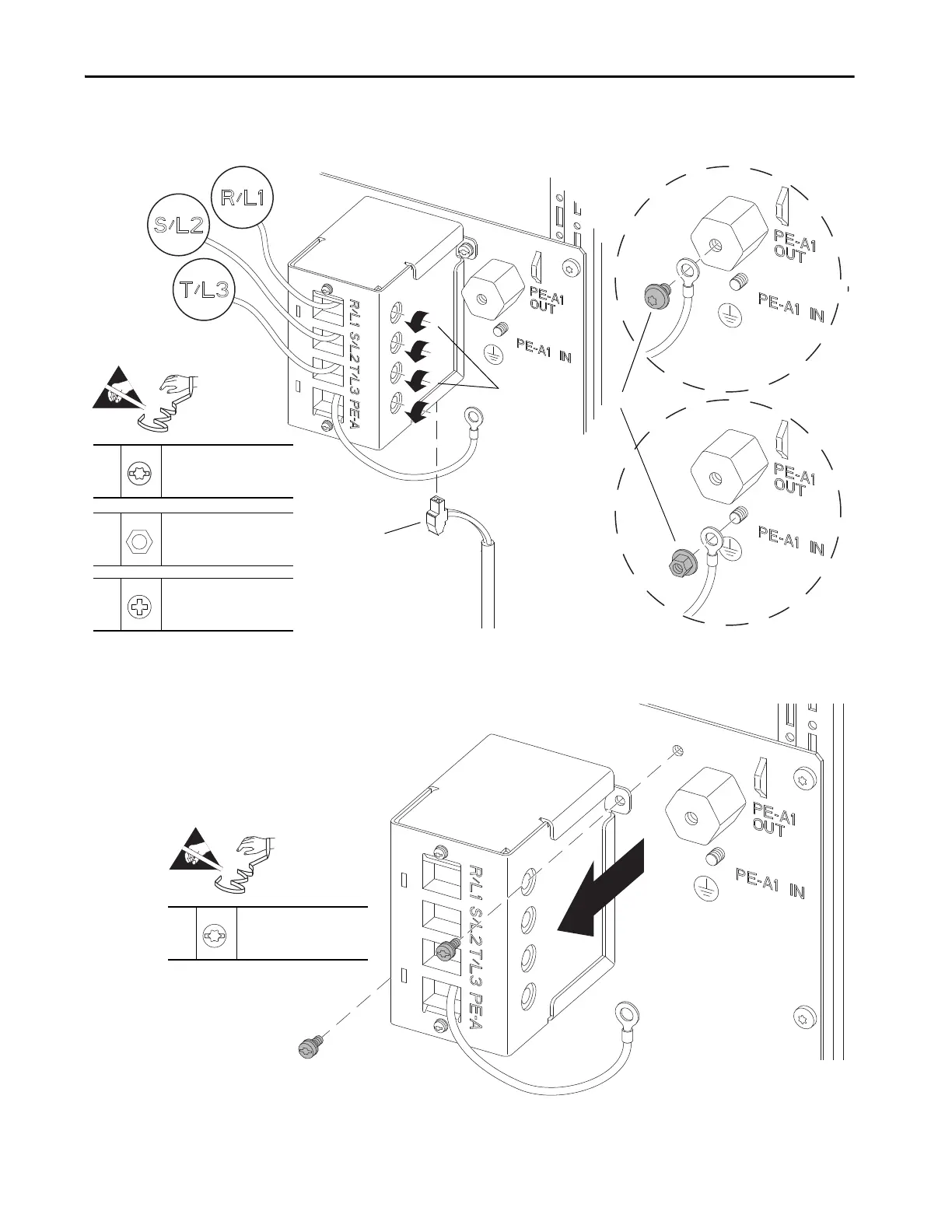

7. Loosen the terminal block screws that secure the wires to terminals
R/L1, S/L2, T/L3, and remove the wires.
8. Remove the two M4 x 10 mm slotted-torx screws that secure the TVSS
module to the panel and remove the module.
7
–
P2
4.0 N•m (35 lb•in)
5
M6 x 10 mm
T25
5.9 N•m (52 lb•in)
6
M6
10 mm
5.9 N•m (52 lb•in)
5
6
7
=
8
M4 x 10 mm
T20 or F - 6.4 mm (0.25 in.)
2.6 N•m (23 lb•in)
=
