Rockwell Automation Publication 750-TG100B-EN-P - June 2019 51
Component Inspection and Test Procedures Chapter 3

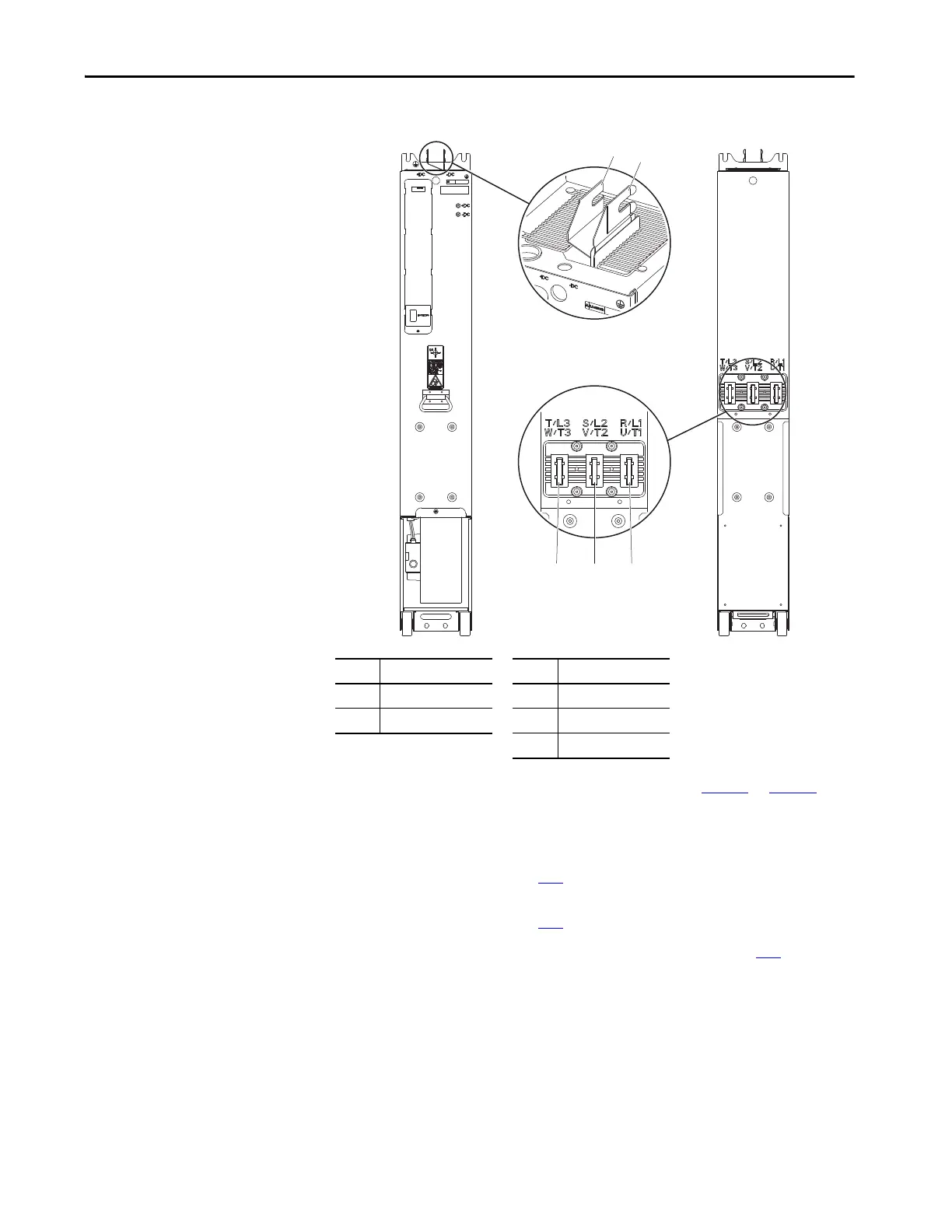

Figure 7 - Frames 8…15 Power Module Power Terminal Locations
5. If the product fails the measurements identified in Tab le 6 or Tab le 7, take
the appropriate action:
• For frames 5 and 6, replace the drive or bus supply.
• For frames 7, replace the power module. See Power Module
Replacement on page 113
.
• For frames 8…15, replace the power module. See Power Module
Replacement on page 236
.
6. Complete the procedures in Chapter 11 - Chapter on page 291
before
placing the drive back into service.
ID Connection ID Connection
1 +DC 3 R/L1, U/T1
2 –DC 4 S/L2, V/T2
5 T/L3, W/T3
1
