78 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 5 Frame 6 Components

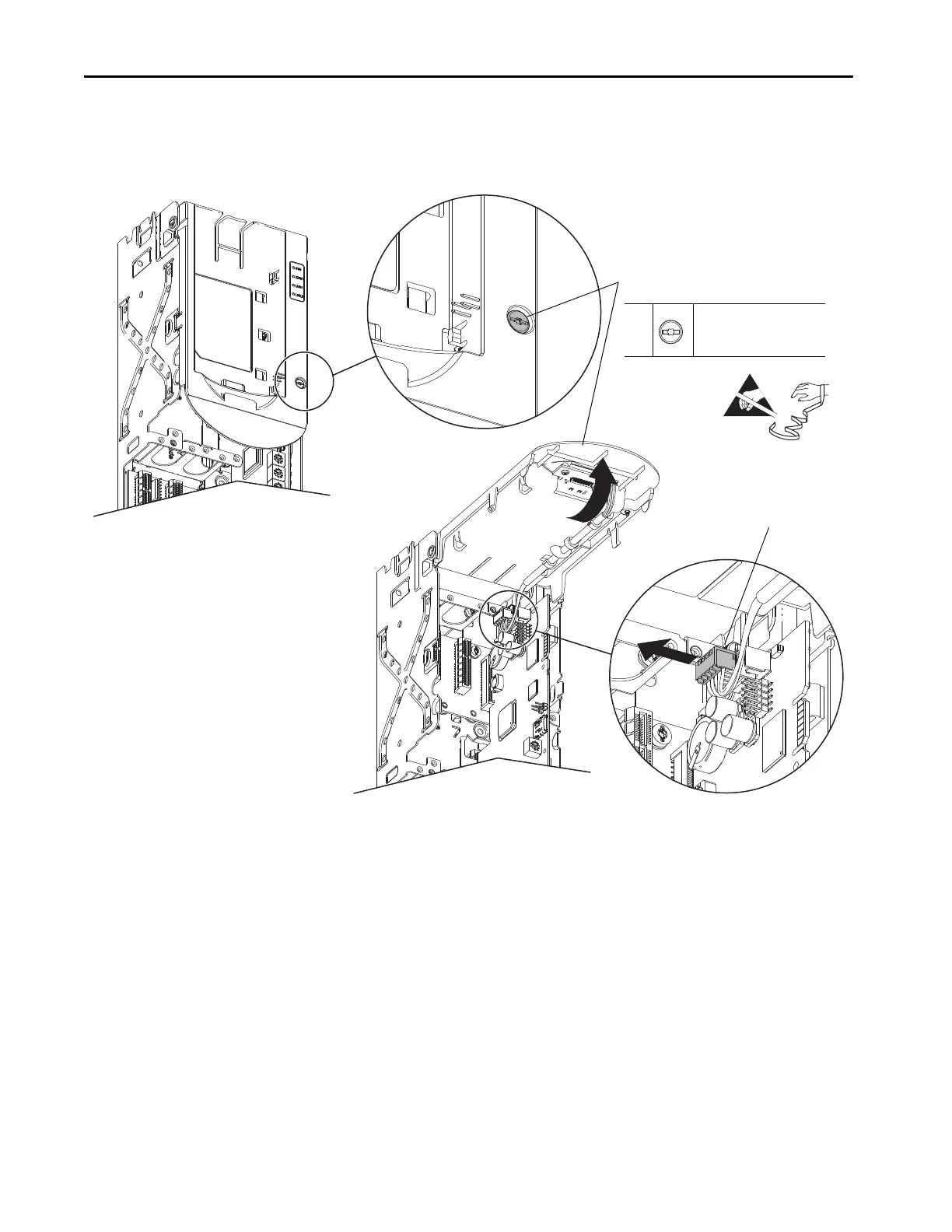

4. Loosen the screw that secures the HIM bezel to the pod chassis, and rotate

the bezel up to a 90° horizontal position.

5. Disconnect the HIM cable from the port on the main control board.

M3 x 6.4 mm

T15 or F - 5 mm (0.19 in.)

0.45 N•m (4 lb•in)

Control Pod Shown Removed

from Drive for Clarity Only.
