4.4.4 Frame horizontal

Now set the frame horizontal (see Figure 4 13).

The frame horizontal is initially oriented to the selection arrows defined in the previous step. Correct the selection

line by aligning it with the transition between the front surface of the slice and the edge of the frame. Refer to the

uppermost points of the transition. These points correspond to the maximum upper box dimension. If necessary,

an alternative reference dimension can also be selected here, provided it is symmetrical on both sides in the

frame. You move the selection line by moving the blue point at the respective end. To do this, you can click

on the corresponding point at the end of the selection line and move it. You can use the zoom mode for a detailed

view.

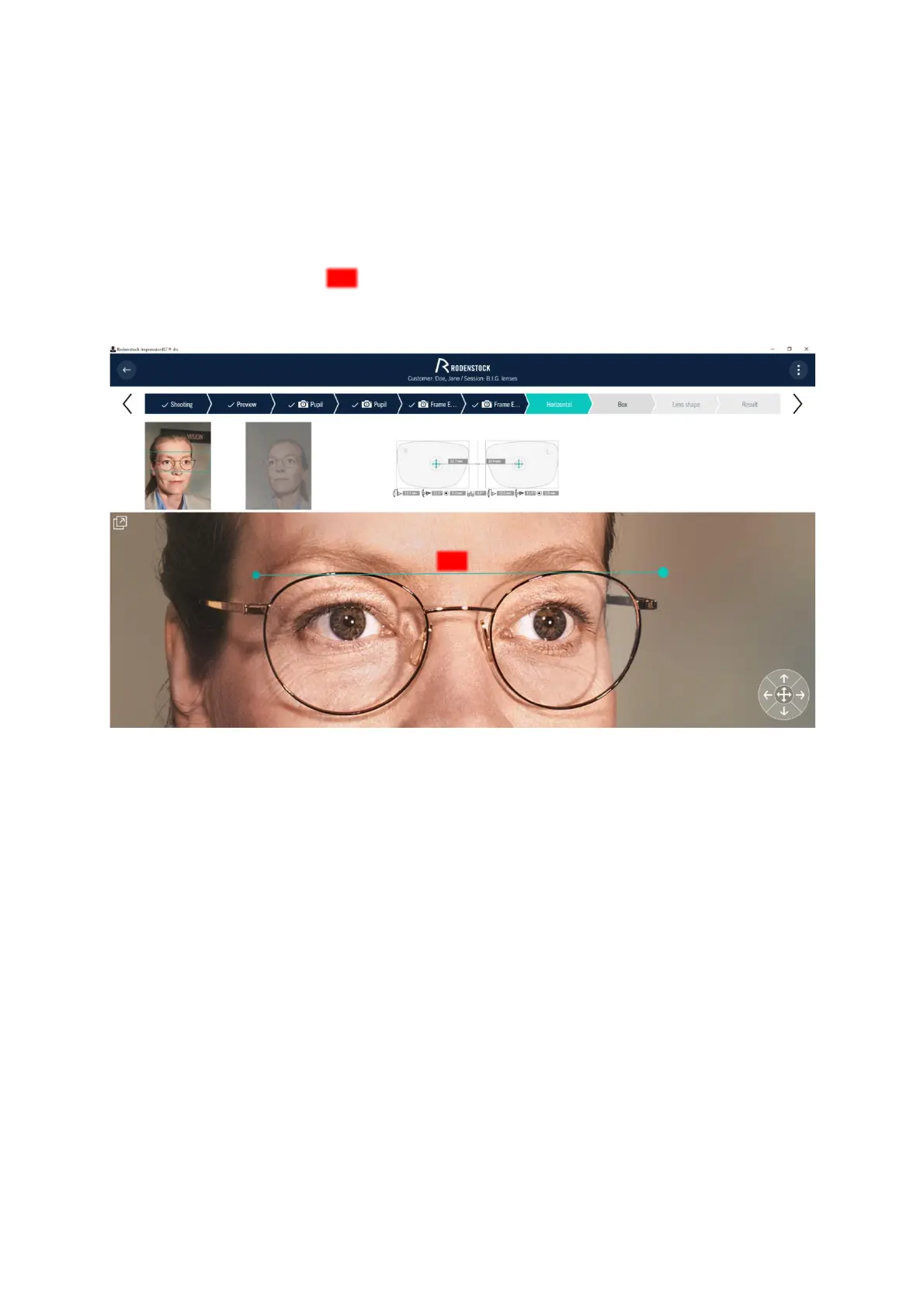

Figure 4-13: Frame horizontal border line
