Editing a Value
Use the following methods to modify a setting’s value.
[INC] [DEC] Buttons
Press the [INC] button to increase the value; press the [DEC]
button to decrease the value.
Purpose Operation
Modifying a value continuously
Hold down the [DEC] button or [INC] button.
Modifying a value rapidly
Hold down the [INC] button and press the [DEC]
button.
Hold down the [DEC] button and press the [INC]
button.
Modifying a value more
greatly
Hold down the [SHIFT] button and press the [DEC]
button. Hold down the [SHIFT] button and press
the [INC] button.
[VALUE] Dial
Turn the dial clockwise to increase the value, or counter-clockwise to
decrease the value.
Purpose Operation
Modifying a value more
greatly
Hold down the [SHIFT] button and turn the [VALUE]
dial.
Display (Touch Panel)
You can directly touch or drag on/off icons, knobs, and sliders in the
screen to switch them on/off or change their value.
Knob Slider Selection buttons
Examples of on/off icons
Drag up or right Value increases
Drag down or left Value decreases.
NUMERIC Window
If you hold down the [SHIFT] button and press the [ENTER] button,
the numeric window appears. This is a convenient way to directly
enter a numeric parameter value from the touch panel.
You can also open a window by touching a <NUMERIC> icon in the
FUNCTION area below the display.
NUMERIC window
Cursor
NOTE
Some parameters don’t support numeric input.
List Window
You can open a list window by directly touching a pulldown menu
in the screen, or by moving the cursor to a parameter and pressing
the [ENTER] button. Use the [E4] knob to select the value.
List window
List window
Pulldown Menu

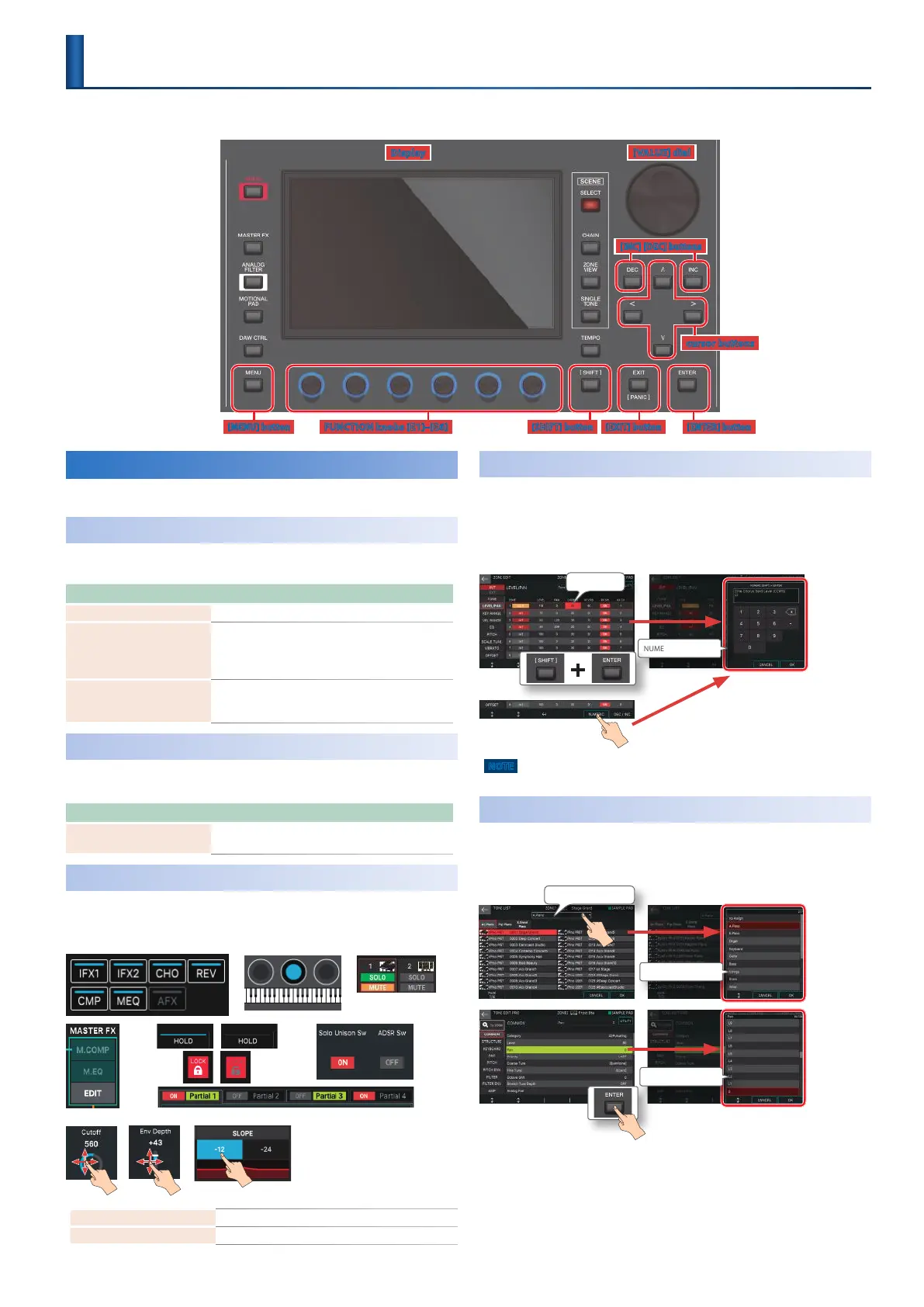

Basic Operation
Here we explain basic operation of the buttons and knobs used to operate the FANTOM.
[VALUE] dial
Display
cursor buttons
[INC] [DEC] buttons
[SHIFT] button [EXIT] button [ENTER] button
[MENU] button
FUNCTION knobs [E1]–[E6]
To Next Page
