Panel descriptions

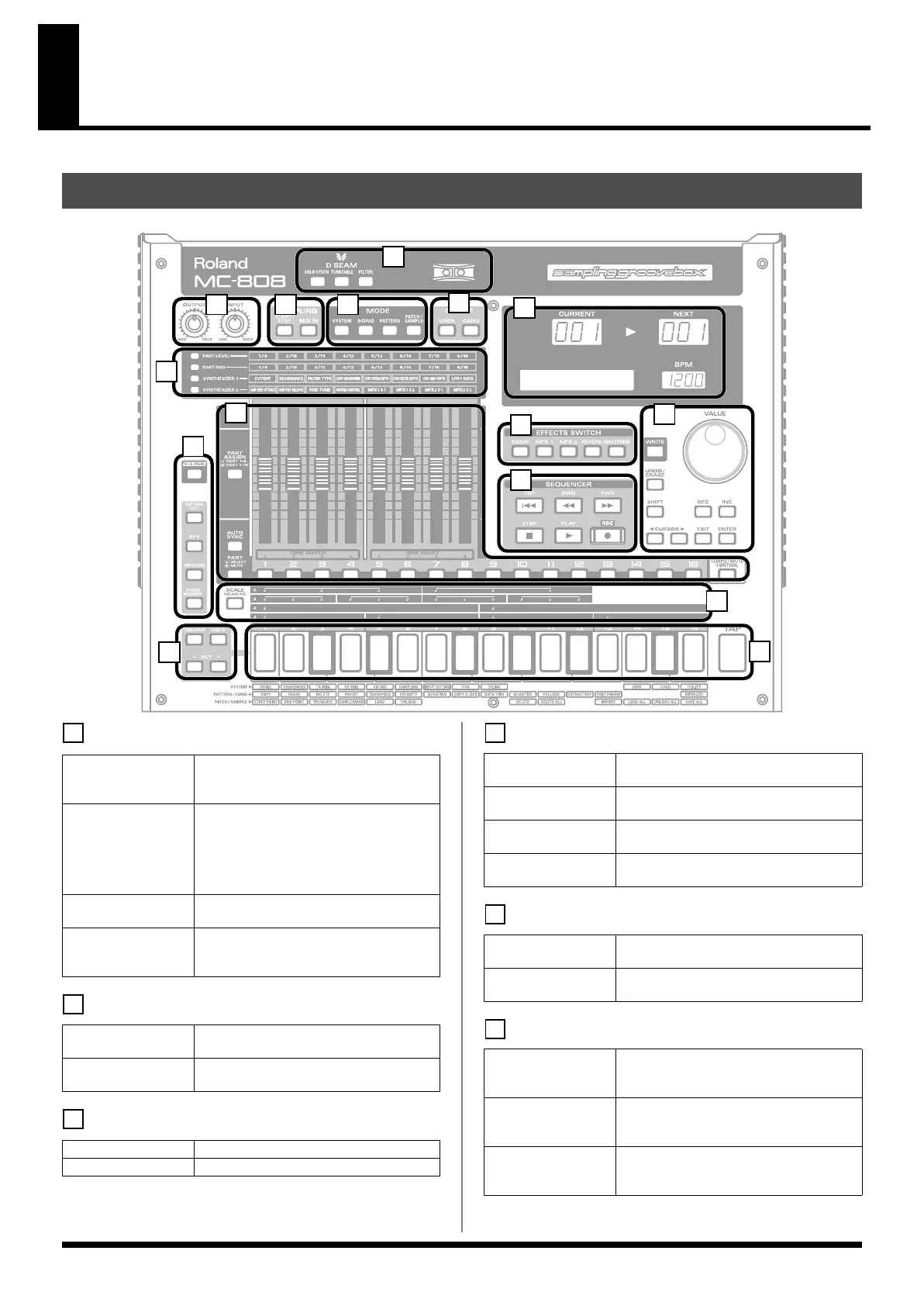

fig.panel_j-001
D BEAM
VOLUME
SAMPLING
MODE
GROUP
Top panel
12
43
1
2
5
6
7
8
10
9
11
13
14
15
D BEAM
(D Beam Control-
lers)
Switches the D BEAM on/off.
You can modify the patterns or sounds by
passing your hand over these (p. 58).
[SOLO SYNTH]
Play the MC-808 as a monophonic synthe-
sizer (p. 59).
* Hold down [SHIFT] and press one of the
corresponding buttons to access the D
BEAM setting screen.
[TURNTABLE]
Use the D Beam to control the pitch (p.
59).
[FILTER]
You can assign a variety of parameters
and functions to D Beam to modify the
sound in realtime (p. 59).
OUTPUT knob
Adjusts the overall volume from the MIX
OUTPUT jacks and the PHONES jack.
INPUT knob
Adjusts the volume of the input from the
INPUT jacks.
[START/STOP]
Starts/stops sampling (p. 112).
[MIX IN]
Switches the external input on/off (p. 57).
1
2
3
[SYSTEM]
Switches the MC-808 to System mode (p.
118).
[SONG]
Switches the MC-808 to Song mode (p.
105).
[PATTERN]
Switches the MC-808 to Pattern mode (p.
41).
[PATCH/SAMPLE]
Switches the MC-808 to Patch/Sample
mode (p. 85).
[USER]
Press this to select patches or rhythm sets
from the User group (p. 87).
[CARD]
Press this to select patches or rhythm sets
from the Card group (p. 87).
[PART LEVEL]
After pressing this button, you can use the
motorized faders to adjust the level of the
parts (p. 46).
[PART PAN]
After pressing this button, you can use the
motorized faders to adjust the pan setting
of the parts (p. 46).
[SYNTHESIZER 1]
[SYNTHESIZER 2]
After pressing these buttons, you can use
the motorized faders to adjust patch pa-
rameters (p. 89).
4
5
6
