Roland MC-808 User Manual

17
Getting ready
The MC-808 is not equipped with an internal amp or speakers. To hear sound, you will need to connect it to a keyboard amp or audio

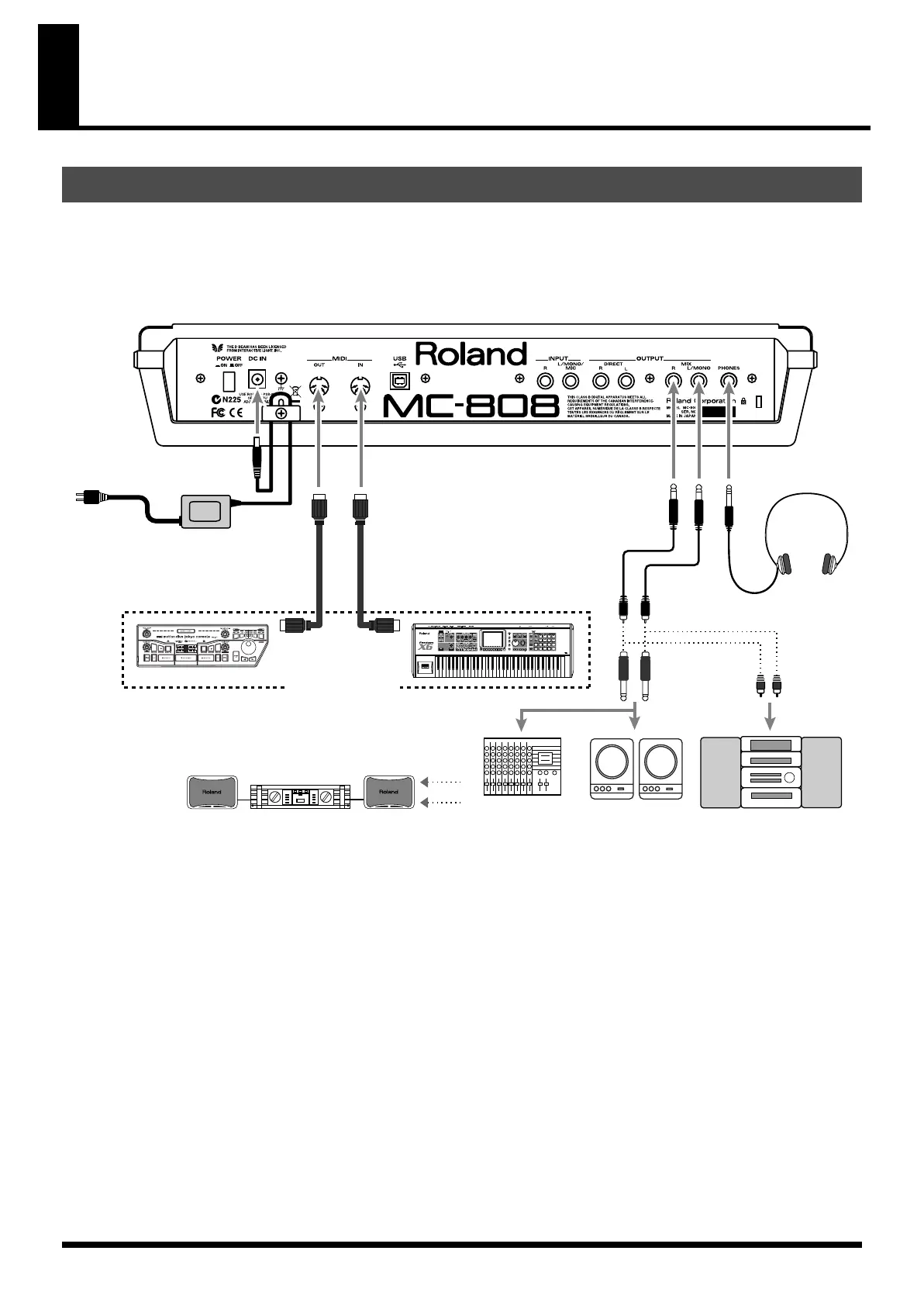

system, or connect headphones. Refer to the following figure when connecting the MC-808 with external devices.
921
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before
making any connections.
fig.Connect.e
1. Before making any connections, confirm that power to all devices has been turned off.
2. Connect the AC power cord included with the MC-808 to the unit, then plug the other end into a power outlet.
3. Connect audio and MIDI cables as shown in the diagram. If connecting headphones, plug the headphones into the
PHONES jack.
Making connections
Connect the AC adaptor
to the MC-808, and plug
the power cord into an
electrical outlet.
Mixer, etc.
Speaker
(with built-in Amp)
Stereo set, etc.
Headphones
Make connections to
the MIX OUTPUT jacks
Power amp
MIDI OUT
MIDI IN
MIDI IN
MIDI OUT
External MIDI device
(MIDI Keyboard,
Sequencer, etc.)
MC-808_r_e.book 17 ページ ２００７年７月１７日 火曜日 午後５時１分

Roland MC-808 Specifications

General

Polyphony	128 voices
Sampling Frequency	44.1 kHz
Pads	16 velocity-sensitive pads
Sequencer	Yes
Sample Rate	44.1 kHz
Effects	Reverb, Chorus
Display	240 x 64 dot graphic LCD
Connectivity	MIDI In/Out, USB
Audio Inputs	2 x 1/4"
Audio Outputs	4 x 1/4"
Type	Groovebox
Sound Engine Type(s)	Sample-based synthesis
Storage	CompactFlash
Power Supply	AC Adaptor
Sequencer Resolution	480 ticks per quarter note
