13
Overview
Panel Descriptions

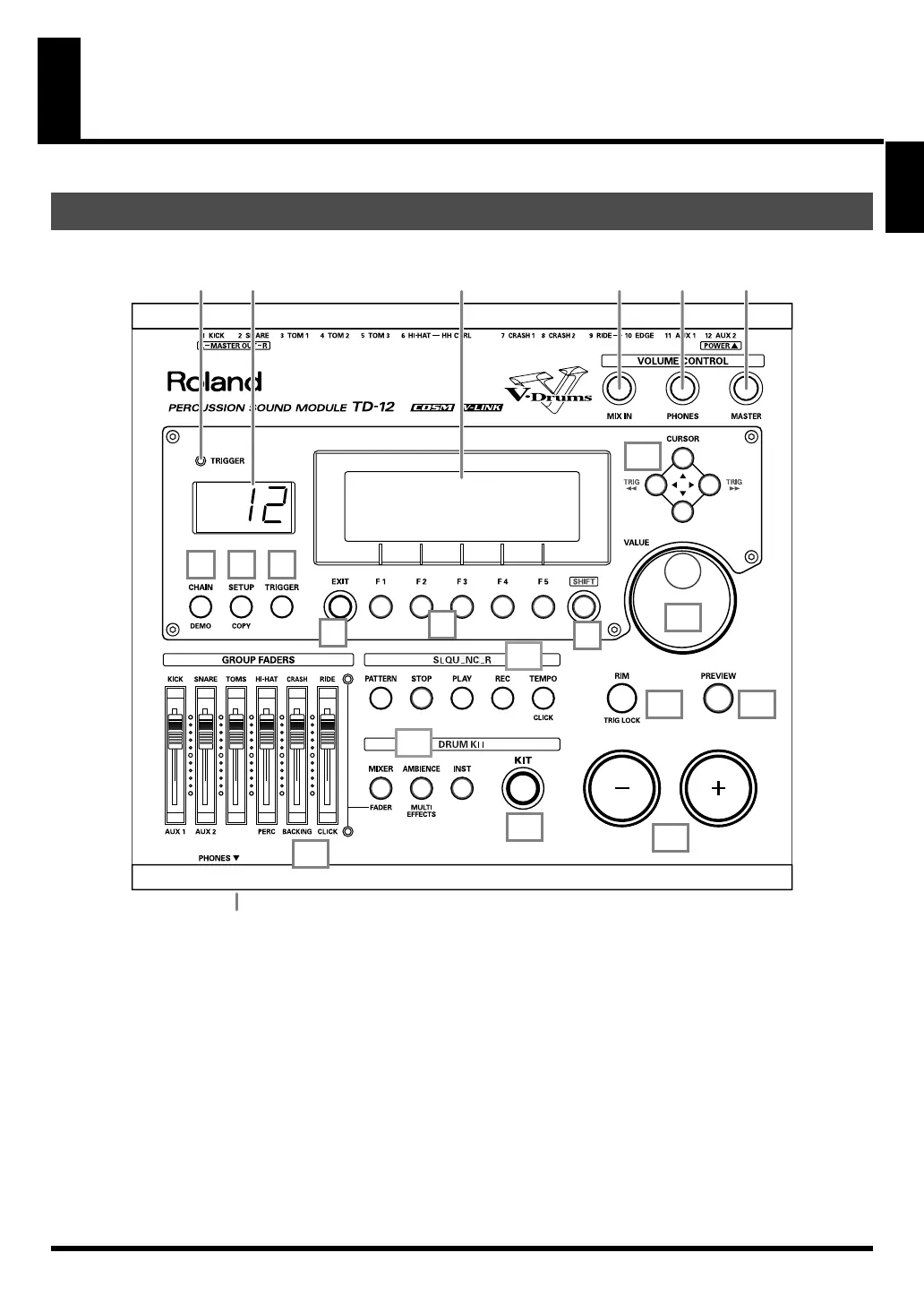

fig.top
1.
Trigger Indicator
This lights up each time a trigger signal is received from a
pad. It monitors the pad connection and is helpful when
customizing trigger parameters.
2.
LED Display
Displays the Kit number (currently selected drum kit).
3.
Graphic Display
During normal performance, you see the kit name and
other information. When editing, relative graphics and
text will appear depending on the edit mode you are in.
* In this owner’s manual, this will be referred to as “the display.”
4.
CHAIN Button
A Chain allows you to set up a customized order for
playing your kits. There are 16 Chains (32 steps each).
Chains can be named also (p. 80).
5.
SETUP (COPY) Button
For access to functions that affect the TD-12 globally,
such as MIDI parameters etc. (p. 72)
You can copy drum kit, instrument, and other settings by
pressing this button together with the SHIFT button (p.
70).
Top Panel
21
22
3 14 15 16
11
19
12
10
13
17
18
20
21
65
7
8
9
4
