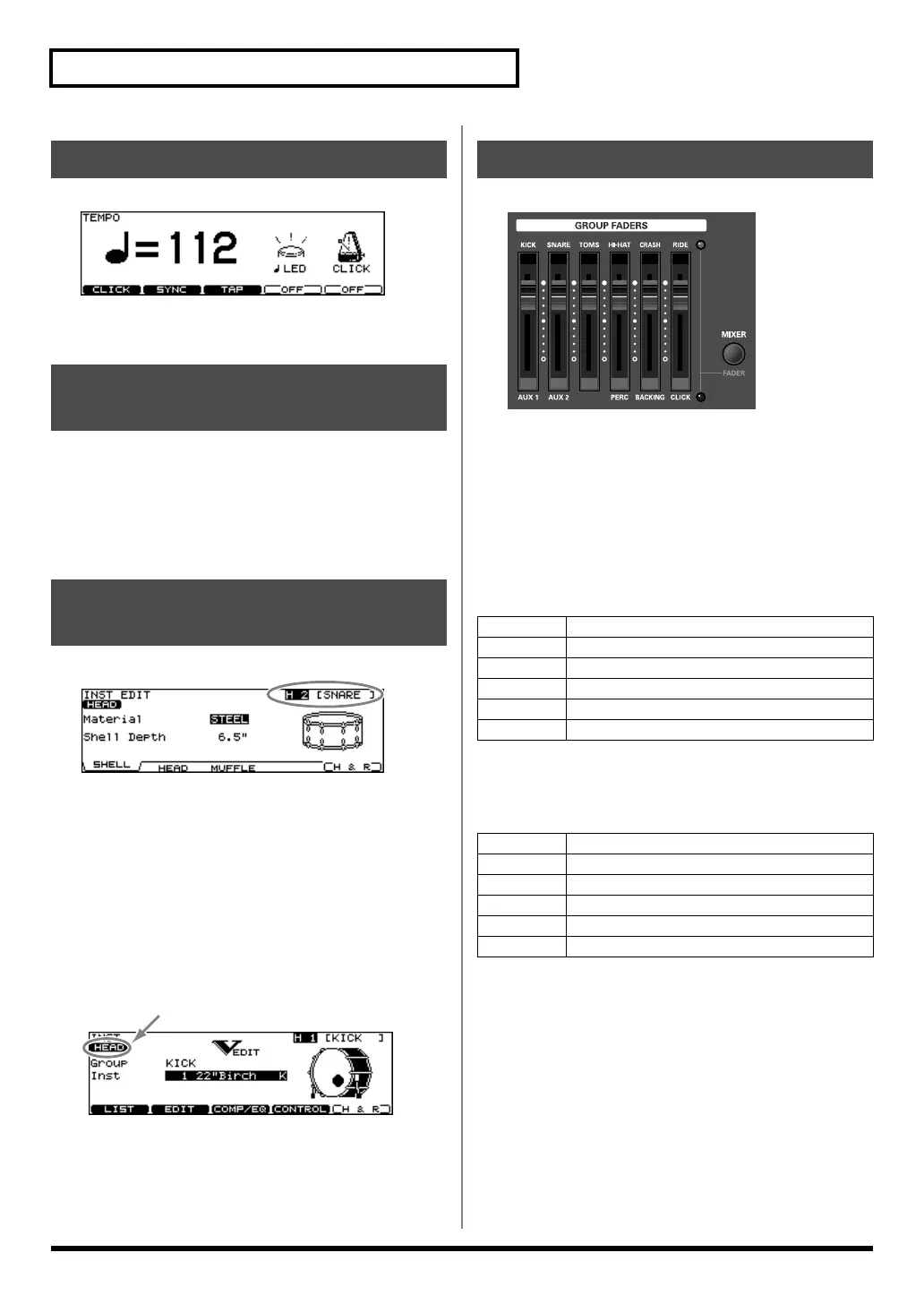

Roland TD-12 - Tempo and Display Adjustments; Group Faders for Volume Control

26
Button Operation and Displays
fig.06-Tempo1_70
To adjust the tempo of the sequencer and click, use [+/-] or
[VALUE] in the screen displayed by pressing [TEMPO].
Display contrast can be influenced by location and lighting.
When needed, adjust the display contrast by:
holding down [KIT] and turning [VALUE] .
* You can also adjust it in the screen displayed by pressing
[SETUP] - [F3 (CONTROL)] - [F3 (LCD)] (p. 77).
fig.00-005_70
Many edit screens require you to hit a pad or press the
[PREVIEW] button to access the parameters you want. The
upper right of the display will show the number and trigger
input jack name of the corresponding pad. The first character
(“H” or “R”) stands for Head or Rim. ([RIM] lights up when
played.)
You can use the CURSOR (TRIG) buttons and [PREVIEW] to
get the same results. In cases where settings for the head and
rim can be edited separately, the following characters will also
be displayed.
fig.00-006_70
fig.00-009
Use [GROUP FADERS] sliders to adjust the volume.
If you press the [FADER] button, the function of the faders
will change as is explained in the chart below. An LED will
light up at the upper and lower right of the faders to indicate
which set of sounds is active.
• When upper indicator is lit, you can adjust the volume of
following trigger inputs.
• When lower indicator is lit, you can adjust the volume of
following trigger inputs and sequencer parts.
Example: Adjusting the Snare Volume
1. Press [FADER] so the upper indicator is lit.
2. Move the [GROUP FADERS] [SNARE] slider.
The slider position shows the current snare volume.
* After switching with [FADER], the values for the [GROUP
FADERS] sliders may not reflect the actual volume of the
sound assigned to that fader. So after switching, be sure to
move the faders a bit before making your setting.
* This will NOT affect the independent volume balance for each
kit in: Mixer Settings (p. 39).
How to Adjust the Tempo
Adjusting the Display
Contrast
About the Display in the
Upper Right of the Screen
Group Faders
KICK 1 (KICK)
SNARE 2 (SNARE)
TOMS 3 (TOM 1), 4 (TOM 2), 5 (TOM 3)
HI-HAT 6 (HI-HAT)
CRASH 7 (CRASH 1), 8 (CRASH 2)
RIDE 9 (RIDE), 10 (EDGE)
AUX 1 11 (AUX 1)
AUX 2 12 (AUX 2)
(none) –
PERC Percussion part (p. 57)
BACKING Backing part (p. 56)
CLICK Metronome click (p. 62)
