Setting Up the Kit
1.
Attach the stand holder (included with the optional drum stand) to the TD-12.

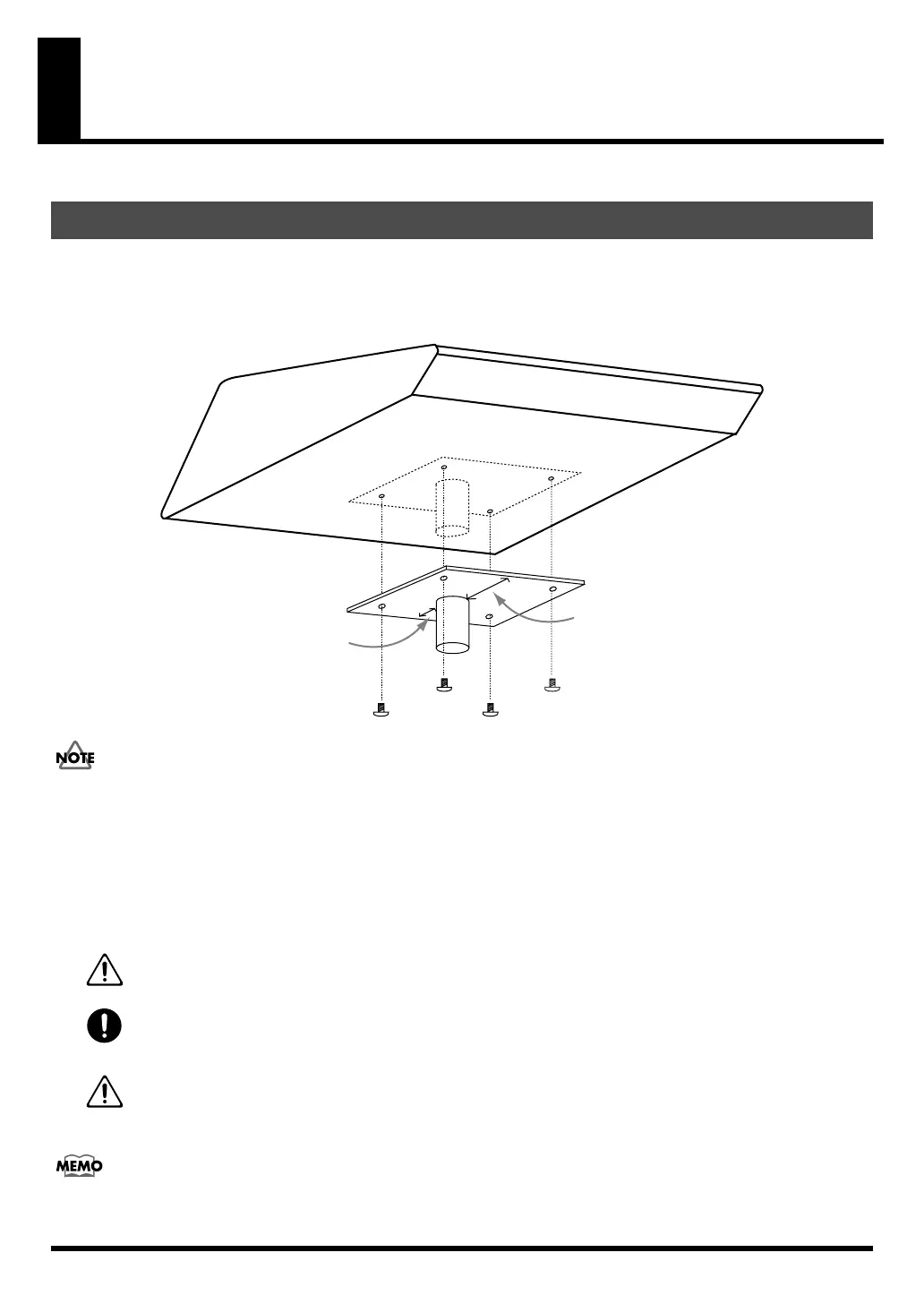

Using the screws attached to the bottom panel, attach the holder so the unit is oriented as shown in the diagram.
* ONLY use the 12 mm screws (M5 x 12) provided with the TD-12. Other screws may damage the unit.
fig.StandHolder.e
928, 929
• When turning the unit upside-down, get a bunch of newspapers or magazines, and place them under the
four corners or at both ends to prevent damage to the buttons and controls. Also, you should try to orient
the unit so no buttons or controls get damaged.
• When turning the unit upside-down, handle with care to avoid dropping it, or allowing it to fall or tip over.
2.
Attach the TD-12 and stand holder to the drum stand (such as the optional MDS-12).
See the owner’s manual for the stand for details on assembling the drum stand and attaching the TD-12.
005
This unit should be used only with a stand that is recommended by Roland.
006
When using the unit with a stand recommended by Roland, the rack or stand must be carefully placed so it is level
and sure to remain stable. If not using a rack or stand, you still need to make sure that any location you choose for
placing the unit provides a level surface that will properly support the unit, and keep it from wobbling.
101c
This TD-12 for use only with Roland stand MDS series. Use with other stands is capable of resulting in instability
causing possible injury.
The optional APC-33 All Purpose Clamp can be attached to a pipe of 10.5–28.6 mm radius in case you
want to mount the TD-12 on a cymbal stand or other such stand.
Mounting the TD-12 on the Stand
Narrow
Wide
