Chapter 9. Settings for the Entire TD-12 [SETUP]

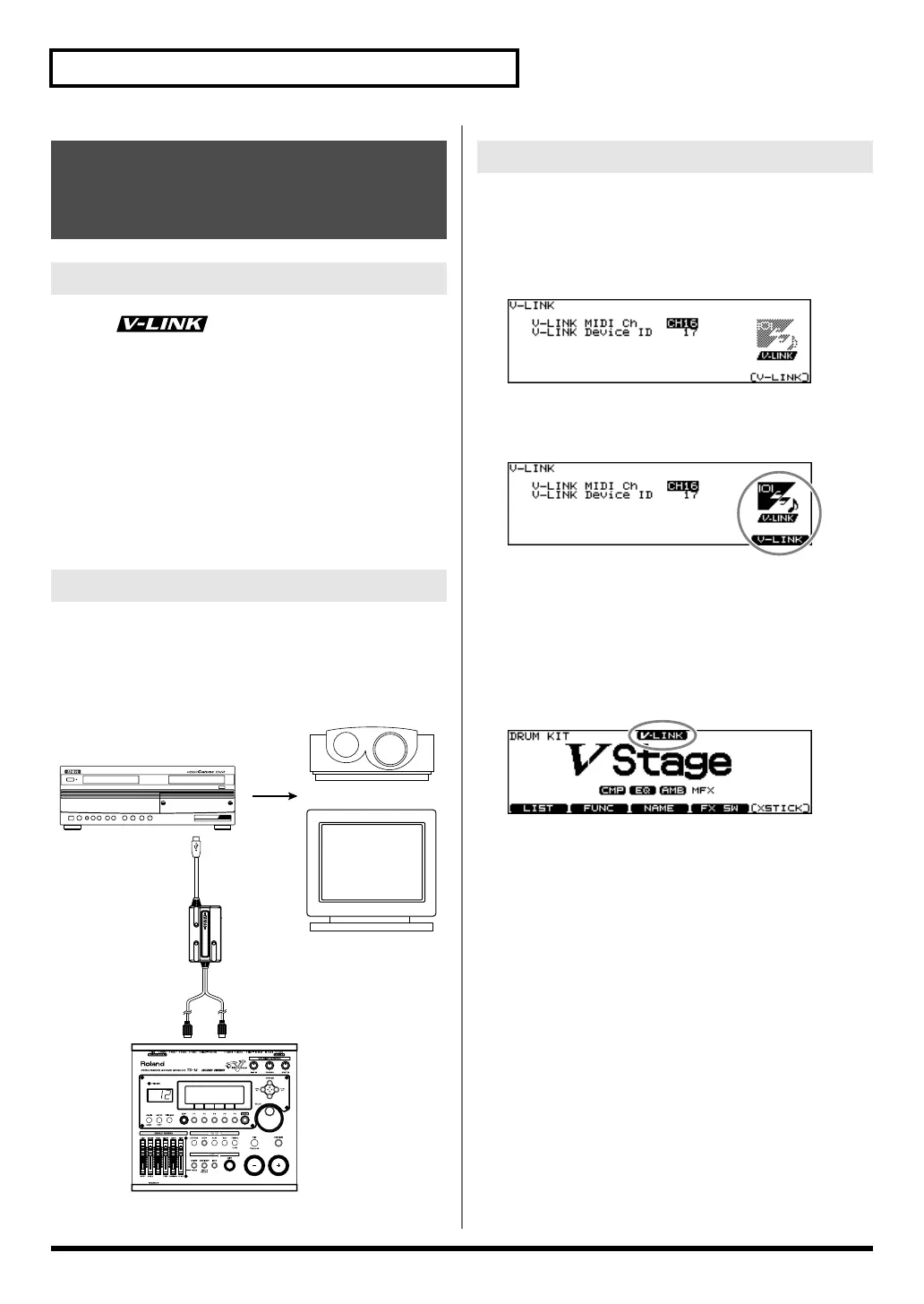

V-LINK ( ) is a function that allows music and
images to be performed together. By using MIDI to connect
two or more V-LINK compatible devices, you can easily enjoy
performing a wide range of visual effects that are linked to the
expressive elements of a music performance.
For example, by using the TD-12 and Edirol DV-7PR together,
you can use the pads connected to the TD-12 to switch the
Edirol DV-7PR’s images (clips/palettes).
* In order to use V-LINK with the TD-12 and Edirol DV-7PR,
you will need to make connections using an Edirol UM-1X/
UM-1SX (sold separately).
* Before connecting this unit to other devices, turn off the power
to all units. This will help prevent malfunctions and/or damage
to speakers or other devices.
Use an Edirol UM-1X to connect the TD-12’s MIDI OUT
connector to the Edirol DV-7PR’s remote jack.
fig.V-LINKconnect.e
Turning V-LINK On/Off
1. Press [SETUP] - [F4 (V-LINK)].
[SETUP] lights, and the “V-LINK” screen appears.
fig.09-VLink_70
2. Press [F5 (V-LINK)] to turn the V-LINK function
ON and OFF.
fig.09-VLinkOn1_70
* Before turning V-LINK on, turn the Edirol DV-7PR’s power
on.
3. Press [KIT] to display the “DRUM KIT” screen.
When V-LINK is on, the V-LINK icon appears in the “DRUM
KIT” screen.
fig.09-VLinkOn2_70
* The V-LINK function will always be OFF when you turn the
TD-12’s power on.
V-LINK MIDI Ch (V-LINK MIDI Channel)
When V-LINK function is on, the performance data recorded
in the backing part of the sequencer is transmitted on this
channel.
* At the factory settings, this is set to “CH16.”
V-LINK Device ID
Set this ID to match the device ID number of the video
equipment which is controlled by the TD-12. If this is set to
“128,” you can control the video equipment regardless of the
device ID number of it.
* At the factory settings, this is set to “17.”
Synchronizing Images to a
TD-12 Performance
[F4 (V-LINK)]
What is V-LINK?
Connection Examples
Edirol DV-7PR
Display
Edirol UM-1X
Projector
TD-12
MIDI OUT
REMOTE
Using V-LINK
