INSTALLATION MANUAL

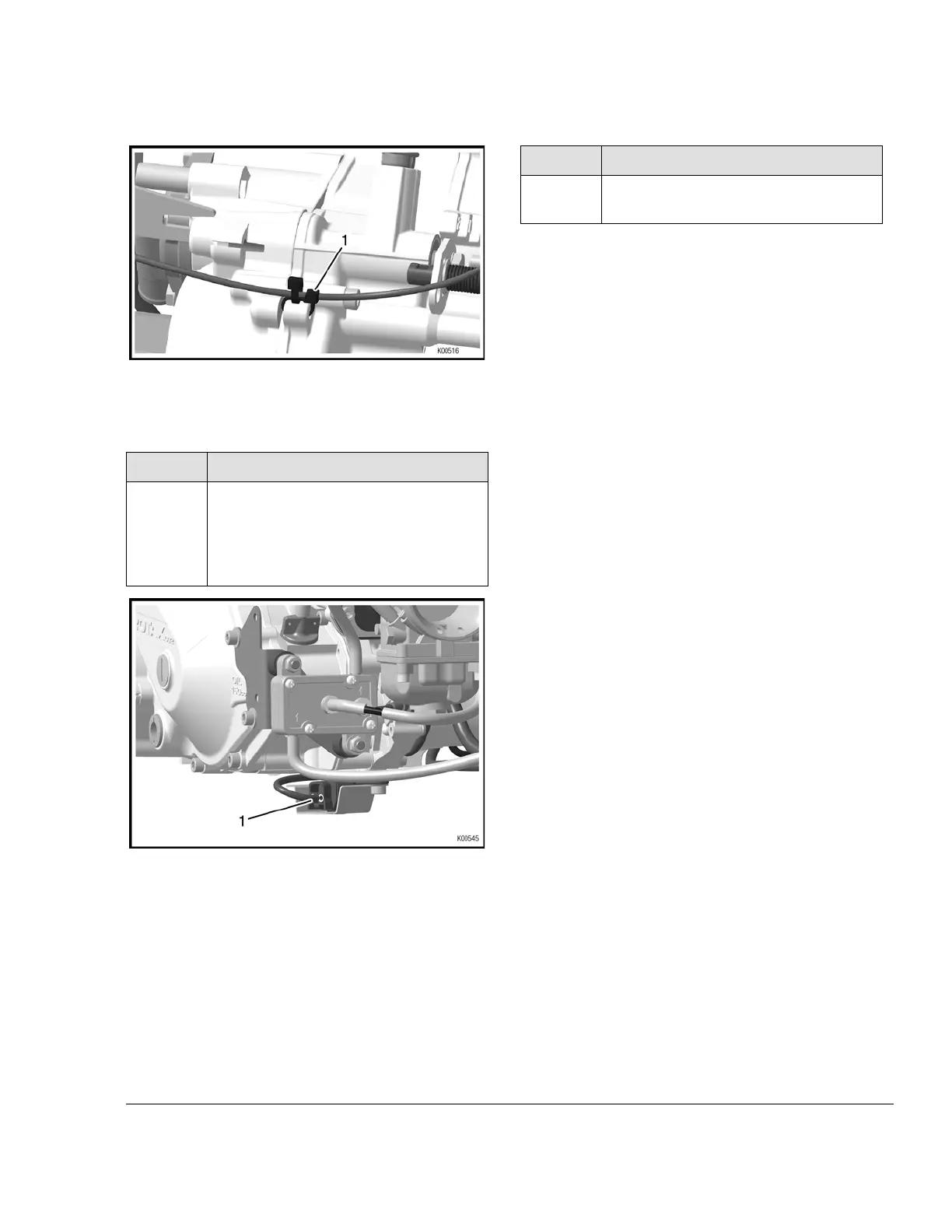

Figure 4.14

Tie wrap

Step

Procedure

8 Connect pick up connector to pick up

sensor (pos. 1). Pay attention to the

engagement of the connector. See al-

so section: Direct attachment of the

engine to chassis.

Figure 4.15

Pick up sensor

NOTE

If it's not possible to plug in the connector of the

pick-up sensor, unscrew the pick-up sensor and

change the angle or direction. See also section:

Direct attachment of the engine to chassis.

Step

Procedure

9 Attach ignition cables to the spark

plug.
