Umbauanleitung/retrofit instruction 125 MAX Series

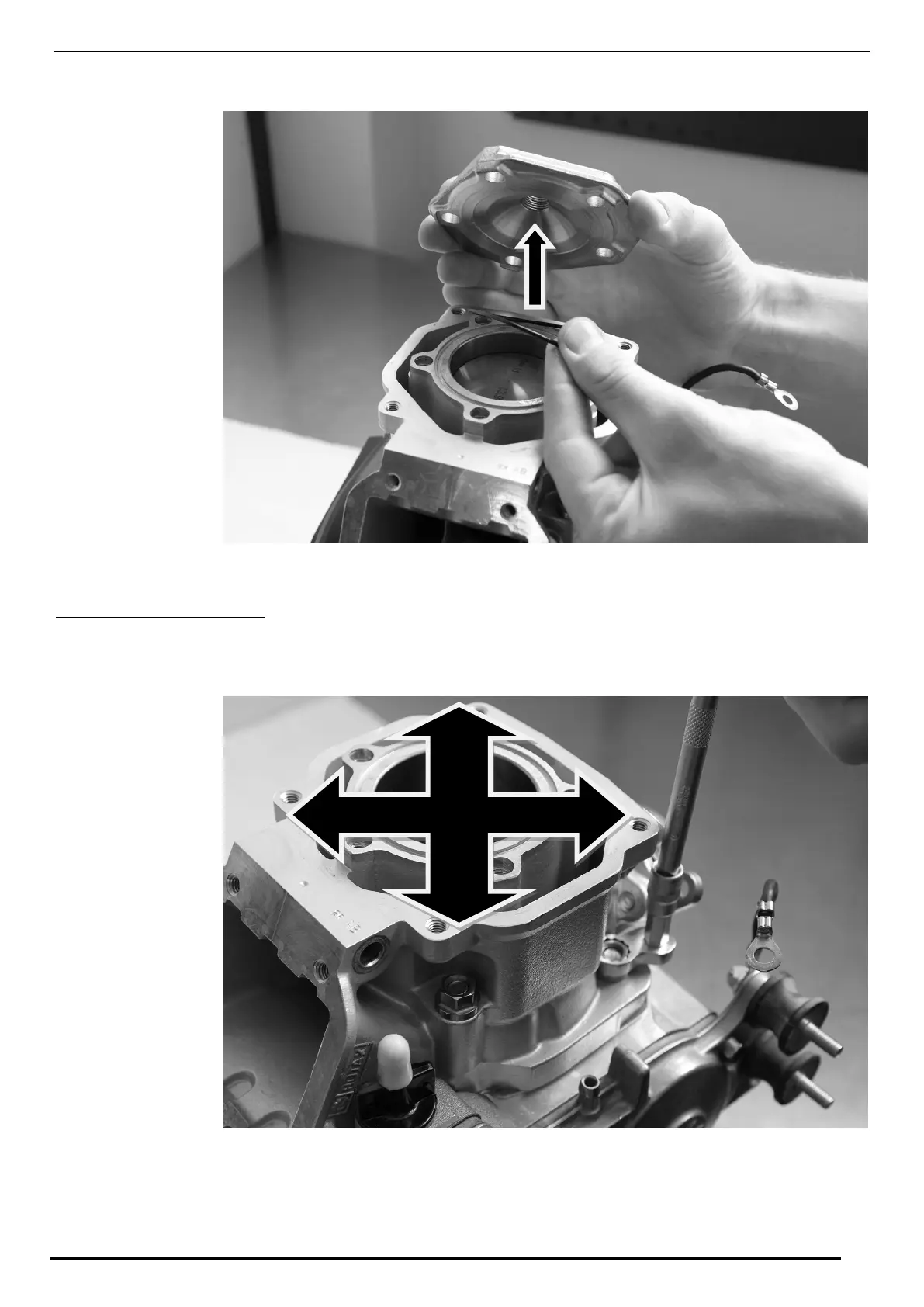

Brennraumeinsatz entfernen. Auf Dichtung achten!
Bild 21 (K00325)
4.4.3) Zylinder demontieren
4 SK-Muttern M8 mit Spezialwerkzeug TNr.: 676110 vom Zylindergehäuse kreuzweise
lösen.
Bild 22 (K00326)
Seite/page 17/59
Ausgabe/Edition 09/2014
