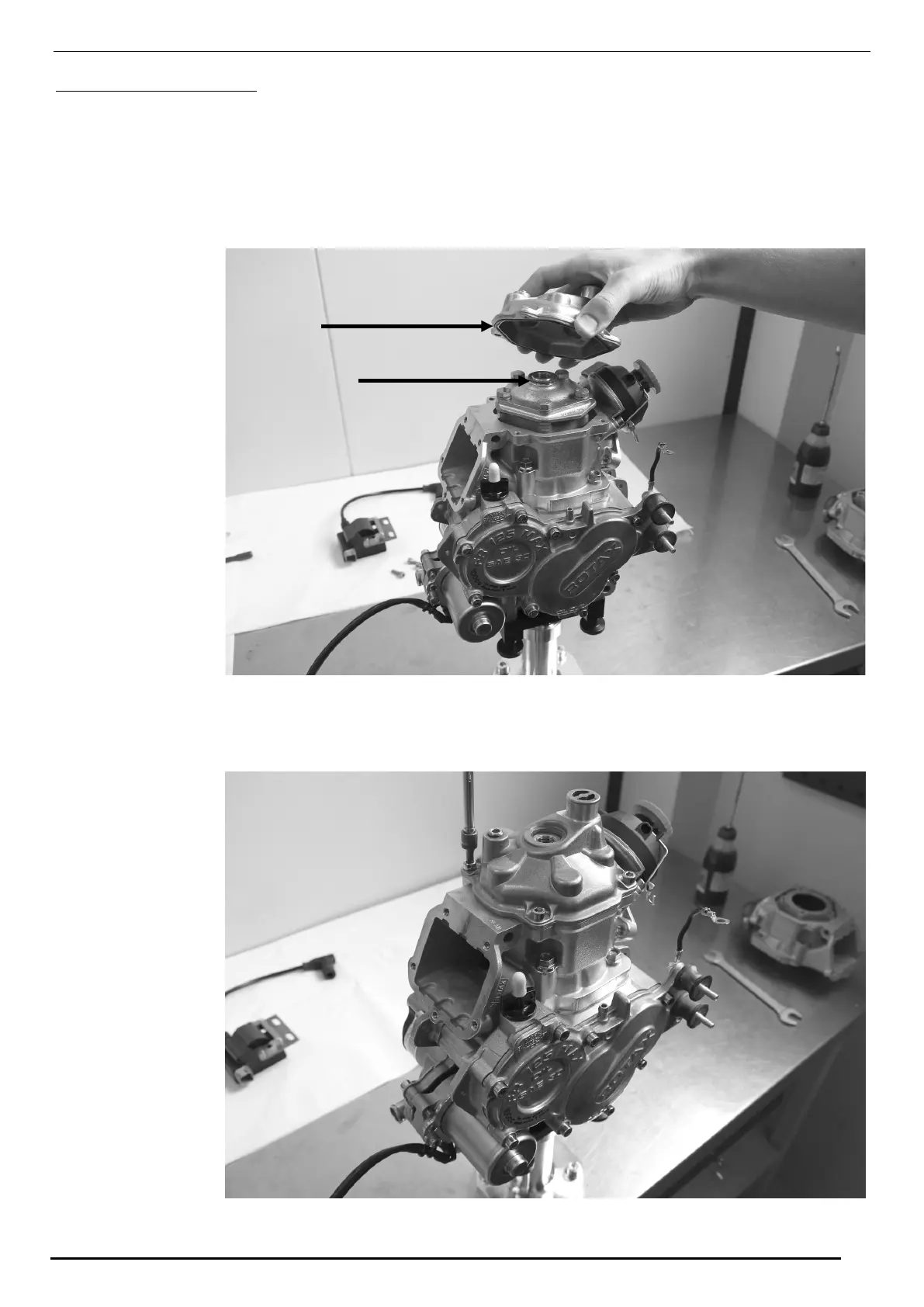

5.1.4) Cylinder head cover
 Place O-ring (Pos. 1 / Fig. 37) on the combustion chamber insert.
 Lubricate the O-ring (Pos. 2 / Fig. 37) lightly to ensure that it adheres better tot he groove of
the cylinder head cover, otherwise fix it with sealant (Silastic).
 Insert O-ring (Pos. 2 / Fig. 37) into the groove of the cylinder head cover.
Fig. 37 (K00344)
 Tighten the cylinder head cover crosswise with 4 Allen screws.
Tightening torque 10 Nm (90 in.lb).
Fig. 38 (K00345)
1
2
Seite/page 51/59 Ausgabe/Edition 09/2014

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
