Rotax 125 Max - 2) Radiator

Umbauanleitung/retrofit instruction 125 MAX Series

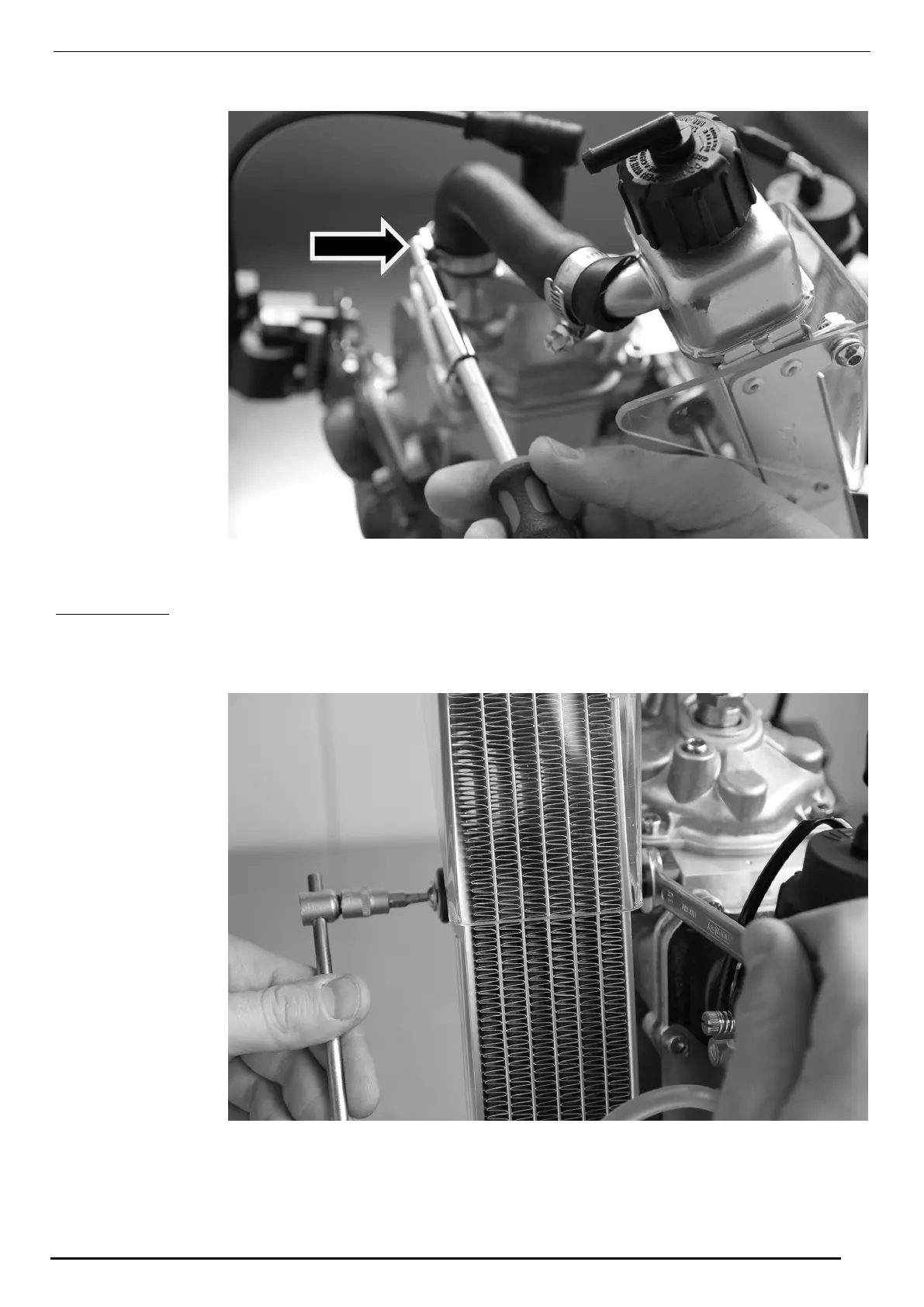

 Loosen clamp on coolant hose at the cylinder head cover. Disconnect the coolant hose.
Fig. 4 (K00303)
4.1.2) Radiator
 Loosen Allen screw with rounded flange head M6x16 on radiator bracket, if necessary
counter with open-end wrench (SW13).
Fig. 5 (K00306)
 Remove the radiator.
Seite/page 34/59 Ausgabe/Edition 09/2014
