Umbauanleitung/retrofit instruction 125 MAX Series

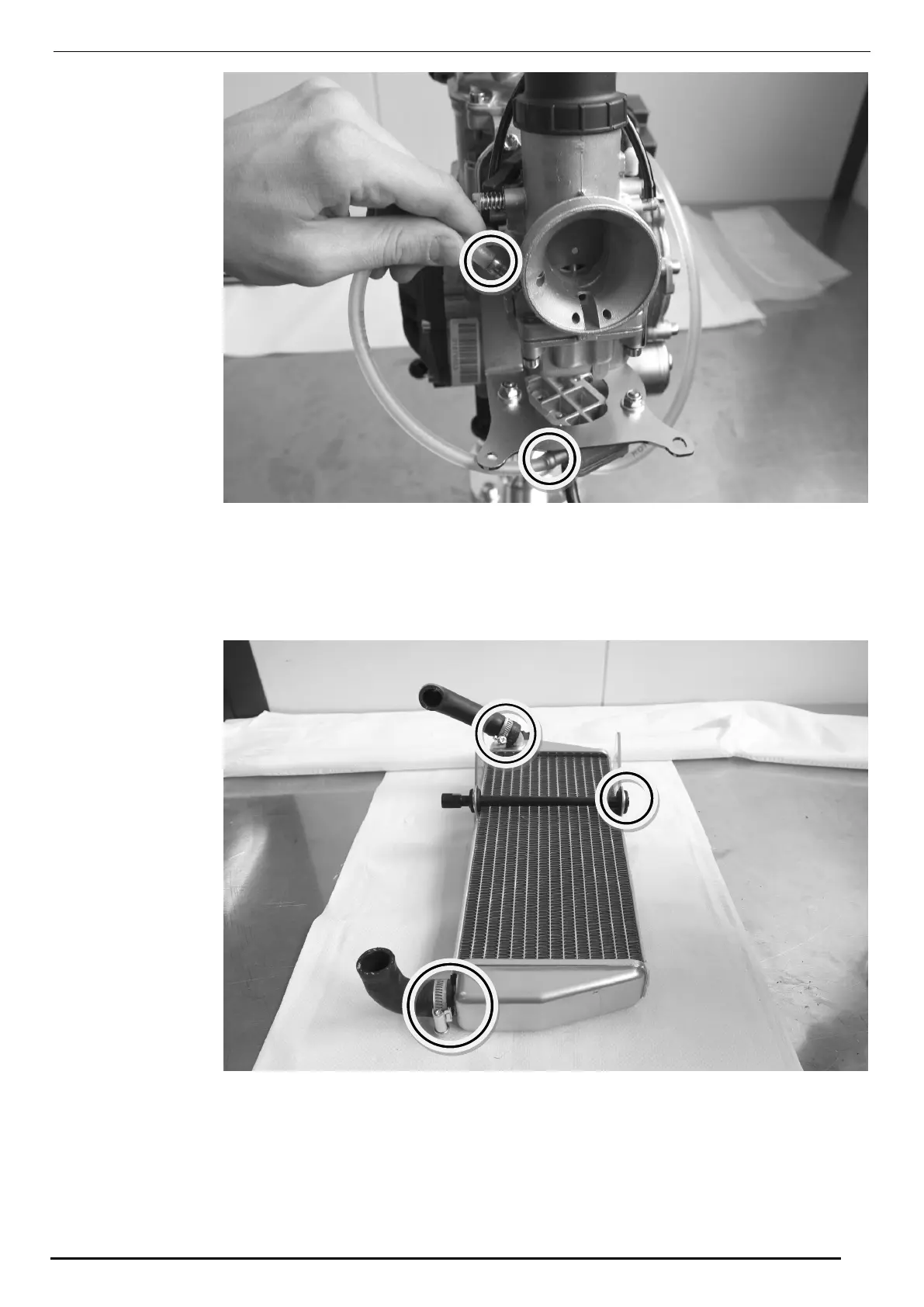

Fig. 45 (K00351)
5.4) INSTALLATION AND CONNECTION OF THE RADIATOR
 Pre-mount radiator with coolant hoses and radiator support as shown in Fig. 46.
Fig. 46 (K00352)
 Attach the pre-assembled radiator to the engine as shown in Fig. 47.
Seite/page 55/59 Ausgabe/Edition 09/2014
