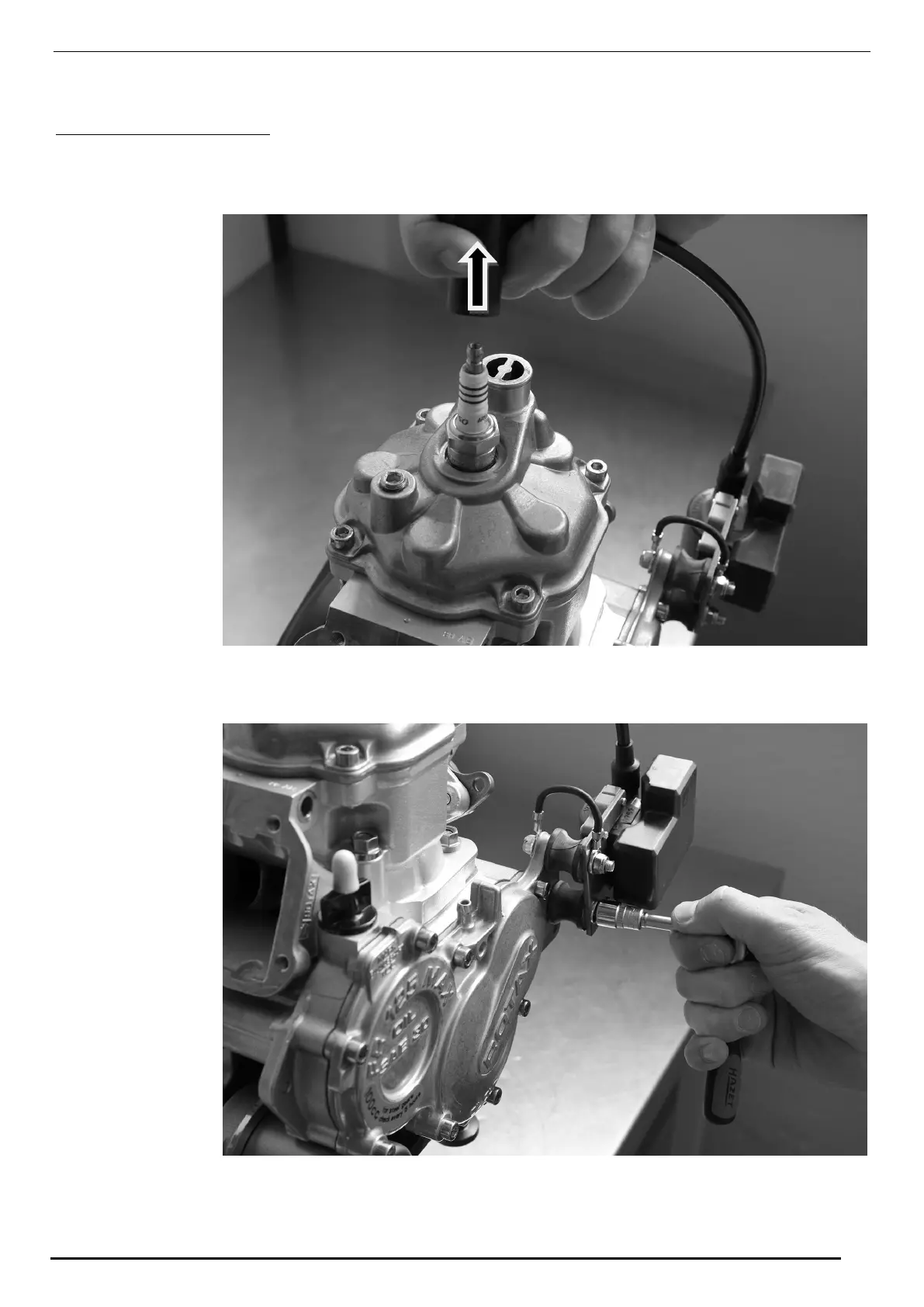

Umbauanleitung/retrofit instruction 125 MAX Series
4.3) REMOVAL OF IGNITION SYSTEM
4.3.1) Dismantle ignition coil
Remove spark plug connector.
Fig. 15 (K00317)
Loosen 2 hex. nuts M8 on the ignition coil carrier.
Fig. 16 (K00318)
Seite/page 40/59
Ausgabe/Edition 09/2014
