Rotax 125 Max - Cylinder System Description

Umbauanleitung/retrofit instruction 125 MAX Series
5.3) INSTALLATION AND CONNECTION OF THE CARBURETOR
5.3.1) Reed valve assy.
 Install reed valve assy. with gasket.

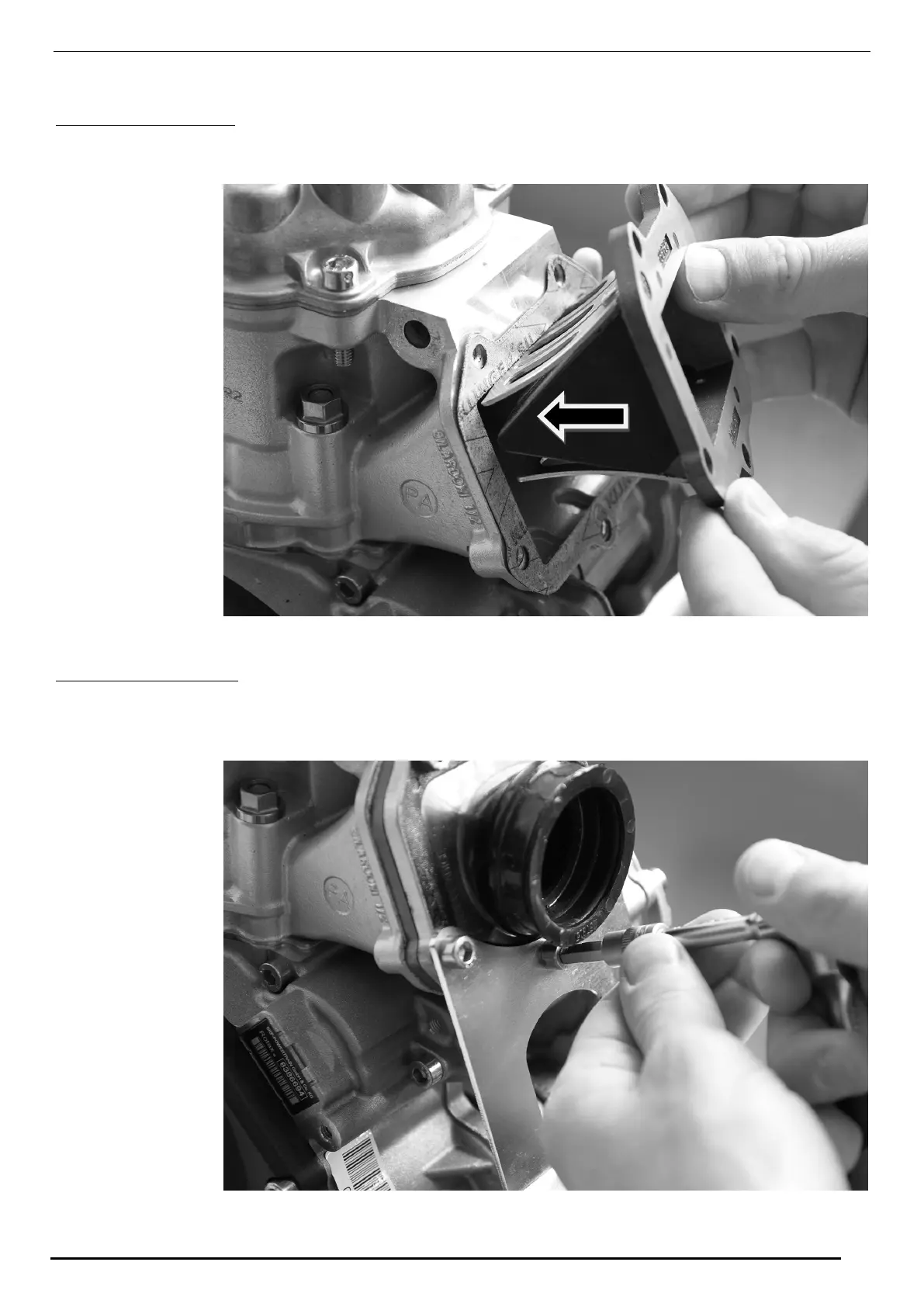

Fig. 41 (K00316)
5.3.2) Carburetor flange
 Tighten carburetor flange and fuel pump support crosswise using M6 Allen screws.
Tightening torque 10 Nm (90 in.lb)
Fig. 42 (K00314)
