Rotax 125 Max - ENGINE AND GEARBOX

Umbauanleitung/retrofit instruction 125 MAX Series

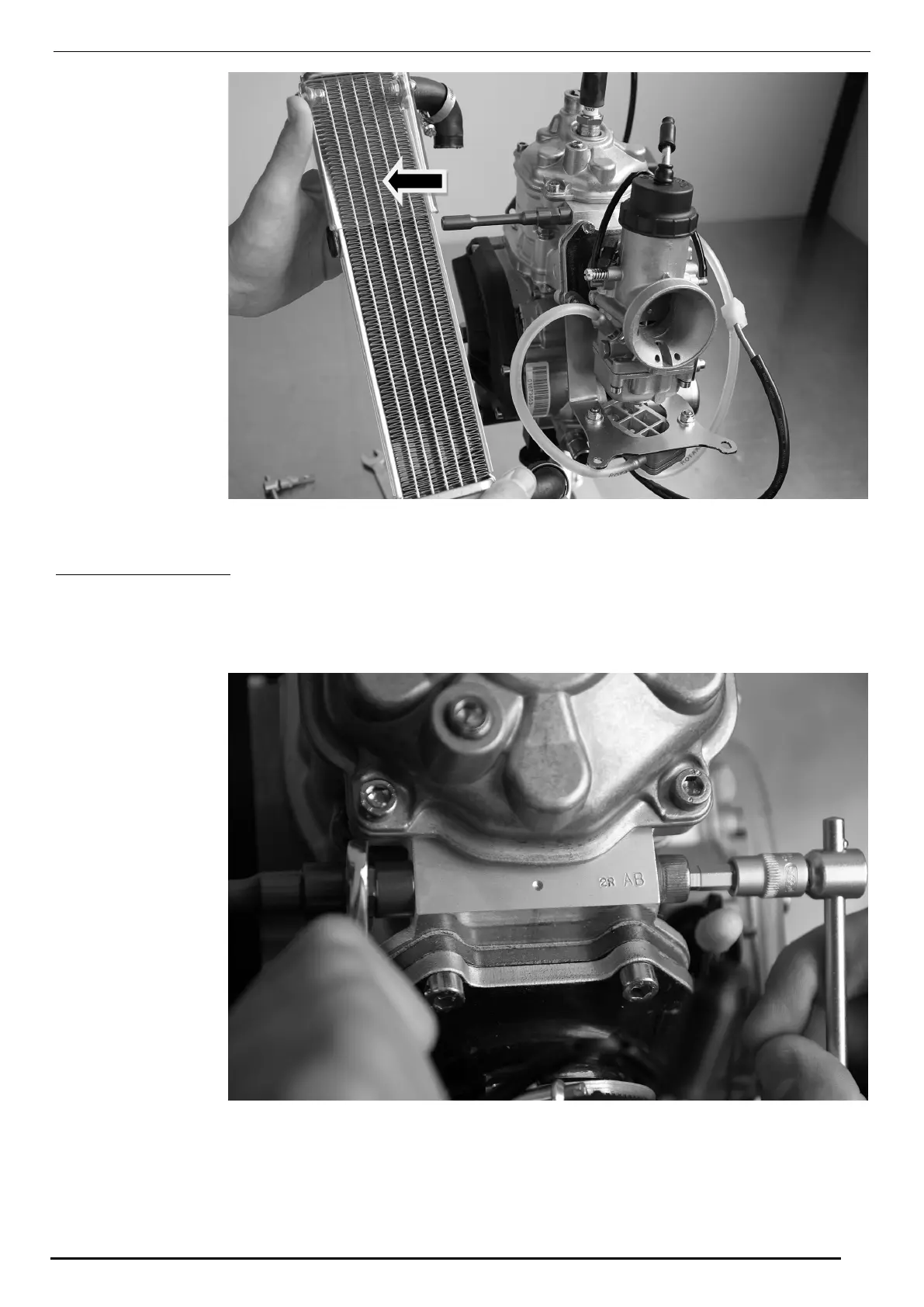

Fig. 6 (K00307)
4.1.3) Radiator bracket
 Counter radiator bracket with open-end wrench (SW13) and loosen the Allen screw M8.
 Remove the radiator bracket.
Fig. 7 (K00308)
Seite/page 35/59 Ausgabe/Edition 09/2014
